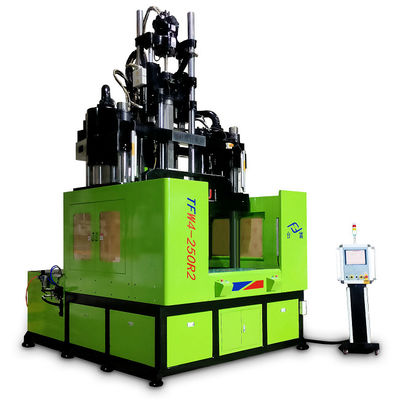

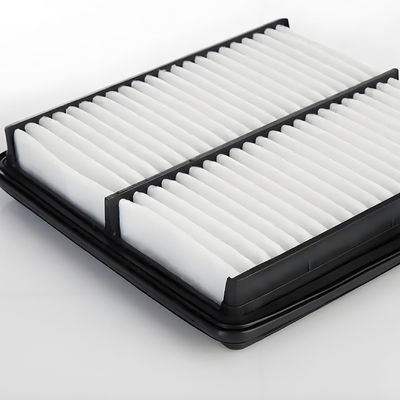

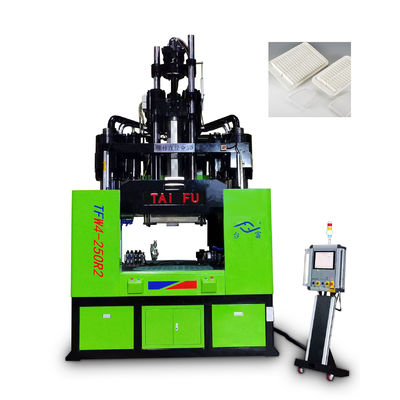

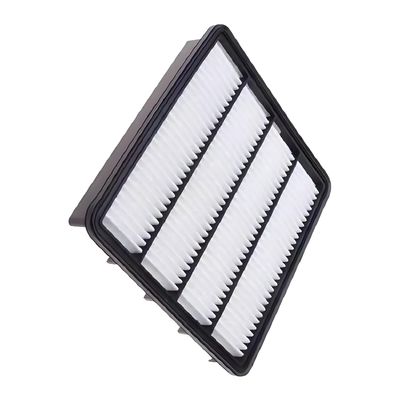

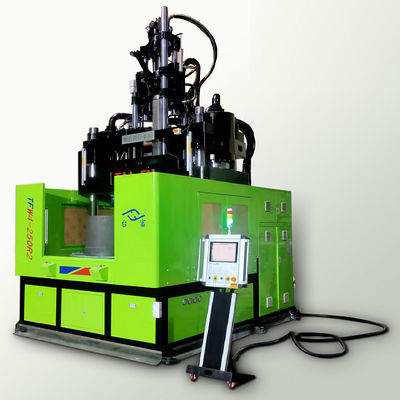

250 Ton Low Workbench Rotary Vertical Injection Molding Machine For Making Filter

250 Ton Low Workbench Rotary Vertical Injection Molding Machine For Making Filter



It is available to customize machines to meet your...



We are a professional manufacturer of vertical injection molding machines with 17 years of manufacturing experience. The standard vertical injection molding machine is one of our main products. The product models include 15-550 tons, and the injection volume can be from 3 grams to 3000 grams.



Vertical mold clamping, vertical injection. After the injection molding is completed, the product push out of the upper template space, making it easier for workers to operate. At the same time, robots and automation can be optionally installed for fully automated production.



We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solution.





ITEMS				UNIT	TFW4-250R2
Injection Unit		Screw stroke		mm	250
		Screw Diameter		mm	60	65	70
		Theoretical Injection Volume		cm3	707	830	962
		Injection Weight(PS)		g	657	772	895
				oz	23.19	27.21	31.56
		Max.Injection Pressure		Mpa	198	169	146
				kgf/cm2	2022	1723	1486
		Screw Speed Rotation		r.p.m	10~240
		Positioning ring diameter		mm	150
Clamping Unit		Clamping Force		KN(ton)	2450(250)
		Clamping Stroke		mm	400
		QTY of Ejector		pcs	5
		Top bar spacing		mm	125
		Ejector Distance		mm	150
		Ejector Force		KN(ton)	45(4.6)
Others		System Pressure		Mpa(kgf/cm2)	13.7(140)
		Oil Tank Capacity		L	800
		Electric Power		KW	37+2.2
		Heater Power		KW	24.3
		Machine Dimensions	L*W*H	m	3.3*2.6*4.4
		Cooling water capacity		L/min	60
		Machine Weight		ton	20.5





























· WHO WE ARE



TAIFU Machinery is a professional manufacturer of vertical injection molding machines integrated with strong capabilities of R&D, manufacturing and services, with more than 15 years manufacturing experience; 100 employees; 15,000 square feet of manufacturing floor spaces and with facility in the Dongguan city, Guangdong province, China. We are certified by ISO9001, CE and patents 20 inventions.

We aims to supply quality products and excellent services to create value for customers on the basis of integrity, innovation, and win-win cooperation. TAIFU Machinery will be your most valuable and reliable partner in business.













We have 15,000 square feet of manufacturing floor space and with facilities in China. All the machines are manufactured by our own employees in our own factory.



• FACTORY AREA







• Machine assembly workshop







• Warehouse





• Finished product machine shop









• PHOTOS OF DIFFERENT EXHIBITIONS







• DELIVERY

We products and delivers more than 2,000 sets of vertical injection molding machines annually. All the machines will be packed well before shipment.











• CUSTOMER SITES

We provide one-stop solutions of plastic injection molding from raw material to automation, trying to create more values for our customers.









For more than 15 years, we have recognized our customers as long-term partners, growing together. Take advantage of this global strength, and grow with us as we grow with you.





• COOPERATIVE CLIENTS





There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.





• WHAT WE DO



There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.



• GROUP PHOTO OF EMPLOYEES







Your Professional Vertical Injection Molding Machine Manufacturer-TAIFU



We are ready to provide a well-built, high-performance products. Contact Us Now!





Q1: Are you a trading company or manufacturer?

A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.



Q2: Packaging and shipping?
The spool is plastic-covered inside and cartoned outside. Or according to your request.



Q3: What are your payment terms?
A:T/T 50% in deposite,50% before departure.



Q4: Do you test all goods before delivery?
Yes, we have 100% testing before delivery

Q5: How about your delivery time?
A:Generally speaking, it will take 20 to 45 days after receiving the advance payment. The specific delivery time depends on regarding your order and quantity.





If you are interested in it, please contact me without hesitation!

---
