120Ton Low Workbench Vertical Rotary Injection Molding Machine With CE Certificate

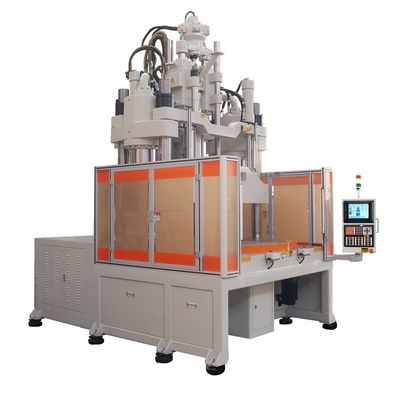

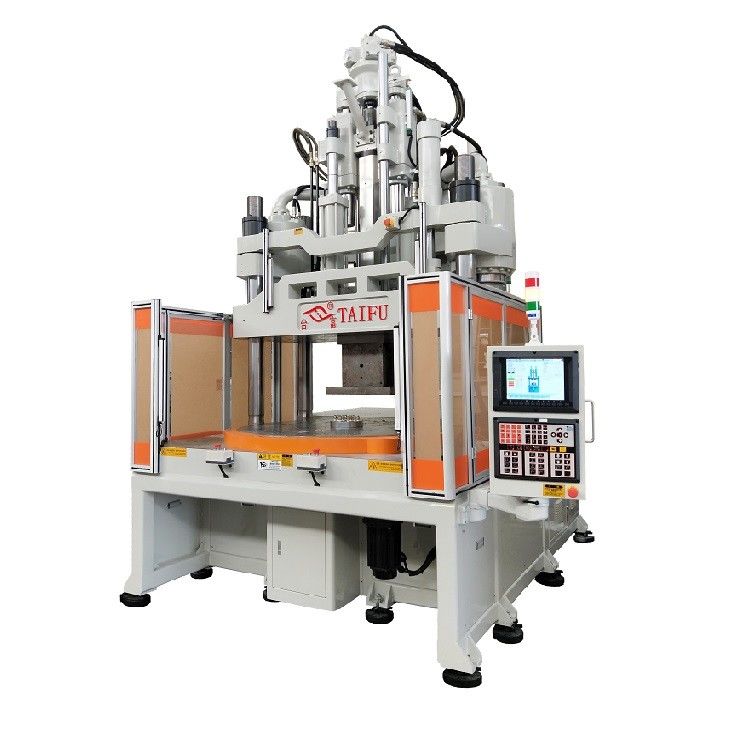

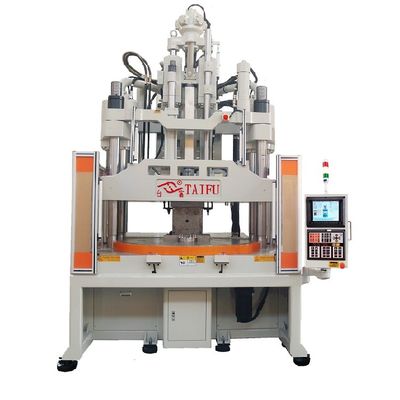

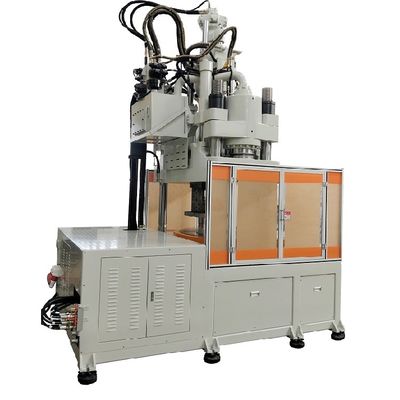

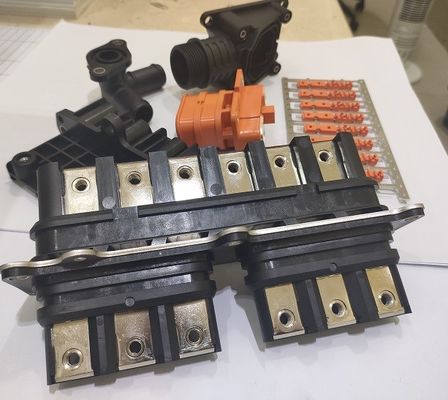

Taifu low station vertical rotary table injection molding machine adopts ergonomic working table, which makes the operation more convenient and safe. The minimum rotary disk diameter is 810mm and the maximum diameter is up to 2300mm. the machine is equipped with a high performance control system, which provides a strong guarantee for high quality injection precision and stability. Vertical rotary table injection molding machine, because of its unique rotatable disc design, can be used in conjunction with the expansion of automation equipment, etc., to achieve high quality and efficient automated production of complex shapes and special products, which is now widely used in the automobile parts and new energy industry.
Specification
Machine Technical Parameters
| ITEM |
UNIT |
TFW4-85R2 |
TFW4-120R2 |
TFW4-160R2 |
| INJECTION UNIT |
| Screw stroke |
mm |
140 |
160 |
200 |
| Screw Diameter |
mm |
32 |
36 |
40 |
36 |
40 |
45 |
45 |
50 |
55 |
| Theoretical Injection Volume |
cm3 |
113 |
143 |
176 |
163 |
201 |
254 |
318 |
393 |
475 |
| Injection Weight(PS) |
g |
105 |
133 |
164 |
151 |
187 |
237 |
296 |
365 |
442 |
| oz |
3.69 |
4.67 |
5.77 |
5.34 |
6.60 |
8.35 |
10.43 |
12.88 |
15.59 |
| Max.Injection Pressure |
Mpa |
228 |
180 |
146 |
222 |
180 |
142 |
218 |
177 |
146 |
| kgf/cm2 |
2331 |
1842 |
1492 |
2269 |
1838 |
1452 |
2226 |
1803 |
1490 |
| Injection Rate |
cm3/s |
100 |
126 |
156 |
128 |
158 |
200 |
167 |
206 |
249 |
| Max Injection Speed |
mm/s |
124 |
126 |
105 |
| Screw Speed Rotation |
r.p.m |
10~280 |
10~280 |
10~280 |
| Positioning ring diameter |
mm |
120 |
120 |
120 |
| Nozzle Out From Platens |
mm |
≥45 |
≥45 |
≥45 |
| CLAMPING UNIT |
| Clamping Force |
KN(ton) |
833(85) |
1176(120) |
1568(160) |
| Clamping Stroke |
mm |
280 |
300 |
350 |
| Min.Mold Thickness |
mm |
230(310) |
280(380) |
300(400) |
| Max.Opening |
mm |
510(590) |
580(680) |
650(750) |
| (L*W)Max.Mould Size |
mm |
360*360/450*320 |
420*420/560*360 |
520*520/700*450 |
| Number of turntable stations |
mm |
2 |
2 |
2 |
| (D) Rotary Table Size |
mm |
φ1010 |
φ1200 |
φ1400 |
| QTY of Ejector |
pcs |
3 |
5 |
5 |
| Top bar spacing |
mm |
80 |
80 |
100 |
| Ejector Distance |
mm |
100 |
100 |
110 |
| Ejector Force |
KN(ton) |
45(4.6) |
45(4.6) |
45(4.6) |
| OTHERS |
| System Pressure |
Mpa(kgf/cm2) |
13.7(140) |
13.7(140) |
13.7(140) |
| Oil Tank Capacity |
L |
350 |
430 |
500 |
| Electric Power |
KW |
15+2.2 |
18+2.2 |
22+2.2 |
| Heater Power |
KW |
7.0 |
10.7 |
13.7 |
| Machine Dimensions |
L*W |
m |
2.5*1.9 |
2.6*2.0 |
2.9*2.2 |
| H(Excluding shock-absorbing feet) |
m |
Min:2.5(Max:2.95) |
Min:2.9(Max:3.6) |
Min:3.3(Max:4.1) |
| Cooling water capacity |
L/min |
40 |
50 |
50 |
| Height of Workbench+(Excluding shock-absorbing feet) |
mm |
780+(70) |
820+(70) |
915+(80) |
| Machine Weight |
ton |
6.5 |
9.5 |
12.8 |
Features
1.servo-driven turntable
The rotary motion of the turntable is performed by a servo motor drive, which realizes high-speed and smooth, steady (low vibration) rotary motion, thereby improving the stability of the forming cycle.
2.Spacious space for mold installation
There is enough space to install molds, and it can also cope well with the use of large molds or the use of slide molds due to the complexity of product shapes.
3.Energy-saving drive systems
The hydraulic system is driven by energy-saving servo motors, which saves energy and electricity, shortens the machine cycle, increases the service life of the equipment, and improves production efficiency.
4.Ultra-low work surfaces
The ergonomically designed ultra-low working table makes it easy to load and unload the mold, put and pick up the parts, reduce the downtime, and effectively improve the production efficiency as well as safety.
