Product Details:
|
| Product Name: | 200 Ton Vertical Rotary Table Injection Molding Machine For Auto Parts Air Filter | Model: | TFV3-200R2 |
|---|---|---|---|
| Application: | Auto Parts Air Filter | Function: | Making Plastic Product |
| Key Selling Points: | High Effiency | Clamping Force: | 200 Ton |
| Warranty: | 1 Year | Color: | White |
| High Light: | 200 Ton rotary table injection molding machine,filter rotary table injection molding machine,Auto Parts vertical injection molding |
||
200 Ton Vertical Rotary Table Injection Molding Machine Used For Auto Parts Air Filter
The vertical rotary injection molding machine, due to its unique rotary table design, can be used in conjunction with extended automation equipment to achieve high-quality and efficient automated production for products with complex shapes and special processes. It has been widely used in the automotive parts and new energy industries.
This type of machine is commonly used for small to medium-sized plastic parts production, such as mobile phone casings, electronic components, auto parts and other precision parts.
1.Specification:
| ITEMS | UNIT | TFV3-200R2 | |||
| INJECTION UNIT | |||||
| Screw stroke | mm | 200 | |||
| Screw Diameter | mm | 55 | 60 | 65 | |
| Theoretical Injection Volume | cm3 | 475 | 565 | 664 | |
| Injection Weight(PS) | g | 442 | 526 | 617 | |
| oz | 15.59 | 18.55 | 21.77 | ||
| Max.Injection Pressure | Mpa | 170 | 143 | 122 | |
| kgf/cm2 | 1738 | 1460 | 1244 | ||
| Injection Rate | cm3/s | 314 | 373 | 438 | |
| Max Injection Speed | mm/s | 132 | |||
| Screw Speed Rotation | r.p.m | 10~240 | |||
| Positioning ring diameter | mm | 150 | |||
| Nozzle Out From Platens | mm | ≥45 | |||
| CLAMPING UNIT | |||||
| Clamping Force | KN(ton) | 1960(200) | |||
| Clamping Stroke | mm | 350 | |||
| Min.Mold Thickness | mm | 350(450) | |||
| Max.Opening | mm | 700(800) | |||
| (L*W)Max.Mould Size | mm | 570*570/800*470 | |||
| Number of turntable stations | mm | 2 | |||
| (D) Rotary Table Size | mm | φ1630 | |||
| QTY of Ejector | pcs | 5 | |||
| Top bar spacing | mm | 125 | |||
| Ejector Distance | mm | 150 | |||
| Ejector Force | KN(ton) | 45(4.6) | |||
| OTHERS | |||||
| System Pressure | Mpa(kgf/cm2) | 13.7(140) | |||
| Oil Tank Capacity | L | 600 | |||
| Electric Power | KW | 31+2.2 | |||
| Heater Power | KW | 13.7 | |||
| Machine Dimensions | L*W | m | 3.5*2.2 | ||
| H(Excluding shock-absorbing feet) | m | Min:4.2(Max:5.2) | |||
| Cooling water capacity | L/min | 60 | |||
| Height of Workbench+(Excluding shock-absorbing feet) | mm | 1600+(80) | |||
| Machine Weight | ton | 15.2 | |||
2. Features:

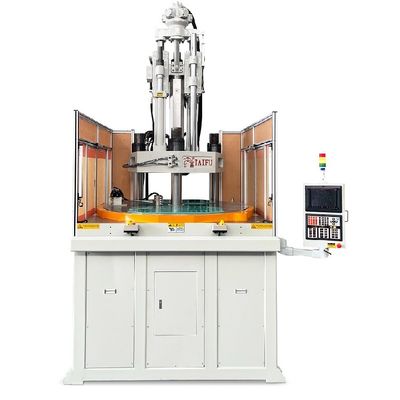

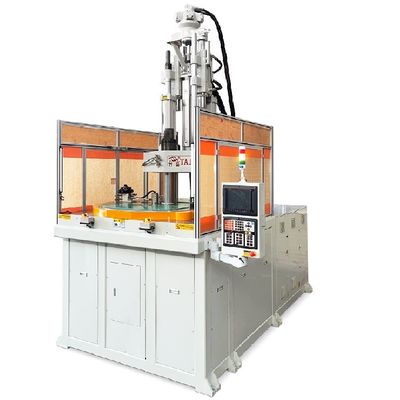

3. Machine Pictures:
4. Applications:
5. Why choose us?
1. Best product quality and most competitive price.
2. Experienced technical personnel in production.
3. Customized design and production.
4. Excellent pre-sales and after-sales services.
6. FAQ:
Q: Do you test all goods before delivery?
Yes, we have 100% testing before delivery
Q: Packaging and shipping?
The spool is plastic-covered inside and cartoned outside. Or according to your request.
Q: How about your delivery time?
Generally speaking, it will take 20 to 45 days after receiving the advance payment. The specific delivery time depends on
Regarding your order and quantity.
Q: What are your payment terms?
T/T 30% deposite,70%before departure.
If you are interested in our machines, please contact me without hesitation!
