Auto Accessories Vertical Injection Molding Machine With Low Work Table 250 Ton
It is available to customize machines to meet your
TAIFU low-station vertical rotary table injection molding machine adopts an ergonomic work surface to make operation more convenient and safer. The minimum diameter of the turntable is 810mm and the maximum diameter is 2300mm.
A vertical injection molding machine with a low work table is a specialized machine used for Auto accessories. It is designed to efficiently produce plastic screwdrivers with precision and accuracy.
The machine is equipped with a high-performance control system to provide a strong guarantee for high-quality injection molding accuracy and stability. It is now widely used in auto parts and new energy industry.
1.Specification:
| |
UNIT |
TFW4-160R2 |
TFW4-200R2 |
TFW4-250R2 |
| Injection Unit |
Screw stroke |
mm |
200 |
200 |
250 |
| Screw Diameter |
mm |
45 |
50 |
55 |
55 |
60 |
65 |
60 |
65 |
70 |
| Theoretical Injection Volume |
cm3 |
318 |
393 |
475 |
475 |
565 |
664 |
707 |
830 |
962 |
| Injection Weight(PS) |
g |
296 |
365 |
442 |
442 |
526 |
617 |
657 |
772 |
895 |
| oz |
10.43 |
12.88 |
15.59 |
15.59 |
18.55 |
21.77 |
23.19 |
27.21 |
31.56 |
| Max.Injection Pressure |
Mpa |
218 |
177 |
146 |
170 |
143 |
122 |
198 |
169 |
146 |
| kgf/cm2 |
2226 |
1803 |
1490 |
1738 |
1460 |
1244 |
2022 |
1723 |
1486 |
| Injection Rate |
cm3/s |
167 |
206 |
249 |
314 |
373 |
438 |
288 |
338 |
393 |
| Max Injection Speed |
mm/s |
105 |
132 |
102 |
| Screw Speed Rotation |
r.p.m |
10~280 |
10~240 |
10~240 |
| Positioning ring diameter |
mm |
120 |
150 |
150 |
| Nozzle Out From Platens |
mm |
≥45 |
≥45 |
≥45 |
| Clamping Unit |
Clamping Force |
KN(ton) |
1568(160) |
1960(200) |
2450(250) |
| Clamping Stroke |
mm |
350 |
350 |
400 |
| Min.Mold Thickness |
mm |
300(400) |
350(450) |
350(450) |
| Max.Opening |
mm |
650(750) |
700(800) |
750(850) |
| (L*W)Max.Mould Size |
mm |
520*520/700*450 |
570*570/800*470 |
670*670/860*570 |
| Number of turntable stations |
mm |
2 |
2 |
2 |
| (D) Rotary Table Size |
mm |
φ1400 |
φ1630 |
φ1800 |
| QTY of Ejector |
pcs |
5 |
5 |
5 |
| Top bar spacing |
mm |
100 |
125 |
125 |
| Ejector Distance |
mm |
110 |
150 |
150 |
| Ejector Force |
KN(ton) |
45(4.6) |
45(4.6) |
45(4.6) |
| Others |
System Pressure |
Mpa(kgf/cm2) |
13.7(140) |
13.7(140) |
13.7(140) |
| Oil Tank Capacity |
L |
500 |
650 |
800 |
| Electric Power |
KW |
22+2.2 |
31+2.2 |
37+2.2 |
| Heater Power |
KW |
13.7 |
13.7 |
24.3 |
| Machine Dimensions |
L*W*H |
m |
2.9*2.2*3.3 |
3.0*2.4*3.7 |
3.3*2.6*4.4 |
| Cooling water capacity |
L/min |
50 |
60 |
60 |
| Work Table Height |
mm |
915+(80) |
935+(80) |
935+(80) |
| Machine Weight |
ton |
12.8 |
16.5 |
20.5 |
2. Features:
- Based on the European formwork design concept, the formwork lock stress analysis benchmark is improved, and the formwork rigidity is better
- The Gorin Pillar is made of high-quality alloy steel 40Cr, which is high-strength and fatigue-resistant.
- The modular injection platform combination design can flexibly match different injection platforms according to different product process requirements. Combined with a high-performance control system, personalized customization can be achieved.

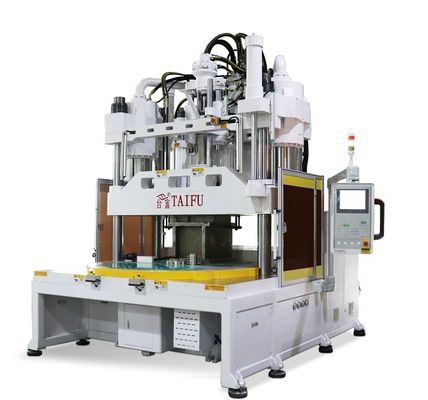

3. Machine Pictures:

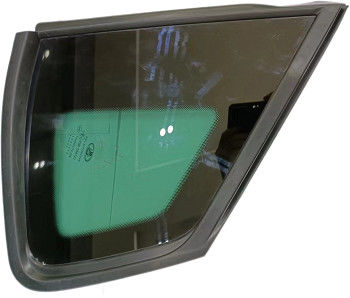

4. Applications:
5. Why choose us?
1. Best product quality and most competitive price.
2. Experienced technical personnel in production.
3. Customized design and production.
4. Excellent pre-sales and after-sales services.
6. FAQ:
Q: Packaging and shipping?
The spool is plastic-covered inside and cartoned outside. Or according to your request.
Q: Do you test all goods before delivery?
Yes, we have 100% testing before delivery
Q: Are you a trading company or manufacturer?
A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.
Q: What are your payment terms?
T/T 30% deposite,70%before departure.
Q: How about your delivery time?
Generally speaking, it will take 20 to 45 days after receiving the advance payment. The specific delivery time depends on
Regarding your order and quantity.
If you are interested in our machines, please do not hesitate to CONTACT US!
