Product Details:
|
| Key Selling Points: | High Effiency | Warranty: | 1 Year |
|---|---|---|---|
| Color: | White & Yellow | Application: | Mobile Phone Spare Parts |
| Function: | Making Plastic Product | Product Name: | Mobile Phone Spare Parts Vertical Rotary Table Injection Molding Machine |
| Clamping Force: | 85 Ton | Motor: | Servo Motor |
| Power: | 17.2 KW | Advantage: | Low Work Table |
| High Light: | Rotary Table Vertical injection Moulding machine,Mobile Phone Injection Molding Machine,Low Work Table vertical injection |
||

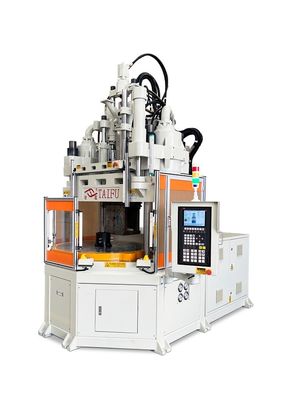

85 Ton Mobile Phone Spare Parts Vertical Rotary Table Injection Molding Machine
TAIFU low-station vertical rotary table injection molding machine adopts an ergonomic work surface to make operation more convenient and safer. The minimum diameter of the turntable is 810mm and the maximum diameter is 2300mm.
The machine is equipped with a high-performance control system to provide a strong guarantee for high-quality injection molding accuracy and stability. Because of its unique rotatable disc design, the vertical turntable injection molding machine can be used with expanded automation equipment to achieve high-quality and efficient automated production of products with complex shapes and special processes. It is now widely used in auto parts and new energy industry.
1.Specification:
| UNIT | TFW4-85R2 | TFW4-120R2 | TFW4-160R2 | ||||||||||
| Injection Unit | Screw stroke | mm | 140 | 160 | 200 | ||||||||
| Screw Diameter | mm | 32 | 36 | 40 | 36 | 40 | 45 | 45 | 50 | 55 | |||
| Theoretical Injection Volume | cm3 | 113 | 143 | 176 | 163 | 201 | 254 | 318 | 393 | 475 | |||
| Injection Weight(PS) | g | 105 | 133 | 164 | 151 | 187 | 237 | 296 | 365 | 442 | |||
| oz | 3.69 | 4.67 | 5.77 | 5.34 | 6.60 | 8.35 | 10.43 | 12.88 | 15.59 | ||||
| Max.Injection Pressure | Mpa | 228 | 180 | 146 | 222 | 180 | 142 | 218 | 177 | 146 | |||
| kgf/cm2 | 2331 | 1842 | 1492 | 2269 | 1838 | 1452 | 2226 | 1803 | 1490 | ||||
| Injection Rate | cm3/s | 100 | 126 | 156 | 128 | 158 | 200 | 167 | 206 | 249 | |||
| Max Injection Speed | mm/s | 124 | 126 | 105 | |||||||||
| Screw Speed Rotation | r.p.m | 10~280 | 10~280 | 10~280 | |||||||||
| Positioning ring diameter | mm | 120 | 120 | 120 | |||||||||
| Nozzle Out From Platens | mm | ≥45 | ≥45 | ≥45 | |||||||||
| Clamping Unit | Clamping Force | KN(ton) | 833(85) | 1176(120) | 1568(160) | ||||||||
| Clamping Stroke | mm | 280 | 300 | 350 | |||||||||
| Min.Mold Thickness | mm | 230(310) | 280(380) | 300(400) | |||||||||
| Max.Opening | mm | 510(590) | 580(680) | 650(750) | |||||||||
| (L*W)Max.Mould Size | mm | 360*360/450*320 | 420*420/560*360 | 520*520/700*450 | |||||||||
| Number of turntable stations | mm | 2 | 2 | 2 | |||||||||
| (D) Rotary Table Size | mm | φ1010 | φ1200 | φ1400 | |||||||||
| Quality of Ejector | pcs | 3 | 5 | 5 | |||||||||
| Top bar spacing | mm | 80 | 80 | 100 | |||||||||
| Ejector Distance | mm | 100 | 100 | 110 | |||||||||
| Ejector Force | KN(ton) | 45(4.6) | 45(4.6) | 45(4.6) | |||||||||
| Others | System Pressure | Mpa(kgf/cm2) | 13.7(140) | 13.7(140) | 13.7(140) | ||||||||
| Oil Tank Capacity | L | 350 | 430 | 500 | |||||||||
| Electric Power | KW | 15+2.2 | 18+2.2 | 22+2.2 | |||||||||
| Heater Power | KW | 7.0 | 10.7 | 13.7 | |||||||||
| Machine Dimensions | L*W*H | m | 2.5*1.9*2.5 | 2.6*2.0*2.9 | 2.9*2.2*3.3 | ||||||||
| Cooling water capacity | L/min | 40 | 50 | 50 | |||||||||
| Work Table Height | mm | 780+(70) | 820+(70) | 915+(80) | |||||||||
| Machine Weight | ton | 6.5 | 9.5 | 12.8 | |||||||||
2. Features:

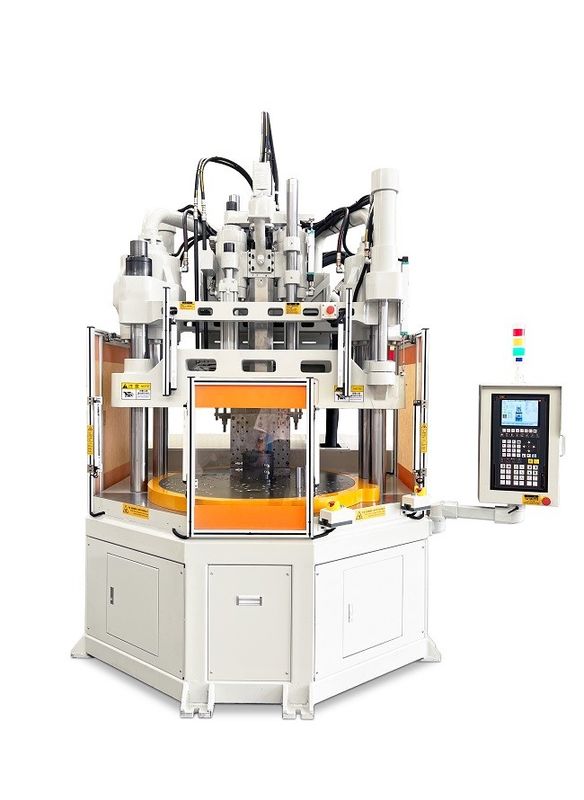

3. Machine Pictures:

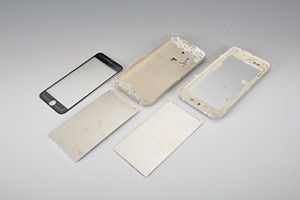

4. Applications:
5. Why choose us?
1. Best product quality and most competitive price.
2. Experienced technical personnel in production.
3. Customized design and production.
4. Excellent pre-sales and after-sales services.
6. FAQ:
Q: How do you calculate tonnage for injection molding?
A: Tonnage = Volume * Maximum Safety Pressure
Therefore, it is always best to consult with an experienced injection molders to determine the exact tonnage in injection required for a specific application. Normally, 5 tons per square inch is used for calculating the clamping tonnage for any given mould.
Q: Do you test all goods before delivery?
Yes, we have 100% testing before delivery
Q: How about your delivery time?
Generally speaking, it will take 20 to 45 days after receiving the advance payment. The specific delivery time depends on
Regarding your order and quantity.
Q: Packaging and shipping?
The spool is plastic-covered inside and cartoned outside. Or according to your request.
Q: What are your payment terms?
T/T 30% deposite,70%before departure.
If you are interested in our machines, please do not hesitate to CONTACT US!
