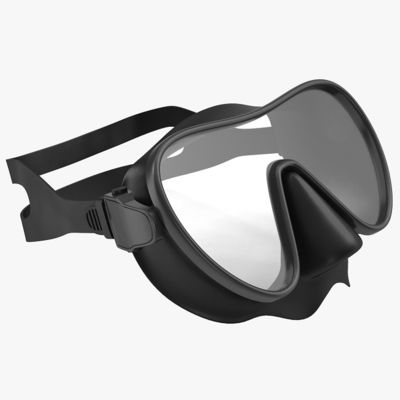

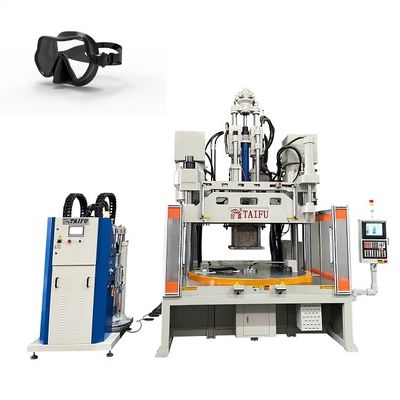

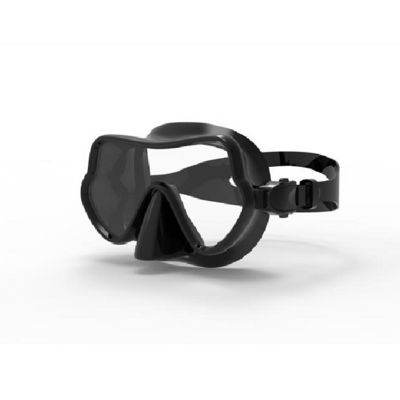

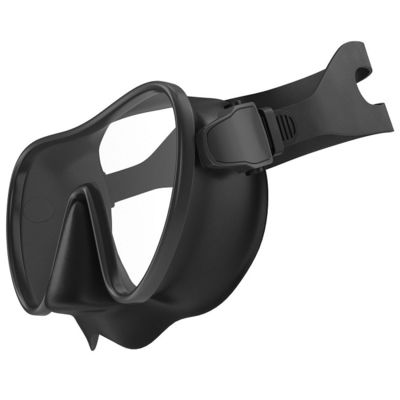

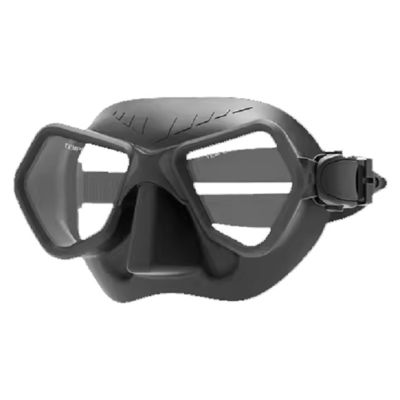

Low Work Table Vertical 300 Ton Silicone Injection Molding Machine For Daving Mask

300 Ton Auto Accessories Headlights Making Vertical Injection Molding Machine With Low Work Table



It is available to customize machines to meet your



TAIFU low-station vertical rotary table injection molding machine adopts an ergonomic work surface to make operation more convenient and safer. The minimum diameter of the turntable is 810mm and the maximum diameter is 2300mm.



A vertical injection molding machine with a low work table is a specialized machine used for home appliance accessories. It is designed to efficiently produce plastic screwdrivers with precision and accuracy.



The machine is equipped with a high-performance control system to provide a strong guarantee for high-quality injection molding accuracy and stability.  It is now widely used in auto parts and new energy industry.





1.Specification:



Part                                                   MODEL		UNIT	TFW4-300R2-LSR
INJECTION UNIT
Screw stroke		mm	250
Screw Diameter		mm	65	70	75
Theoretical Injection Volume		cm3	830	962	1104
Injection Weight(PS)		g	772	895	1027
		oz	27.21	31.56	36.23
Max.Injection Pressure		Mpa	212	183	159
		kgf/cm2	2160	1863	1622
Screw Speed Rotation		r.p.m	10~180
Positioning ring diameter		mm	150
CLAMPING UNIT
Clamping Force		KN(ton)	2940(300)
QTY of Ejector		pcs	5
Ejector Distance		mm	150
Ejector Force		KN(ton)	68.9(7.0)
OTHERS
System Pressure		Mpa(kgf/cm2)	17.2(175)
Oil Tank Capacity		L	820
Electric Power		KW	45+2.2
Heater Power		KW	24.3
Machine Dimensions	L*W	m	3.3*2.6
	H	m	Min:4.6(Max:5.1)
Machine Weight		ton	23.7





2. Features:



• For engineering plastics with different characteristics, special screw barrels are provided to ensure the quality of product molding.
• Excellent injection accuracy, the repeatability of the injection end position can reach ±0.1mm, and the repeatability of the product weight can reach 3%.
• The modular injection platform combination design can flexibly match different injection platforms according to different product process requirements. Combined with a high-performance control system, personalized customization can be achieved.

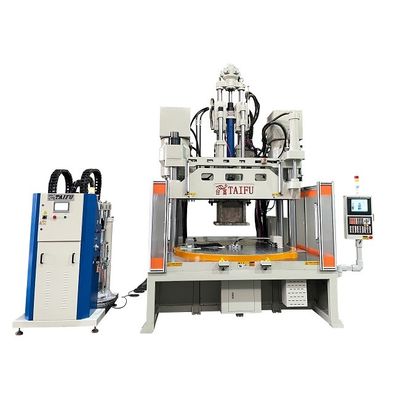

3. Machine Pictures:



4. Applications:

· WHO WE ARE



TAIFU Machinery is a professional manufacturer of vertical injection molding machines integrated with strong capabilities of R&D, manufacturing and services, with more than 15 years manufacturing experience; 100 employees; 15,000 square feet of manufacturing floor spaces and with facility in the Dongguan city, Guangdong province, China. We are certified by ISO9001, CE and patents 20 inventions.

We aims to supply quality products and excellent services to create value for customers on the basis of integrity, innovation, and win-win cooperation. TAIFU Machinery will be your most valuable and reliable partner in business.













We have 15,000 square feet of manufacturing floor space and with facilities in China. All the machines are manufactured by our own employees in our own factory.



• FACTORY AREA







• Machine assembly workshop







• Warehouse





• Finished product machine shop









• PHOTOS OF DIFFERENT EXHIBITIONS







• DELIVERY

We products and delivers more than 2,000 sets of vertical injection molding machines annually. All the machines will be packed well before shipment.











• CUSTOMER SITES

We provide one-stop solutions of plastic injection molding from raw material to automation, trying to create more values for our customers.









For more than 15 years, we have recognized our customers as long-term partners, growing together. Take advantage of this global strength, and grow with us as we grow with you.





• COOPERATIVE CLIENTS





There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.





• WHAT WE DO



There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.



• GROUP PHOTO OF EMPLOYEES







Your Professional Vertical Injection Molding Machine Manufacturer-TAIFU



We are ready to provide a well-built, high-performance products. Contact Us Now!






5. Why choose us?
1. Best product quality and most competitive price.
2. Experienced technical personnel in production.
3. Customized design and production.
4. Excellent pre-sales and after-sales services.

6. FAQ:



Q: Packaging and shipping?
The spool is plastic-covered inside and cartoned outside. Or according to your request.



Q: Are you a trading company or manufacturer?

A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.



Q: Do you test all goods before delivery?
Yes, we have 100% testing before delivery



Q: How about your delivery time?
Generally speaking, it will take 20 to 45 days after receiving the advance payment. The specific delivery time depends on
Regarding your order and quantity.



Q: What are your payment terms?
T/T 30% deposite,70%before departure.
