120 Ton Low Work Table Vertical Injection Molding Machine For Plastics Socket

120 Ton Low Work Table Vertical Injection Molding Machine For Plastics Socket
120 Ton Low Work Table Vertical Injection Molding Machine For Plastics Socket 120 Ton Low Work Table Vertical Injection Molding Machine For Plastics Socket

Large Image :  120 Ton Low Work Table Vertical Injection Molding Machine For Plastics Socket

Product Details:
Place of Origin: Dongguan, China
Brand Name: TAIFU
Certification: ISO9001,CE
Model Number: TFW4-120R2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: All the machines are fixed and well packaged in the plywood cases.
Delivery Time: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 210 sets/month
Contact Now

120 Ton Low Work Table Vertical Injection Molding Machine For Plastics Socket

Description
Product Name: 120 Ton Low Work Table Vertical Injection Molding Machine For Plastics Socket Model: TFW4-120R2
Function: Making Plastic Product Application: Plastics Socket
Clamping Force: 85 Ton-1800 Ton Key Selling Point: Easy To Operate
Warranty: 1 Year After-sales Service: Provide
Highlight:

120 Ton Vertical Injection Molding Machine

,

Plastics Socket Vertical Injection Molding Machine

,

Low Work Table vertical molding machine

120 Ton Low Work Table Vertical Injection Molding Machine For Plastics Socket



We are a professional manufacturer of vertical injection molding machines with 17 years of manufacturing experience. The low workbench vertical injection molding machine is one of our main products. The product models include 15-550 tons, and the injection volume can be from 3 grams to 3000 grams.



Vertical mold clamping, vertical injection. After the injection molding is completed, the product push out of the upper template space, making it easier for workers to operate. At the same time, robots and automation can be optionally installed for fully automated production.



We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solution.



1.Specification:


  UNIT TFW4-85R2 TFW4-120R2 TFW4-160R2
Injection Unit Screw stroke mm 140 160 200
Screw Diameter mm 32 36 40 36 40 45 45 50 55
Theoretical Injection Volume cm3 113 143 176 163 201 254 318 393 475
Injection Weight(PS) g 105 133 164 151 187 237 296 365 442
oz 3.69 4.67 5.77 5.34 6.60 8.35 10.43 12.88 15.59
Max.Injection Pressure Mpa 228 180 146 222 180 142 218 177 146
kgf/cm2 2331 1842 1492 2269 1838 1452 2226 1803 1490
Injection Rate cm3/s 100 126 156 128 158 200 167 206 249
Max Injection Speed mm/s 124 126 105
Screw Speed Rotation r.p.m 10~280 10~280 10~280
Positioning ring diameter mm 120 120 120
Nozzle Out From Platens mm ≥45 ≥45 ≥45
Clamping Unit Clamping Force KN(ton) 833(85) 1176(120) 1568(160)
Clamping Stroke mm 280 300 350
Min.Mold Thickness mm 230(310) 280(380) 300(400)
Max.Opening mm 510(590) 580(680) 650(750)
(L*W)Max.Mould Size mm 360*360/450*320 420*420/560*360 520*520/700*450
Number of turntable stations mm 2 2 2
(D) Rotary Table Size mm φ1010 φ1200 φ1400
Quality of Ejector pcs 3 5 5
Top bar spacing mm 80 80 100
Ejector Distance mm 100 100 110
Ejector Force KN(ton) 45(4.6) 45(4.6) 45(4.6)
Others System Pressure Mpa(kgf/cm2) 13.7(140) 13.7(140) 13.7(140)
Oil Tank Capacity L 350 430 500
Electric Power KW 15+2.2 18+2.2 22+2.2
Heater Power KW 7.0 10.7 13.7
Machine Dimensions L*W*H m 2.5*1.9*2.5 2.6*2.0*2.9 2.9*2.2*3.3
Cooling water capacity L/min 40 50 50
Work Table Height mm 780+(70) 820+(70) 915+(80)
Machine Weight ton 6.5 9.5 12.8




2.Features:

  • The overall height of the machine is 25-30% lower than that of traditional tonnage
  • Suitable for integration with robotic automation production lines
  • R3 three station/R4 four station models can be selected as needed

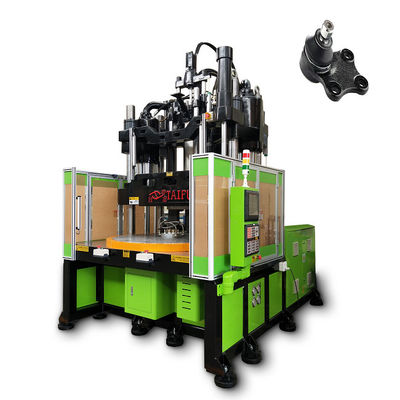

3.Machine Pictures:

120 Ton Low Work Table Vertical Injection Molding Machine For Plastics Socket 0

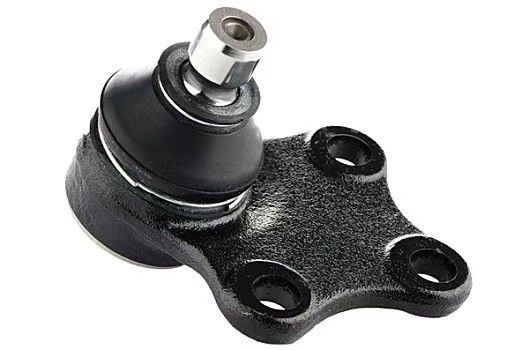

4.Application:

120 Ton Low Work Table Vertical Injection Molding Machine For Plastics Socket 1





Q1: Are you a trading company or manufacturer?

A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.



Q2: Packaging and shipping?
The spool is plastic-covered inside and cartoned outside. Or according to your request.



Q3: What are your payment terms?
A:T/T 50% in deposite,50% before departure.



Q4: Do you test all goods before delivery?
Yes, we have 100% testing before delivery


Q5: How about your delivery time?
A:Generally speaking, it will take 20 to 45 days after receiving the advance payment. The specific delivery time depends on
Regarding your order and quantity.





If you are interested in it, please contact me without hesitation!
