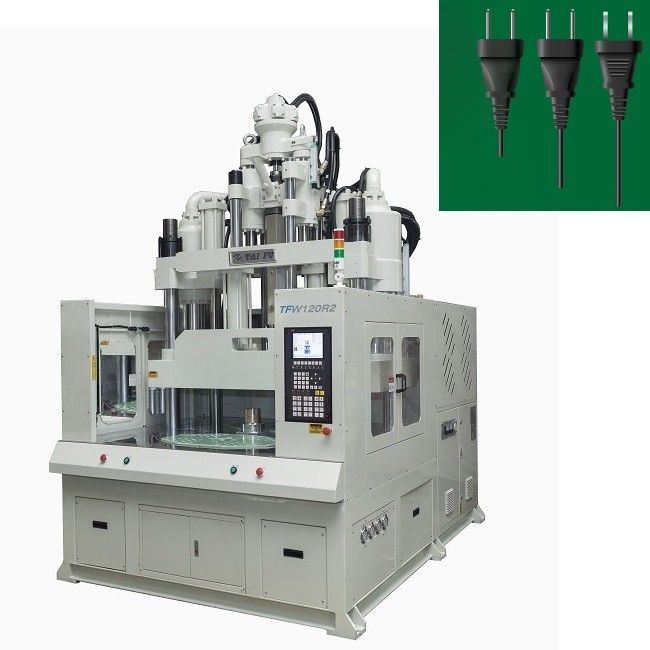

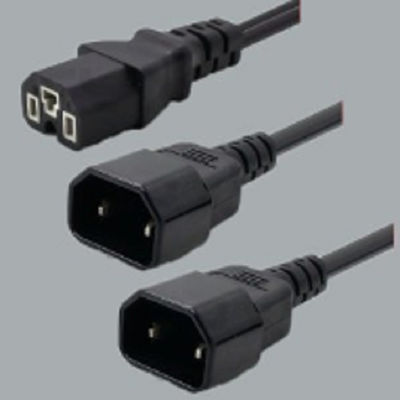

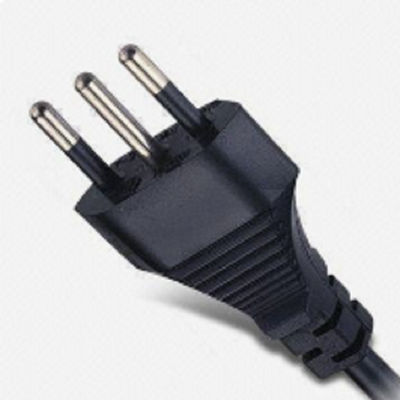

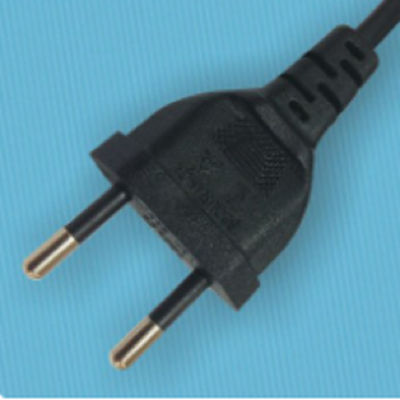

120 Ton Vertical Rotary Table Injection Molding Machine For Power Plug Housing
TAIFU low-station vertical rotary table injection molding machine adopts an ergonomic work surface to make operation more convenient and safer. The minimum diameter of the turntable is 810mm and the maximum diameter is 2300mm.
The operation of the 120-ton vertical rotary table injection molding machine involves several steps. First, the molten material is prepared by melting the appropriate material, such as plastic or rubber. The mold is loaded onto the rotary table, and the clamping system secures it in place. The injection unit injects the molten material into the mold cavity as the rotary table rotates, allowing multiple cavities to be filled. Once the material has cooled and solidified within the mold, the mold opens, and the finished home appliance accessories are ejected.
The machine is equipped with a high-performance control system to provide a strong guarantee for high-quality injection molding accuracy and stability, positioning with positioning cylinder, with high positioning accuracy and high safety performance. The mold cannot be closed if it is not positioned, which protects the normal use of the mold. Because of its unique rotatable disc design, the vertical turntable injection molding machine can be used with expanded automation equipment to achieve high-quality and efficient automated production of products with complex shapes and special processes. The power part can be selected from hydraulic motors and servo motors, or can also be equipped with higher configurations according to customer products and requirements. It is now widely used in auto parts and new energy industry.
1.Specification:
| |
UNIT |
TFW4-85R2 |
TFW4-120R2 |
TFW4-160R2 |
| Injection Unit |
Screw stroke |
mm |
140 |
160 |
200 |
| Screw Diameter |
mm |
32 |
36 |
40 |
36 |
40 |
45 |
45 |
50 |
55 |
| Theoretical Injection Volume |
cm3 |
113 |
143 |
176 |
163 |
201 |
254 |
318 |
393 |
475 |
| Injection Weight(PS) |
g |
105 |
133 |
164 |
151 |
187 |
237 |
296 |
365 |
442 |
| oz |
3.69 |
4.67 |
5.77 |
5.34 |
6.60 |
8.35 |
10.43 |
12.88 |
15.59 |
| Max.Injection Pressure |
Mpa |
228 |
180 |
146 |
222 |
180 |
142 |
218 |
177 |
146 |
| kgf/cm2 |
2331 |
1842 |
1492 |
2269 |
1838 |
1452 |
2226 |
1803 |
1490 |
| Injection Rate |
cm3/s |
100 |
126 |
156 |
128 |
158 |
200 |
167 |
206 |
249 |
| Max Injection Speed |
mm/s |
124 |
126 |
105 |
| Screw Speed Rotation |
r.p.m |
10~280 |
10~280 |
10~280 |
| Positioning ring diameter |
mm |
120 |
120 |
120 |
| Nozzle Out From Platens |
mm |
≥45 |
≥45 |
≥45 |
| Clamping Unit |
Clamping Force |
KN(ton) |
833(85) |
1176(120) |
1568(160) |
| Clamping Stroke |
mm |
280 |
300 |
350 |
| Min.Mold Thickness |
mm |
230(310) |
280(380) |
300(400) |
| Max.Opening |
mm |
510(590) |
580(680) |
650(750) |
| (L*W)Max.Mould Size |
mm |
360*360/450*320 |
420*420/560*360 |
520*520/700*450 |
| Number of turntable stations |
mm |
2 |
2 |
2 |
| (D) Rotary Table Size |
mm |
φ1010 |
φ1200 |
φ1400 |
| Quality of Ejector |
pcs |
3 |
5 |
5 |
| Top bar spacing |
mm |
80 |
80 |
100 |
| Ejector Distance |
mm |
100 |
100 |
110 |
| Ejector Force |
KN(ton) |
45(4.6) |
45(4.6) |
45(4.6) |
| Others |
System Pressure |
Mpa(kgf/cm2) |
13.7(140) |
13.7(140) |
13.7(140) |
| Oil Tank Capacity |
L |
350 |
430 |
500 |
| Electric Power |
KW |
15+2.2 |
18+2.2 |
22+2.2 |
| Heater Power |
KW |
7.0 |
10.7 |
13.7 |
| Machine Dimensions |
L*W*H |
m |
2.5*1.9*2.5 |
2.6*2.0*2.9 |
2.9*2.2*3.3 |
| Cooling water capacity |
L/min |
40 |
50 |
50 |
| Work Table Height |
mm |
780+(70) |
820+(70) |
915+(80) |
| Machine Weight |
ton |
6.5 |
9.5 |
12.8 |
