300 Ton Auto Accessories Headlights Making Vertical Injection Molding Machine With Low Work Table
It is available to customize machines to meet your
TAIFU low-station vertical rotary table injection molding machine adopts an ergonomic work surface to make operation more convenient and safer. The minimum diameter of the turntable is 810mm and the maximum diameter is 2300mm.
A vertical injection molding machine with a low work table is a specialized machine used for home appliance accessories. It is designed to efficiently produce plastic screwdrivers with precision and accuracy.
The machine is equipped with a high-performance control system to provide a strong guarantee for high-quality injection molding accuracy and stability. It is now widely used in auto parts and new energy industry.
1.Specification:
| Part MODEL |
UNIT |
TFW4-300R2 |
| INJECTION UNIT |
| Screw stroke |
mm |
250 |
| Screw Diameter |
mm |
65 |
70 |
75 |
| Theoretical Injection Volume |
cm3 |
830 |
962 |
1104 |
| Injection Weight(PS) |
g |
772 |
895 |
1027 |
| oz |
27.21 |
31.56 |
36.23 |
| Max.Injection Pressure |
Mpa |
212 |
183 |
159 |
| kgf/cm2 |
2160 |
1863 |
1622 |
| Screw Speed Rotation |
r.p.m |
10~180 |
| Positioning ring diameter |
mm |
150 |
| CLAMPING UNIT |
| Clamping Force |
KN(ton) |
2940(300) |
| QTY of Ejector |
pcs |
5 |
| Ejector Distance |
mm |
150 |
| Ejector Force |
KN(ton) |
68.9(7.0) |
| OTHERS |
| System Pressure |
Mpa(kgf/cm2) |
17.2(175) |
| Oil Tank Capacity |
L |
820 |
| Electric Power |
KW |
45+2.2 |
| Heater Power |
KW |
24.3 |
| Machine Dimensions |
L*W |
m |
3.3*2.6 |
| H |
m |
Min:4.6(Max:5.1) |
| Machine Weight |
ton |
23.7 |
2. Features:
- For engineering plastics with different characteristics, special screw barrels are provided to ensure the quality of product molding.
- Excellent injection accuracy, the repeatability of the injection end position can reach ±0.1mm, and the repeatability of the product weight can reach 3%.
- The modular injection platform combination design can flexibly match different injection platforms according to different product process requirements. Combined with a high-performance control system, personalized customization can be achieved.

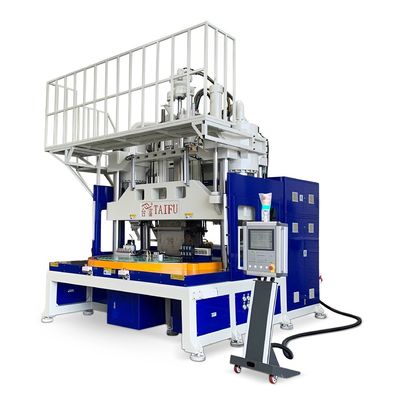

3. Machine Pictures:
4. Applications:
5. Why choose us?
1. Best product quality and most competitive price.
2. Experienced technical personnel in production.
3. Customized design and production.
4. Excellent pre-sales and after-sales services.
6. FAQ:
Q: Packaging and shipping?
The spool is plastic-covered inside and cartoned outside. Or according to your request.
Q: Are you a trading company or manufacturer?
A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.
Q: Do you test all goods before delivery?
Yes, we have 100% testing before delivery
Q: How about your delivery time?
Generally speaking, it will take 20 to 45 days after receiving the advance payment. The specific delivery time depends on
Regarding your order and quantity.
Q: What are your payment terms?
T/T 30% deposite,70%before departure.
If you are interested in our machines, please do not hesitate to CONTACT US!
