250-Ton High-Precision Low Work Table Vertical Injection Molding Machine With Enhanced Stability
The TAIFU low-station vertical rotary table injection molding machine boasts an ergonomic work surface that not only simplifies operations but also enhances operator safety. Its turntable diameter ranges from a compact 810mm to a spacious 2300mm, offering flexibility for various production needs.
Specially tailored for the production of car parts, this vertical injection molding machine with a low work table excels in the precise and accurate manufacturing of plastic screwdrivers. Its high-performance control system ensures consistent injection molding accuracy and stability, guaranteeing top-notch quality.
Widely adopted in the auto parts and new energy industries, this machine is a testament to TAIFU's commitment to innovation and excellence in injection molding technology.
Specification:
| |
UNIT |
TFW4-160R2 |
TFW4-200R2 |
TFW4-250R2 |
| Injection Unit |
Screw stroke |
mm |
200 |
200 |
250 |
| Screw Diameter |
mm |
45 |
50 |
55 |
55 |
60 |
65 |
60 |
65 |
70 |
| Theoretical Injection Volume |
cm3 |
318 |
393 |
475 |
475 |
565 |
664 |
707 |
830 |
962 |
| Injection Weight(PS) |
g |
296 |
365 |
442 |
442 |
526 |
617 |
657 |
772 |
895 |
| oz |
10.43 |
12.88 |
15.59 |
15.59 |
18.55 |
21.77 |
23.19 |
27.21 |
31.56 |
| Max.Injection Pressure |
Mpa |
218 |
177 |
146 |
170 |
143 |
122 |
198 |
169 |
146 |
| kgf/cm2 |
2226 |
1803 |
1490 |
1738 |
1460 |
1244 |
2022 |
1723 |
1486 |
| Injection Rate |
cm3/s |
167 |
206 |
249 |
314 |
373 |
438 |
288 |
338 |
393 |
| Max Injection Speed |
mm/s |
105 |
132 |
102 |
| Screw Speed Rotation |
r.p.m |
10~280 |
10~240 |
10~240 |
| Positioning ring diameter |
mm |
120 |
150 |
150 |
| Nozzle Out From Platens |
mm |
≥45 |
≥45 |
≥45 |
| Clamping Unit |
Clamping Force |
KN(ton) |
1568(160) |
1960(200) |
2450(250) |
| Clamping Stroke |
mm |
350 |
350 |
400 |
| Min.Mold Thickness |
mm |
300(400) |
350(450) |
350(450) |
| Max.Opening |
mm |
650(750) |
700(800) |
750(850) |
| (L*W)Max.Mould Size |
mm |
520*520/700*450 |
570*570/800*470 |
670*670/860*570 |
| Number of turntable stations |
mm |
2 |
2 |
2 |
| (D) Rotary Table Size |
mm |
φ1400 |
φ1630 |
φ1800 |
| QTY of Ejector |
pcs |
5 |
5 |
5 |
| Top bar spacing |
mm |
100 |
125 |
125 |
| Ejector Distance |
mm |
110 |
150 |
150 |
| Ejector Force |
KN(ton) |
45(4.6) |
45(4.6) |
45(4.6) |
| Others |
System Pressure |
Mpa(kgf/cm2) |
13.7(140) |
13.7(140) |
13.7(140) |
| Oil Tank Capacity |
L |
500 |
650 |
800 |
| Electric Power |
KW |
22+2.2 |
31+2.2 |
37+2.2 |
| Heater Power |
KW |
13.7 |
13.7 |
24.3 |
| Machine Dimensions |
L*W*H |
m |
2.9*2.2*3.3 |
3.0*2.4*3.7 |
3.3*2.6*4.4 |
| Cooling water capacity |
L/min |
50 |
60 |
60 |
| Work Table Height |
mm |
915+(80) |
935+(80) |
935+(80) |
| Machine Weight |
ton |
12.8 |
16.5 |
20.5 |
Features:
1. Based on the European formwork design concept, the formwork lock stress analysis benchmark is improved, and the formwork rigidity is better
2. Excellent injection accuracy, the repeatability of the injection end position can reach ±0.1mm, and the repeatability of the product weight can reach 3%.
3. According to the different needs of product production efficiency, it can be flexibly matched with a two-station 180° forward and reverse turntable, a three-station 120° rotating turntable in the same direction, or a four-station 90°+180° rotating combined turntable to further increase production capacity

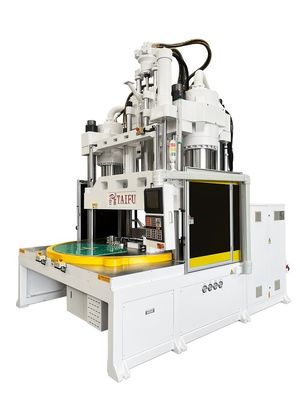

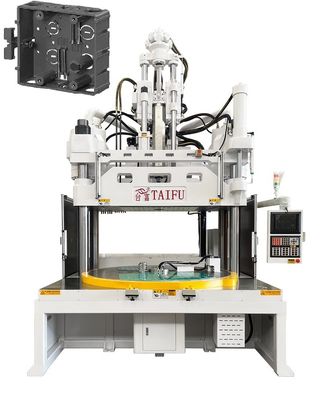

Machine Pictures:

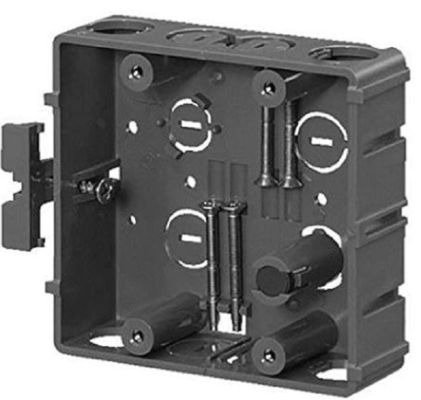

Applications:
Why Choose Us?
-
Top-notch quality with competitive pricing.
-
Skilled technical team for precision production.
-
Tailored designs to meet your needs.
-
Seamless pre- and post-sales support.
