Auto Parts Low Work Table Injection Molding Machine 120 Ton

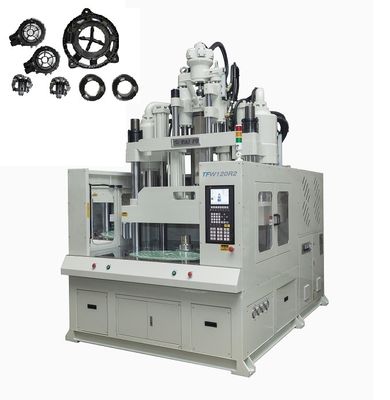

TAIFU low-station vertical rotary table injection molding machine adopts an ergonomic work surface to make operation more convenient and safer. The minimum diameter of the turntable is 810mm and the maximum diameter is 2300mm.
An auto parts low work table injection molding machine with a capacity of 120 tons is a specific type of equipment used in the manufacturing process of auto parts. It is designed to produce various plastic components used in automobiles through the injection molding technique.
The machine is equipped with a high-performance control system to provide a strong guarantee for high-quality injection molding accuracy and stability. Because of its unique rotatable disc design, the vertical turntable injection molding machine can be used with expanded automation equipment to achieve high-quality and efficient automated production of products with complex shapes and special processes. It is now widely used in auto parts and new energy industry.
1.Specification:
| |
UNIT |
TFW4-85R2 |
TFW4-120R2 |
TFW4-160R2 |
| Injection Unit |
Screw stroke |
mm |
140 |
160 |
200 |
| Screw Diameter |
mm |
32 |
36 |
40 |
36 |
40 |
45 |
45 |
50 |
55 |
| Theoretical Injection Volume |
cm3 |
113 |
143 |
176 |
163 |
201 |
254 |
318 |
393 |
475 |
| Injection Weight(PS) |
g |
105 |
133 |
164 |
151 |
187 |
237 |
296 |
365 |
442 |
| oz |
3.69 |
4.67 |
5.77 |
5.34 |
6.60 |
8.35 |
10.43 |
12.88 |
15.59 |
| Max.Injection Pressure |
Mpa |
228 |
180 |
146 |
222 |
180 |
142 |
218 |
177 |
146 |
| kgf/cm2 |
2331 |
1842 |
1492 |
2269 |
1838 |
1452 |
2226 |
1803 |
1490 |
| Injection Rate |
cm3/s |
100 |
126 |
156 |
128 |
158 |
200 |
167 |
206 |
249 |
| Max Injection Speed |
mm/s |
124 |
126 |
105 |
| Screw Speed Rotation |
r.p.m |
10~280 |
10~280 |
10~280 |
| Positioning ring diameter |
mm |
120 |
120 |
120 |
| Nozzle Out From Platens |
mm |
≥45 |
≥45 |
≥45 |
| Clamping Unit |
Clamping Force |
KN(ton) |
833(85) |
1176(120) |
1568(160) |
| Clamping Stroke |
mm |
280 |
300 |
350 |
| Min.Mold Thickness |
mm |
230(310) |
280(380) |
300(400) |
| Max.Opening |
mm |
510(590) |
580(680) |
650(750) |
| (L*W)Max.Mould Size |
mm |
360*360/450*320 |
420*420/560*360 |
520*520/700*450 |
| Number of turntable stations |
mm |
2 |
2 |
2 |
| (D) Rotary Table Size |
mm |
φ1010 |
φ1200 |
φ1400 |
| Quality of Ejector |
pcs |
3 |
5 |
5 |
| Top bar spacing |
mm |
80 |
80 |
100 |
| Ejector Distance |
mm |
100 |
100 |
110 |
| Ejector Force |
KN(ton) |
45(4.6) |
45(4.6) |
45(4.6) |
| Others |
System Pressure |
Mpa(kgf/cm2) |
13.7(140) |
13.7(140) |
13.7(140) |
| Oil Tank Capacity |
L |
350 |
430 |
500 |
| Electric Power |
KW |
15+2.2 |
18+2.2 |
22+2.2 |
| Heater Power |
KW |
7.0 |
10.7 |
13.7 |
| Machine Dimensions |
L*W*H |
m |
2.5*1.9*2.5 |
2.6*2.0*2.9 |
2.9*2.2*3.3 |
| Cooling water capacity |
L/min |
40 |
50 |
50 |
| Work Table Height |
mm |
780+(70) |
820+(70) |
915+(80) |
| Machine Weight |
ton |
6.5 |
9.5 |
12.8 |
2. Features:
- Low workbench design makes it easier to access and place inserts, saving workstation costs
- The hydraulic system is driven by an energy-saving servo motor, which saves energy and electricity, shortens the machine cycle, increases the service life of the equipment, and improves production efficiency.
- High efficiency
3. Machine Pictures:
4. Applications:
5. Why choose us?
1. Best product quality and most competitive price.
2. Experienced technical personnel in production.
3. Customized design and production.
4. Excellent pre-sales and after-sales services.
6. FAQ:
Q: How about your delivery time?
Generally speaking, it will take 20 to 45 days after receiving the advance payment. The specific delivery time depends on
Regarding your order and quantity.
Q: What automotive parts are made with injection molding?
A: Exterior Auto Components: Panels and railings, mud guards, bumper supports, door and locking systems. Interior Auto Components: Garnish pillars, seats, audio/video, brakes, and storage systems. Decorative Exterior Components: Bezels, knobs, interior/exterior trims, and skull caps.
Q: Do you test all goods before delivery?
Yes, we have 100% testing before delivery
Q: What are your payment terms?
T/T 30% deposite,70%before departure.
Q: Packaging and shipping?
The spool is plastic-covered inside and cartoned outside. Or according to your request.
If you are interested in our machines, please do not hesitate to CONTACT US!
