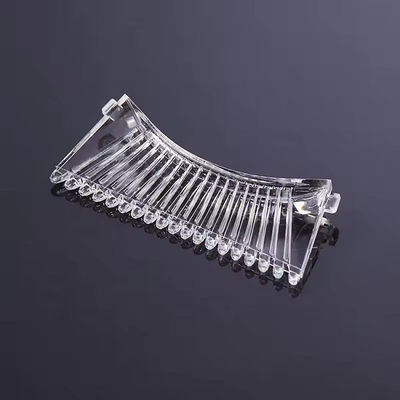

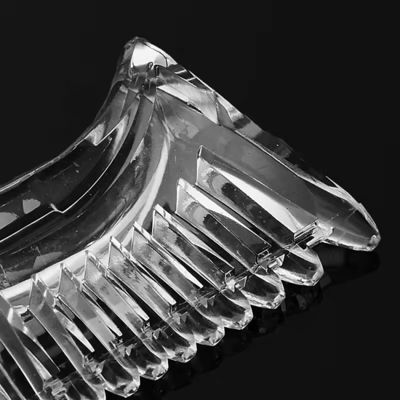

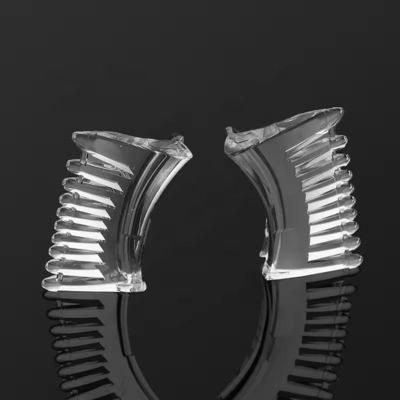

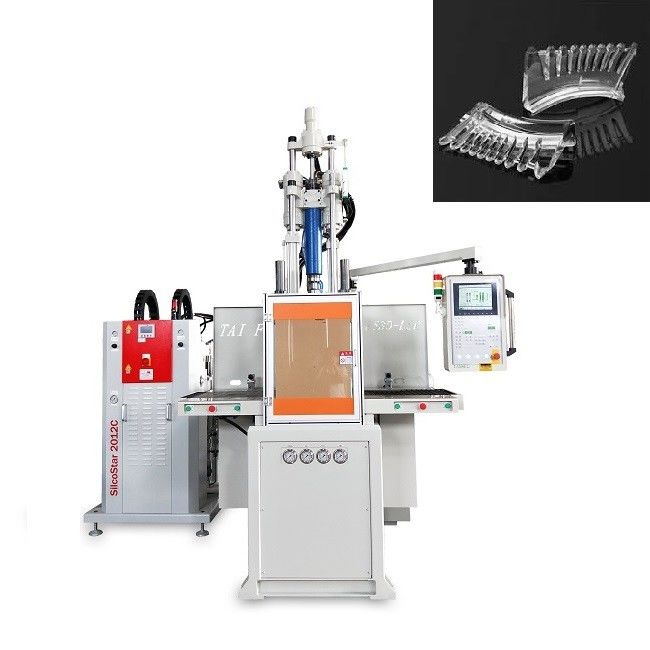

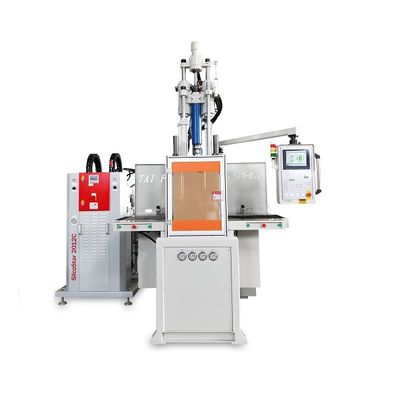

85 Ton LSR Vertical Injection Molding Machine For Making LED Lens
The 85 Ton LSR Vertical Injection Molding Machine for LED Lens is a cutting-edge piece of equipment designed specifically for the production of swim goggles using Liquid Silicone Rubber (LSR) material. This machine incorporates several innovative features that enhance efficiency and precision in the molding process.
One notable feature of this machine is its vertical design, which allows for efficient and space-saving operation. The vertical configuration enables easy access to the molds and simplifies the handling of parts during the production process.
The machine is equipped with advanced temperature control technology, enabling precise adjustment of the multi-stage PID precision mold electric heating temperature. This feature ensures that the LSR material is heated to the optimal temperature, resulting in perfectly formed swim goggles. The digital control system allows for accurate temperature adjustment, contributing to consistent and high-quality product output.
For precise and accurate feeding of the LSR material, the machine is equipped with a specialized liquid silicone feeding system. This system incorporates a design that ensures precise and reliable measurement of the silicone material. Accurate feeding measurement is crucial in achieving consistent product quality, and this machine excels in this aspect.
It is important to note that the molding time for LSR products is typically longer compared to plastic molding processes. While plastic products can be formed in a matter of seconds or a few seconds, the formation of silicone swim goggles may take approximately a minute or even longer. This extended molding time is necessary to allow the LSR material to cure and solidify properly, ensuring the desired product characteristics and durability.
Please contact us if you want to know more!
| |
TFV4-85S-LSR |
TFV4-85SD-LSR |
| INJECTION UNIT |
|
Z3 |
|
| Screw stroke |
140 |
| Screw Diameter |
26 |
28 |
30 |
32 |
| Theoretical Injection Volume |
74 |
86 |
99 |
113 |
| Injection Weight(LSR) |
82 |
95 |
109 |
124 |
| 2.88 |
3.34 |
3.84 |
4.37 |
| Max.Injection Pressure |
178 |
153 |
133 |
117 |
| 1812 |
1563 |
1361 |
1196 |
| Injection Rate |
103 |
119 |
137 |
156 |
| Max Injection Speed |
194 |
| Screw Speed Rotation |
10~280 |
| Positioning ring diameter |
120 |
| Nozzle Out From Platens |
≥45 |
| CLAMPING UNIT |
合模力Clamping Force |
833(85) |
| 合模行程Clamping Stroke |
250 |
| Skate size |
540*490 |
1120*500 |
| QTY of Ejector |
3 |
| Top bar spacing |
80 |
| Ejector Distance |
100 |
| Ejector Force |
26.5(2.7) |
| OTHERS |
System Pressure |
13.7(140) |
| Oil Tank Capacity |
280 |
280 |
| Electric Power |
11 |
11+2.2 |
| Reserved mold electric heating power |
6*4 |
6*6 |
| Machine Dimensions |
L*W |
2.2*1.5 |
2.1*1.9 |
| H |
Min:2.8(Max:3.5) |
Min:2.8(Max:3.5) |
| Cooling water capacity |
40 |
| Machine Weight |
3.90 |
4.30 |
TAIFU Machinery is a professional manufacturer of vertical injection molding machines integrated with strong capabilities of R&D, manufacturing and services, with more than 15 years manufacturing experience; 100 employees; 15,000 square feet of manufacturing floor spaces and with facility in the Dongguan city, Guangdong province, China. We are certified by ISO9001, CE and patents 20 inventions.
We aims to supply quality products and excellent services to create value for customers on the basis of integrity, innovation, and win-win cooperation. TAIFU Machinery will be your most valuable and reliable partner in business.
We have 15,000 square feet of manufacturing floor space and with facilities in China. All the machines are manufactured by our own employees in our own factory.
- Machine assembly wproshop
- Finished product machine shop
- PHOTOS OF DIFFERENT EXHIBITIONS
We products and delivers more than 2,000 sets of vertical injection molding machines annually. All the machines will be packed well before shipment.
We provide one-stop solutions of plastic injection molding from raw material to automation, trying to create more values for our customers.
For more than 15 years, we have recognized our customers as long-term partners, growing together. Take advantage of this global strength, and grow with us as we grow with you.
There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.
Your Professional Vertical Injection Molding Machine Manufacturer-TAIFU
We are ready to provide a well-built, high-performance products. Contact Us Now!
SELLING POINT:
1.Efficient and precise production capabilities
2.Excellent material adaptability
3.Reliable and stable performance
4.Easy to operate and maintain
Q1:How productive is the machine?
A:The dual-slide design of the silicone injection molding machine makes it easier to pick up parts. The pause time of LSR thermoset molding can also be used to allow the operator to clean and pick up the mold, greatly increasing production efficiency.
Q2: How is the product quality?
A:Unique precision sealing needle design, the nozzle hole and sealing needle seam can achieve no flash and no dead glue, ensuring the high quality of the product.
Q3: What are your payment terms?
A:T/T 50% in deposite,50% before departure.
Q3: Packaging and shipping?
A:The spool is plastic-covered inside and cartoned outside. Or according to your request.
Q4: What fields are silicone injection molding machines suitable for?
LSR silicone injection molding machines are widely used in many fields such as baby products, medical equipment, electronics, and automobiles.
Q5: How about your delivery time?
A:Generally speaking, it will take 20 to 45 days after receiving the advance payment. The specific delivery time depends on
Regarding your order and quantity.
