Product Details:
|
| Name: | 120 Ton LSR Silicone Injection Molding Machine For Safety Goggles | Max Clamping Force: | 120 Tons |
|---|---|---|---|
| Plastic Type: | Liquid Silicone | After-sales Service Provided: | 1 Year |
| Motor: | Servo Motor | Usage: | Safety Goggles |
| Advantage: | Easy To Operate | Type: | Vertical |
| High Light: | LSR-Silicone Injection Molding Machine Manufacturer,injection moulding machine 120 ton,lsr injection molding process |
||

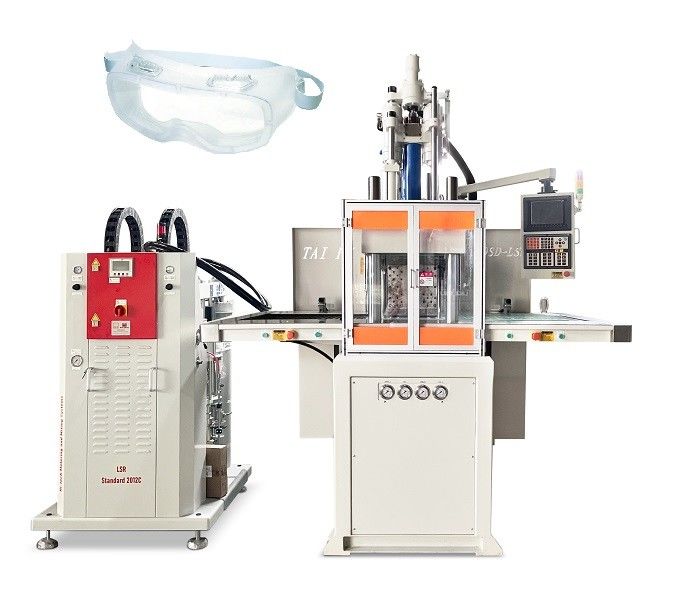

120 Ton LSR Silicone Injection Molding Machine For Safety Goggles
LSR Silicone Injection Molding Machine is a single slide injection molding machine that is designed to meet the needs of industrial silicone production. It is an ideal choice for injection molding applications that require high precision and repeatability. With min mould thickness of 280mm, injection rate of 44-178cm3/s, max mould opening stroke of 560mm and injection capacity of 53-254g, it provides a reliable and efficient solution for industrial silicone production. The machine also features a rotary injection molding machine, allowing it to process complex parts with ease. This machine is perfect for applications that require tight tolerances and high precision. It is also capable of producing single slide injection molded parts for a variety of applications. With its advanced technology and outstanding performance, LSR Silicone Injection Molding Machine is the perfect choice for industrial silicone production.
1. Sepcifications:
| UNIT | TFV4-120SD | ||||||
|
INJECTION
UNIT |
Shooter configuration code | name | Z12 | ||||
| Screw stroke | mm | 160 | |||||
| Screw Diameter | mm | 36 | 40 | 45 | |||
| Theoretical Injection Volume | cm3 | 163 | 201 | 254 | |||
| Injection Weight(PS) | g | 151 | 187 | 237 | |||
| oz | 5.34 | 6.60 | 8.35 | ||||
| Max.Injection Pressure | Mpa | 222 | 180 | 142 | |||
| kgf/cm2 | 2269 | 1838 | 1452 | ||||
| Injection Rate | cm3/s | 128 | 158 | 200 | |||
| Max Injection Speed | mm/s | 126 | |||||
| Screw Speed Rotation | r.p.m | 0-260 | |||||
| Positioning ring diameter | mm | 120 | |||||
| Nozzle Out From Platens | mm | ≥45 | |||||
|
CLAMPING
UNIT |
Clamping Force | KN(ton) | 1176(120) | ||||
| Clamping Stroke | mm | 280 | |||||
| Min.Mold Thickness | mm | 280(380) | |||||
| Max.Opening | mm | 560(660) | |||||
| (L*W)Distance Between Tie Bars | mm | 760*380 | |||||
| (L*W)Max.Mould Size | mm | 600*540 | |||||
| (L*W)Skate size | mm | 1290*560 | |||||
| QTY of Ejector | pcs | 3 | |||||
| Top bar spacing | mm | 80 | |||||
| Ejector Distance | mm | 100 | |||||
| Ejector Force | KN(ton) | 45(4.6) | |||||
| OTHERS | System Pressure | Mpa(kgf/cm2) | 13.7(140) | ||||
| Oil Tank Capacity | L | 350 | |||||
| Electric Power | KW | 18+2.2 | |||||
| Heater Power | KW | 13.2 | |||||
| Machine Size | L*W*H | m | 2.4*2.25*3.3 | ||||
| Cooling water capacity | L/min | 50 | |||||
| Work Table Height | mm | 1340+(70) | |||||
| Machine Weight | ton | 6.0 | |||||
2. Features:
3. Machine Pictures:
4. Applications:
5. FAQ:
Q: How long is the warranty time?
A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.
Q: What temperature is liquid silicone rubber injection molding?
A: The molds used in the injection molding of liquid silicone rubber are heated to temperatures ranging from approximately 250° – 300°.
Q: How long is your delivery time?
A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.
Q: What are the advantages of liquid silicone rubber injection molding?
A: Liquid silicone rubber offers great sealing benefits. It offers high resistance to water, ozone, weather and extreme temperatures, ranging from -65℃ to 200℃. Injection molding with this type of material gives excellent resistance properties to the finished part.
Q: Are you a trading company or manufacturer?
A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.
Q: What are your terms of payment?
A: 30%TT in advance, 70% balance before shipment. or L/C at sight.
If you are interested in our machines, please do not hesitate to CONTACT US!
