55 Ton Liquid Silicone Rubber Injection Molding Machine With Feeding Systerm

55 Ton Liquid Silicone Rubber Injection Molding Machine With Feeding Systerm
55 Ton Liquid Silicone Rubber Injection Molding Machine With Feeding Systerm
55 Ton Liquid Silicone Rubber Injection Molding Machine With Feeding Systerm 55 Ton Liquid Silicone Rubber Injection Molding Machine With Feeding Systerm 55 Ton Liquid Silicone Rubber Injection Molding Machine With Feeding Systerm 55 Ton Liquid Silicone Rubber Injection Molding Machine With Feeding Systerm 55 Ton Liquid Silicone Rubber Injection Molding Machine With Feeding Systerm

Large Image :  55 Ton Liquid Silicone Rubber Injection Molding Machine With Feeding Systerm

Product Details:
Place of Origin: Dongguan, China
Brand Name: TAIFU
Certification: CE, ISO9001
Model Number: TFV4-55-LSR
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: All the machines are fixed and well packaged in the plywood cases.
Delivery Time: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 250 sets/month
Contact Now

55 Ton Liquid Silicone Rubber Injection Molding Machine With Feeding Systerm

Description
Name: 35 Ton Silicone USB Cable Liquid Silicone Rubber Injection Molding Machine55 Ton Liquid Silicone Rubber Injection Molding Machine With Feeding Systerm Clamping Force: 55 Tons
Plastic Type: Liquid Silicone After-sales Service Provided: 1 Year
Motor Power: 7.5KW Usage: Silicone USB Cable
Advantage: Easy To Operate Application: Silicone Products
Highlight:

Injection Moulding of Liquid Silicone LSR

,

55 Ton Injection Molding Machine

,

silicone rubber molding machine

55 Ton Liquid Silicone Rubber Injection Molding Machine With Feeding Systerm



TAIFU 35-ton silicone USB cable liquid silicone rubber injection molding machine is designed to produce high-quality USB cables using liquid silicone rubber material. With its precision, stability, efficiency, and customization options, it provides a reliable solution for manufacturing silicone products with consistent quality and performance.



We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solutions.



1. Sepcifications:



  UNIT TFV4-55S-LSR TFV4-55SD-LSR TFV3-55R2-LSR
INJECTION UNIT Screw stroke mm 120
Screw Diameter mm 14 16 18 22 26 28
Theoretical Injection Volume cm3 18 24 31 46 64 74
Injection Weight(LSR) g 20 27 34 50 70 81
oz 0.72 0.94 1.18 1.77 2.47 2.87
Max.Injection Pressure Mpa 462 354 279 187 134 116
kgf/cm2 4714 3609 2852 1909 1367 1179
Injection Rate cm3/s 25 32 41 61 85 99
Max Injection Speed mm/s 161
Screw Speed Rotation r.p.m 0-300
Positioning ring diameter mm 110 100
Nozzle Out From Platens mm ≥45
CLAMPING UNIT Clamping Force KN(ton) 539(55)
Clamping Stroke mm 200
Min.Mold Thickness mm 180(240)
Max.Opening mm 380(440)
(L*W)Distance Between Tie Bars mm 445*255 _
(L*W)Max.Mould Size mm 400*375 380*380 310*310
(L*W)Skate size mm 915*400 915*400 φ910
QTY of Ejector pcs 3
Top bar spacing mm 80
Ejector Distance mm 100
Ejector Force KN(ton) 26.5(2.7)
OTHERS System Pressure Mpa(kgf/cm2) 13.7(140)
Oil Tank Capacity L 140 180 230
Electric Power KW 7.5 7.5+2.2 7.5+2.2
Reserved mold electric heating power KW 6*4 6*6 6*6
Machine Dimensions L*W m 2.05*1.3 1.8*1.3 2.0*1.6
H m Min:2.32(Max:2.9) Min:2.32(Max:2.9) Min:2.4(Max:3.0)
Cooling water capacity L/min 35
Work table height mm 1088+(60) 1020+(60) 1020+(60)
Machine Weight ton 2.0 2.2 2.9



2. Features:



  • Suitable for liquid silicone injection molding of products with inlays and multi-purpose liquid silicone injection molding processes

  • Multiple models of single slide (S), double slide (SD) or disc (R) are available, which not only improves safety but also increases production efficiency by 30%-50%.

  • Digitally adjusted multi-stage precision mold electric heating temperature control

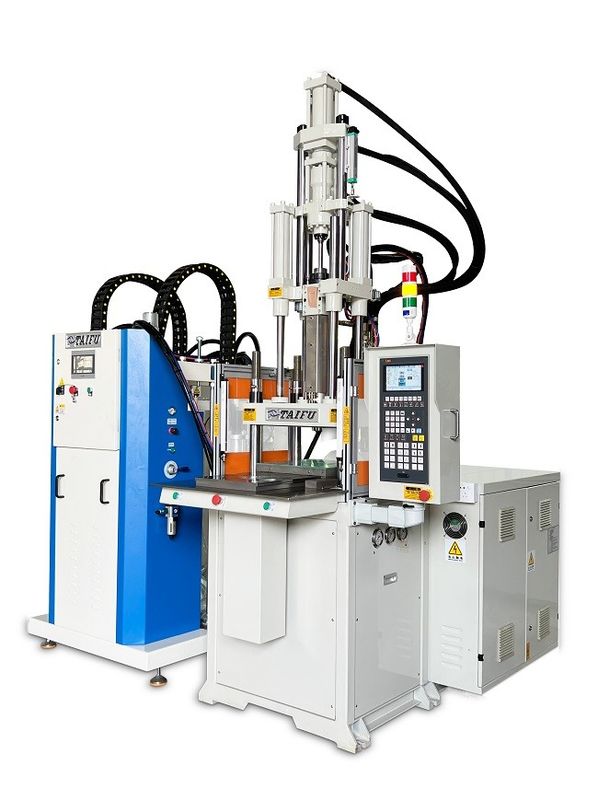

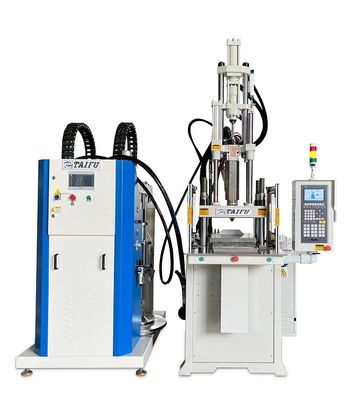

3. Machine Pictures:



55 Ton Liquid Silicone Rubber Injection Molding Machine With Feeding Systerm 0

55 Ton Liquid Silicone Rubber Injection Molding Machine With Feeding Systerm 1

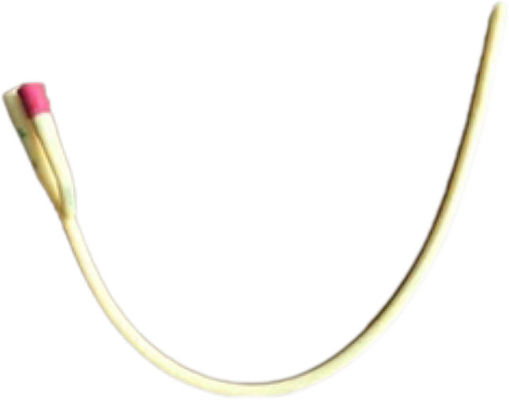

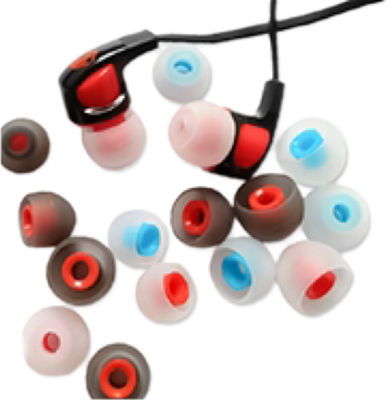

4. Applications:



55 Ton Liquid Silicone Rubber Injection Molding Machine With Feeding Systerm 2

55 Ton Liquid Silicone Rubber Injection Molding Machine With Feeding Systerm 3



5. FAQ:



Q: What are the 4 types of silicon?

A: Silicon or other semiconductor materials used for solar cells can be single crystalline, multicrystalline, polycrystalline or amorphous.



Q: Can silicone rubber be injection Moulded?

A: Injection molding of Liquid Silicone Rubber (LSR) is a process used to produce pliable, durable parts in high volumes.



Q: Are you a trading company or manufacturer?

A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.



Q: How long is your delivery time?

A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.



Q: What are your terms of payment?

A: 30%TT in advance, 70% balance before shipment. or L/C at sight.



Q: How long is the warranty time?

A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.
