Liquid Silicone Rubber LSR Silicone Injection Molding Machine For Baby Pacifier

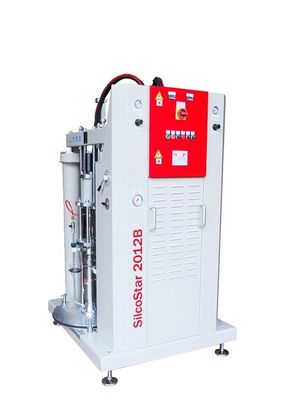

TAIFU liquid silicone vertical injection molding machine with German 2KM liquid silicone feeding device is an advanced injection molding equipment suitable for liquid silicone injection molding process. This machine adopts a special hydraulic water-cooled closed injection nozzle for liquid silicone and a special material tube group for liquid silicone, which can achieve a high-precision and highly stable injection process of liquid silicone.
The vertical rotary or double-slide injection molding machine has a unique design. The structure of one upper mold and two lower molds allows the operator to make full use of the time for silicone thermosetting molding. While one set of molds is performing silicone injection molding, another set of molds can pick up, place and clean products, thus greatly improving production efficiency.
In addition, the machine also has various optional functions to meet different production needs. It has been widely used in the auto parts and medical industries and can produce high-quality silicone products.
We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solutions.
1. Sepcifications:
| |
UNIT |
TFV3-85R2-LSR |
| Injection Unit |
Screw stroke |
mm |
140 |
| Screw Diameter |
mm |
32 |
36 |
| Theoretical Injection Volume |
cm3 |
113 |
143 |
| Injection Weight(LSR) |
g |
124 |
157 |
| oz |
4.37 |
5.54 |
| Max.Injection Pressure |
Mpa |
117 |
93 |
| kgf/cm2 |
1194 |
949 |
| Injection Rate |
cm3/s |
156 |
197 |
| Max Injection Speed |
mm/s |
194 |
| Screw Speed Rotation |
r.p.m |
0-280 |
| Positioning ring diameter |
mm |
120 |
| Nozzle Out From Platens |
mm |
≥45 |
| Clamping Unit |
Clamping Force |
KN(ton) |
833(85) |
| Clamping Stroke |
mm |
250 |
| Min.Mold Thickness |
mm |
230(310) |
| Max.Opening |
mm |
480(560) |
| (L*W)Distance Between Tie Bars |
mm |
520*350 |
| (L*W)Max.Mould Size |
mm |
360*360 |
| (L*W)Skate size |
mm |
φ1010 |
| QTY of Ejector |
pcs |
3 |
| Top bar spacing |
mm |
80 |
| Ejector Distance |
mm |
100 |
| Ejector Force |
KN(ton) |
45(4.6) |
| Others |
System Pressure |
Mpa(kgf/cm2) |
13.7(140) |
| Oil Tank Capacity |
L |
310 |
| Electric Power |
KW |
11+2.2 |
| Reserved mold electric heating power |
KW |
36 |
| Machine Dimensions |
L*W*H |
m |
2.3*1.8*3.4 |
| Work Table Height |
mm |
1150 +(70) |
| Machine Weight |
ton |
4.60 |
2. Features:
-
High-precision injection molding: TAIFU LSR injection molding machine adopts advanced liquid silicone injection molding technology, which can achieve high-precision injection molding of silicone. By precisely controlling parameters such as injection speed, pressure and temperature, high-quality injection molded products can be obtained.
-
Strong stability: Using a closed-loop control system, it can monitor and adjust various parameters in the injection molding process in real time to ensure the stability of the injection molding process. This helps improve product consistency and reliability.
-
fficient production: With fast injection speed and cycle time, efficient production can be achieved. At the same time, the vertical design allows operators to replace molds and pick and place products at the same time, thereby further improving production efficiency.

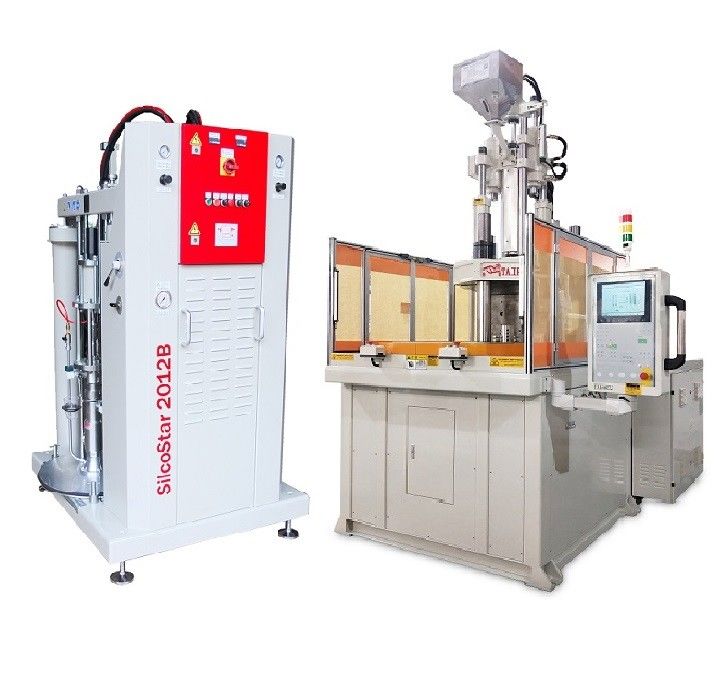

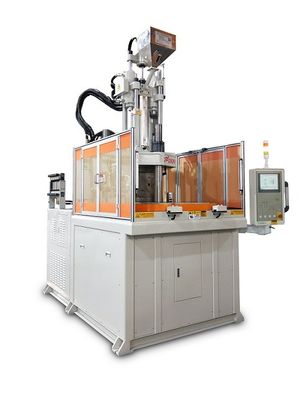

3. Machine Pictures:

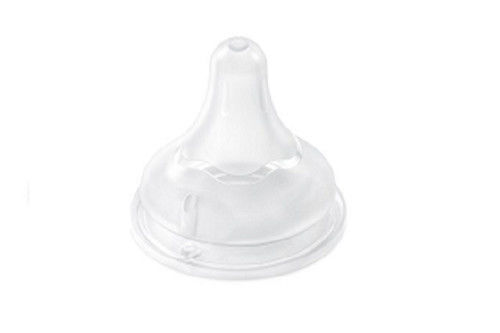

4. Applications:
5. FAQ:
Q: What is the difference between silicone and LSR?
A: Liquid silicone rubber has high transparency, no peculiar smell, and the injection molded silicone products has a glue injection port. The LSR molded silicone products is odorless. Solid silicone rubber have to use the flavor of curing agent or other curing agents, and the product has no glue injection port.
Q: Are you a trading company or manufacturer?
A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.
Q: How long is your delivery time?
A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.
Q: How long is the warranty time?
A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.
Q: What are your terms of payment?
A: 30%TT in advance, 70% balance before shipment. or L/C at sight.
