LSR Vertical Low Workbench Rotary Injection Molding Machine For Baby Pacifier

LSR Vertical Low Workbench Rotary Injection Molding Machine For Baby Pacifier
LSR Vertical Low Workbench Rotary Injection Molding Machine For Baby Pacifier
LSR Vertical Low Workbench Rotary Injection Molding Machine For Baby Pacifier LSR Vertical Low Workbench Rotary Injection Molding Machine For Baby Pacifier LSR Vertical Low Workbench Rotary Injection Molding Machine For Baby Pacifier LSR Vertical Low Workbench Rotary Injection Molding Machine For Baby Pacifier LSR Vertical Low Workbench Rotary Injection Molding Machine For Baby Pacifier LSR Vertical Low Workbench Rotary Injection Molding Machine For Baby Pacifier LSR Vertical Low Workbench Rotary Injection Molding Machine For Baby Pacifier

Large Image :  LSR Vertical Low Workbench Rotary Injection Molding Machine For Baby Pacifier

Product Details:
Place of Origin: Dongguan, China
Brand Name: TAIFU
Certification: CE, ISO9001
Model Number: TFW4-85R2-LSR
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: All the machines are fixed and well packaged in the plywood cases.
Delivery Time: Negotiable
Payment Terms: T/T, D/P, L/C, D/A
Supply Ability: 200 sets/month

LSR Vertical Low Workbench Rotary Injection Molding Machine For Baby Pacifier

Description
Name: LSR Vertical Low Workbench Rotary Injection Molding Machine For Baby Pacifier Usage: LSR Baby Pacifier
Plastic Type: Liquid Silicone Rubber Clamping Force: 85 Tons
After-sales Service Provided: 365 Days Provided Oil Tank Capacity: 350L
Advantage: Easy Operating Color: White & Blue & Yellow

LSR Vertical Low Workbench Rotary Injection Molding Machine For Baby Pacifier



TAIFU 35-ton silicone liquid silicone rubber injection molding machine is designed to produce high-quality silicone products using liquid silicone rubber material. With its precision, stability, efficiency, and customization options, it provides a reliable solution for manufacturing silicone products with consistent quality and performance.



We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solutions.



1. Sepcifications:



Items Unit TFW4-85R2-LSR
Injection Unit
Screw Diameter mm 32 36 40
Theoretical Injection Volume cm³ 113 143 176
Injection Weight g 105 133 164
Max. Injection Pressure Mpa 228 180 146
Injection Rate cm³/s 100 126 156
Injection Speed mm/s 124
Screw Speed Rotation r.p.m 10~280
Nozzle Out From Platens mm ≥45
Clamping Unit
Clamping Force KN 833(85)
Clamping Stroke mm 280
Ejector Force KN 45(4.6)
Others
System Pressure Mpa 13.7(140)
Oil Tank Capacity L 350
Motor Power KW 15+2.2
Heater Power KW 6.5



2. Features:



  • Suitable for liquid silicone injection molding of products with inlays and multi-purpose liquid silicone injection molding processes

  • Multiple models of single slide (S), double slide (SD) or disc (R) are available, which not only improves safety but also increases production efficiency by 30%-50%.

  • Digitally adjusted multi-stage precision mold electric heating temperature control

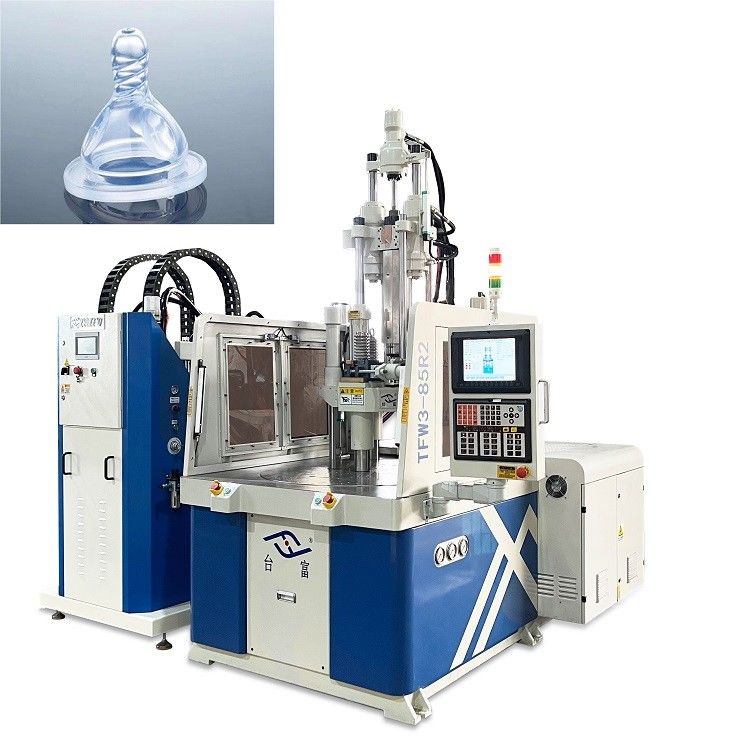

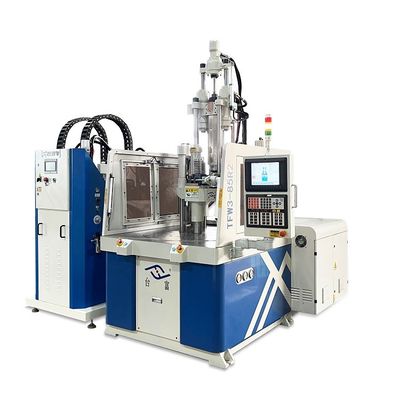

3. Machine Pictures:

LSR Vertical Low Workbench Rotary Injection Molding Machine For Baby Pacifier 0

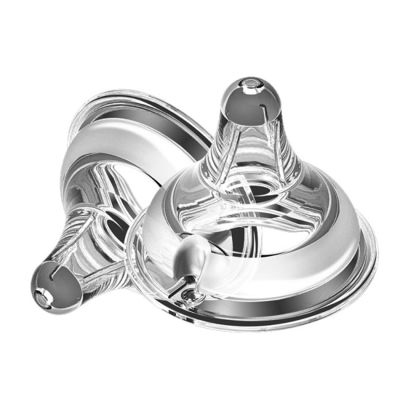

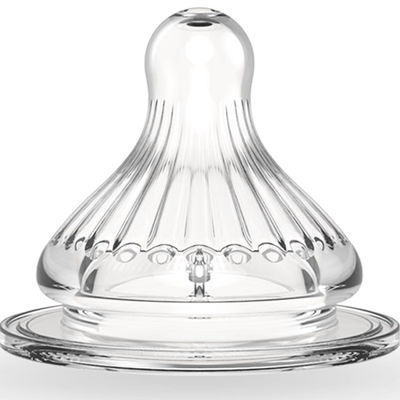

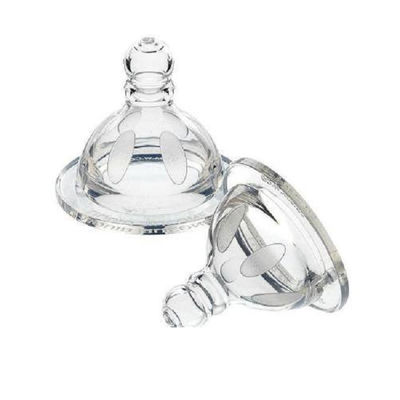

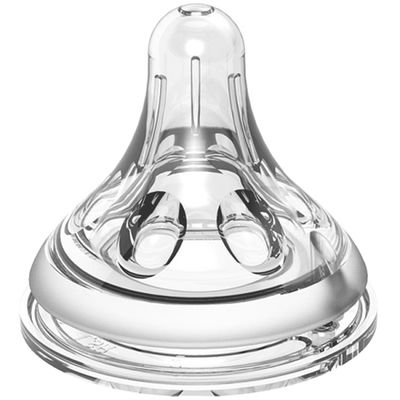

4. Applications:



LSR Vertical Low Workbench Rotary Injection Molding Machine For Baby Pacifier 1LSR Vertical Low Workbench Rotary Injection Molding Machine For Baby Pacifier 2LSR Vertical Low Workbench Rotary Injection Molding Machine For Baby Pacifier 3LSR Vertical Low Workbench Rotary Injection Molding Machine For Baby Pacifier 4







5. FAQ:



Q: What are the 4 types of silicon?

A: Silicon or other semiconductor materials used for solar cells can be single crystalline, multicrystalline, polycrystalline or amorphous.



Q: Are you a trading company or manufacturer?

A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.



Q: How long is your delivery time?

A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.



Q: What are your terms of payment?

A: 50% in advance, 50% balance before shipment. or L/C at sight.



Q: How long is the warranty time?

A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.



Q: Can silicone rubber be injection Moulded?

A: Injection molding of Liquid Silicone Rubber (LSR) is a process used to produce pliable, durable parts in high volumes.
