Liquid Silicone Baby Pacifier Making Machine 160T Vertical Injection Molding Machine

Liquid Silicone Baby Pacifier Making Machine 160T Vertical Injection Molding Machine
Liquid Silicone Baby Pacifier Making Machine 160T Vertical Injection Molding Machine Liquid Silicone Baby Pacifier Making Machine 160T Vertical Injection Molding Machine Liquid Silicone Baby Pacifier Making Machine 160T Vertical Injection Molding Machine Liquid Silicone Baby Pacifier Making Machine 160T Vertical Injection Molding Machine Liquid Silicone Baby Pacifier Making Machine 160T Vertical Injection Molding Machine Liquid Silicone Baby Pacifier Making Machine 160T Vertical Injection Molding Machine

Large Image :  Liquid Silicone Baby Pacifier Making Machine 160T Vertical Injection Molding Machine

Product Details:
Place of Origin: China
Brand Name: TAIFU
Certification: CE, ISO9001
Model Number: TFV3-160R2-LSR
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: All the machines are fixed and well packaged in the plywood cases.
Delivery Time: Negotiable
Payment Terms: T/T, L/C, D/P, D/A
Supply Ability: 180 set/month
Contact Now

Liquid Silicone Baby Pacifier Making Machine 160T Vertical Injection Molding Machine

Description
Product Name: Liquid Silicone Baby Pacifier Making Machine 160T Vertical Injection Molding Machine Usage: LSR Baby Products
After-sales Service Provided: One Year Provided Advantage: Easy Operating
Type: Vertical Color: White & Blue & Yellow

Liquid Silicone Baby Pacifier Making Machine 160T Vertical Injection Molding Machine



Company Production -TAIFU-.pdf

TAIFU-Product Catalog -.pdf

It is available to customize machines to meet your...



Vertical Injection Molding Machine-Liquid Silicone Series

Taifu vertical injection molding machine is known for the quality, reliability and proven performance, allowing for safe and easy handling and extremely high operating safety.

Our machines are widely applied in the field of injection overmoulding, multi-colors injection moulding, multi-components injection moulding, high-precision injection moulding, thermosetting injection moulding and liquid silicone injection moulding.

There are various machine models we have V-35/55/85/120/160/200LSR



We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solutions.



1. Sepcifications:



  UNIT TFV3-160R2-LSR
INJECTION UNIT Screw stroke mm 200
Screw Diameter mm 70 75
Theoretical Injection Volume cm3 770 884
Injection Weight(LSR) g 847 972
oz 29.86 34.28
Max.Injection Pressure Mpa 90 79
kgf/cm2 920 801
Injection Rate cm3/s 404 464
Max Injection Speed mm/s 105
Screw Speed Rotation r.p.m 10-260
Positioning ring diameter mm 120
Nozzle Out From Platens mm ≥45
CLAMPING UNIT Clamping Force KN(ton) 1568(160)
Clamping Stroke mm 300
Min.Mold Thickness mm 300(400)
Max.Opening mm 600(700)
(L*W)Distance Between Tie Bars mm 760*380
(L*W)Max.Mould Size mm 600*540
(L*W)Skate size mm 1290*560
QTY of Ejector pcs 5
Top bar spacing mm 100
Ejector Distance mm 110
Ejector Force KN(ton) 45(4.6)
OTHERS System Pressure Mpa(kgf/cm2) 13.7(140)
Oil Tank Capacity L 450
Electric Power KW 22+2.2
Reserved mold electric heating power KW 6*6
Machine Dimensions L*W m 2.5*2.4
H m Min:3.7(Max:4.6)
Cooling water capacity L/min 50
Work table height mm 1480+(80)
Machine Weight ton 10.80



2. Features:



  • High-precision injection molding: TAIFU LSR injection molding machine adopts advanced liquid silicone injection molding technology, which can achieve high-precision injection molding of silicone. By precisely controlling parameters such as injection speed, pressure and temperature, high-quality injection molded products can be obtained.

  • Strong stability: Using a closed-loop control system, it can monitor and adjust various parameters in the injection molding process in real time to ensure the stability of the injection molding process. This helps improve product consistency and reliability.

  • fficient production: With fast injection speed and cycle time, efficient production can be achieved. At the same time, the vertical design allows operators to replace molds and pick and place products at the same time, thereby further improving production efficiency.

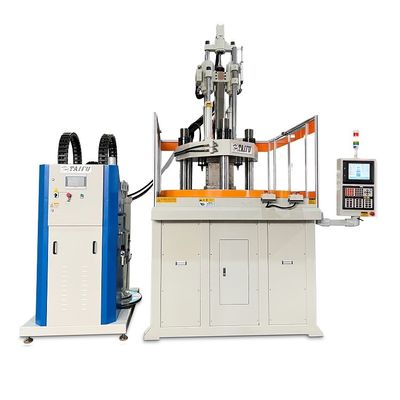

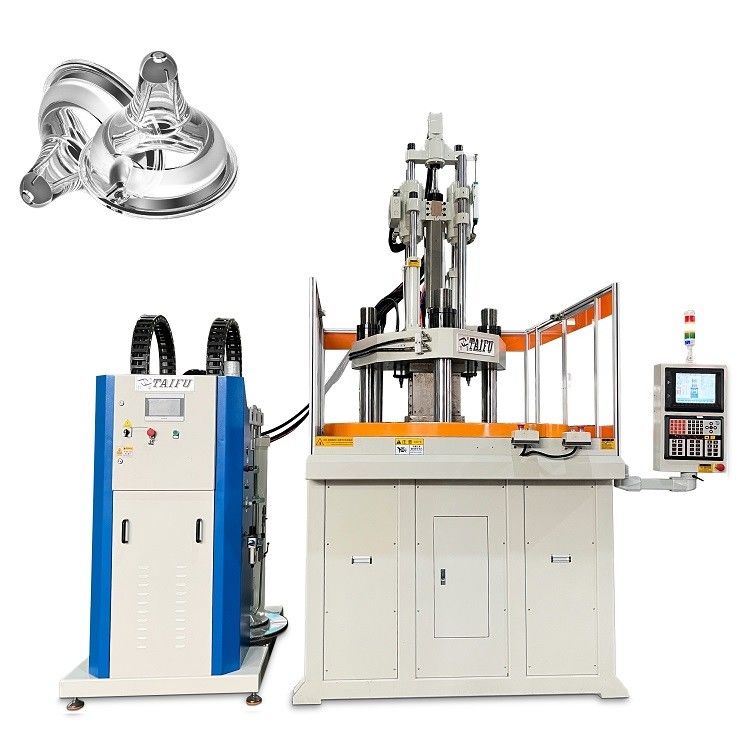

3. Machine Pictures:

Liquid Silicone Baby Pacifier Making Machine 160T Vertical Injection Molding Machine 0

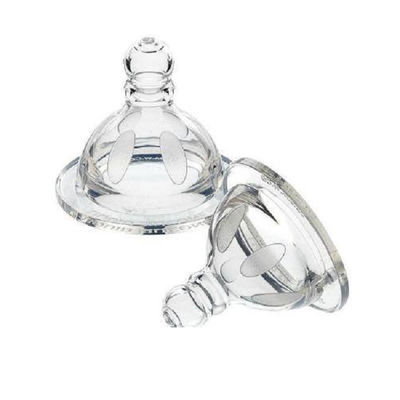

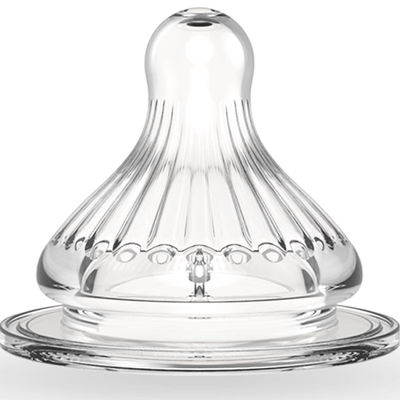

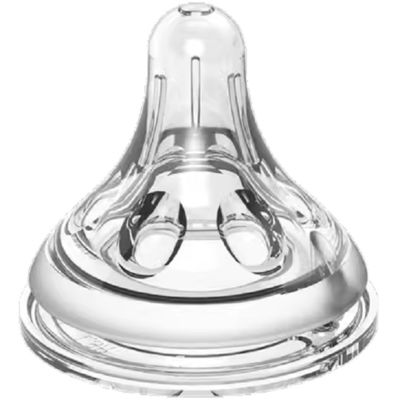

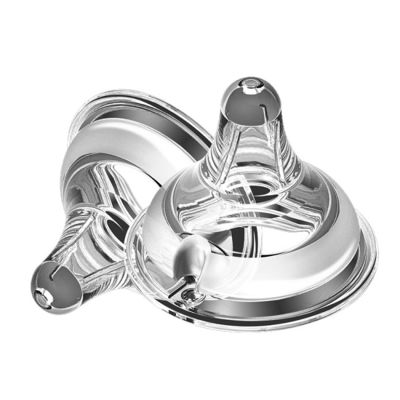

4. Applications:



Liquid Silicone Baby Pacifier Making Machine 160T Vertical Injection Molding Machine 1Liquid Silicone Baby Pacifier Making Machine 160T Vertical Injection Molding Machine 2Liquid Silicone Baby Pacifier Making Machine 160T Vertical Injection Molding Machine 3Liquid Silicone Baby Pacifier Making Machine 160T Vertical Injection Molding Machine 4

5. FAQ:



Q: What is the difference between silicone and LSR?
A: Liquid silicone rubber has high transparency, no peculiar smell, and the injection molded silicone products has a glue injection port. The LSR molded silicone products is odorless. Solid silicone rubber have to use the flavor of curing agent or other curing agents, and the product has no glue injection port.



Q: Are you a trading company or manufacturer?

A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.



Q: How long is the warranty time?

A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.



Q: What are your terms of payment?

A: 30%TT in advance, 70% balance before shipment. or L/C at sight.



Q: How long is your delivery time?

A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.



If you are interested in our machines, please do not hesitate to CONTACT US!

E-mail address: waimao004@dg-taifu.com

WhatsApp or WeChat No.: +86 13650274786

Contact person: Martina
