Product Details:
Place of Origin: Dongguan, China
Brand Name: TAIFU
Certification: CE, ISO9001
Model Number: TFV3-120R2-LSR
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: All the machines are fixed and well packaged in the plywood cases.
Delivery Time: Negotiable
Payment Terms: T/T, D/P, L/C, D/A
Supply Ability: 200 sets/month

Baby Pacifier Making Machine Liquid Silicone Rubber Injection Molding Machine

Description
Name: Baby Pacifier Making Machine Liquid Silicone Rubber Injection Molding Machine Plastic Type: Liquid Silicone
Usage: Silicone Baby Pacifier Clamping Force: 120 Tons
After-sales Service Provided: 1 Year Oil Tank Capacity: 410L
Advantage: Easy To Operate Color: White & Blue & Yellow
Highlight:

Baby Pacifier Making Machine

Baby Pacifier Making Machine Liquid Silicone Rubber Injection Molding Machine



TAIFU 35-ton silicone liquid silicone rubber injection molding machine is designed to produce high-quality silicone products using liquid silicone rubber material. With its precision, stability, efficiency, and customization options, it provides a reliable solution for manufacturing silicone products with consistent quality and performance.



We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solutions.



1. Sepcifications:



Items Unit TFV3-120R2-LSR
Injection Unit
Screw Diameter mm 50 55 60
Theoretical Injection Volume cm³ 314 380 452
Injection Weight g 346 418 498
Max. Injection Pressure Mpa 115 95 80
Injection Rate cm³/s 115 95 80
Injection Speed mm/s 126
Screw Speed Rotation r.p.m 10~280
Nozzle Out From Platens mm ≥45
Clamping Unit
Clamping Force KN 1176(120)
Clamping Stroke mm 280
Ejector Force KN 45(4.6)
Others
System Pressure Mpa 13.7(140)
Oil Tank Capacity L 410
Motor Power KW 18+2.2
Heater Power KW 7.0



2. Features:



  • Suitable for liquid silicone injection molding of products with inlays and multi-purpose liquid silicone injection molding processes

  • Multiple models of single slide (S), double slide (SD) or disc (R) are available, which not only improves safety but also increases production efficiency by 30%-50%.

  • Digitally adjusted multi-stage precision mold electric heating temperature control

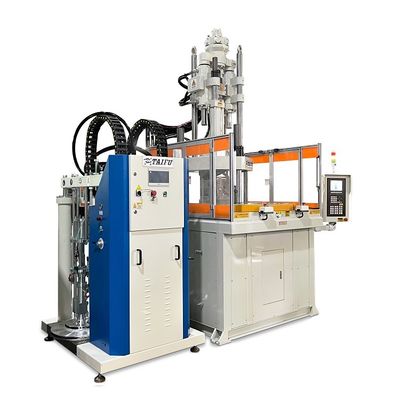

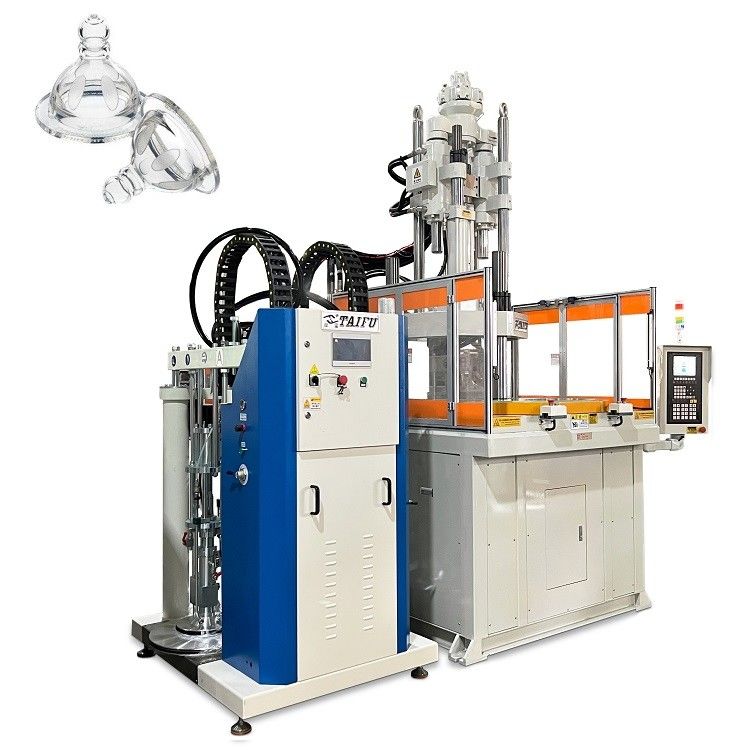

3. Machine Pictures:



Baby Pacifier Making Machine Liquid Silicone Rubber Injection Molding Machine 0

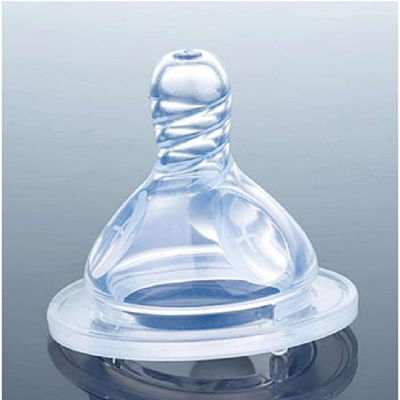

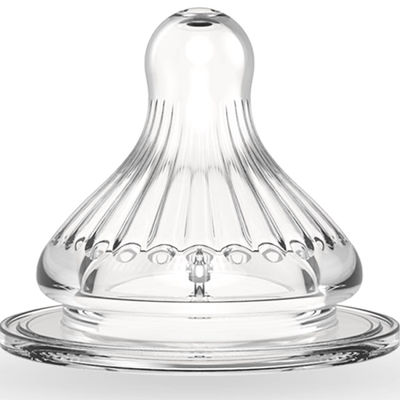

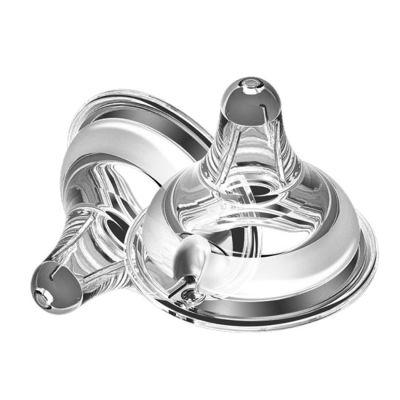

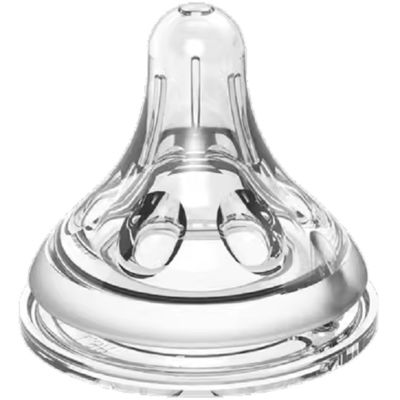

4. Applications:



Baby Pacifier Making Machine Liquid Silicone Rubber Injection Molding Machine 1Baby Pacifier Making Machine Liquid Silicone Rubber Injection Molding Machine 2Baby Pacifier Making Machine Liquid Silicone Rubber Injection Molding Machine 3Baby Pacifier Making Machine Liquid Silicone Rubber Injection Molding Machine 4







5. FAQ:



Q: What are the 4 types of silicon?

A: Silicon or other semiconductor materials used for solar cells can be single crystalline, multicrystalline, polycrystalline or amorphous.



Q: Are you a trading company or manufacturer?

A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.



Q: How long is your delivery time?

A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.



Q: What are your terms of payment?

A: 30%TT in advance, 70% balance before shipment. or L/C at sight.



Q: How long is the warranty time?

A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.



Q: Can silicone rubber be injection Moulded?

A: Injection molding of Liquid Silicone Rubber (LSR) is a process used to produce pliable, durable parts in high volumes.
