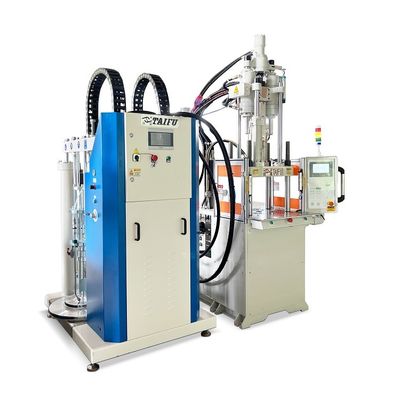

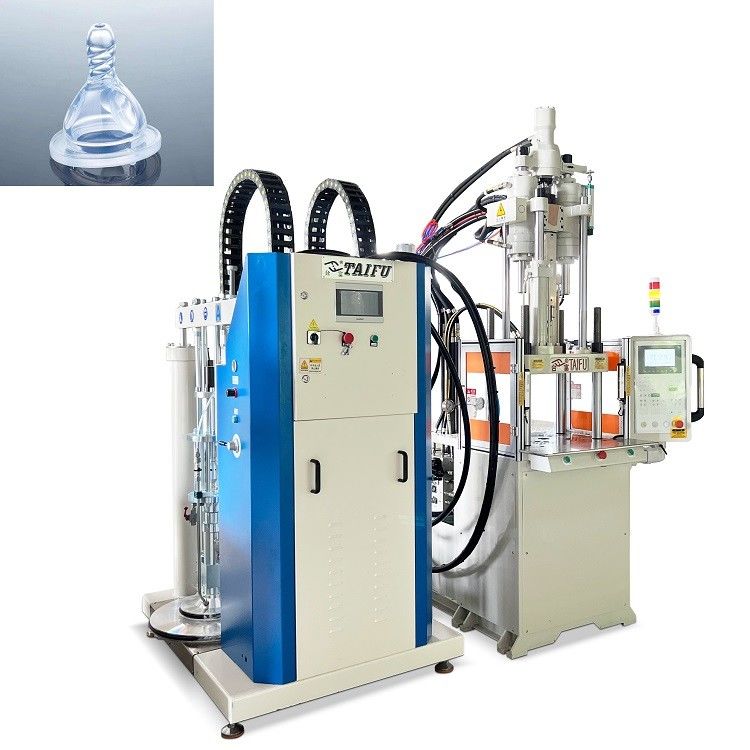

Silicone Vertical Injection Molding Machine For Making Silicone Baby Product
It is available to customize machines to meet your...
Company Production -TAIFU-.pdf
TAIFU-Product Catalog -.pdf
We are a professional manufacturer of vertical injection molding machines with 17 years of manufacturing experience. The standard vertical injection molding machine is one of our main products. The clamping force range from 35 tons to 1800 tons.
The machine is equipped with advanced temperature control technology, enabling precise adjustment of the multi-stage PID precision mold electric heating temperature. This feature ensures that the LSR material is heated to the optimal temperature, resulting in perfectly formed the silicone knife handles. The digital control system allows for accurate temperature adjustment, contributing to consistent and high-quality product output. It is now also widely used in the medical and electronics industries.
We can customize according to customer needs!
Please don't hesitate to contact us if you are interested.
| ITEMS |
UNIT |
TFV4-35-LSR |
| INJECTION UNIT |
Screw stroke |
mm |
100 |
| Screw Diameter |
mm |
12 |
14 |
| Theoretical Injection Volume |
cm3 |
11 |
15 |
| Injection Weight(PS) |
g |
12 |
17 |
| oz |
0.44 |
0.60 |
| Screw Speed Rotation |
r.p.m |
10~300 |
| Positioning ring diameter |
mm |
110 |
| CLAMPING UNIT |
Clamping Force |
KN(ton) |
343(35) |
| Clamping Stroke |
mm |
200 |
| QTY of Ejector |
pcs |
1 |
| Top bar spacing |
mm |
40 |
| Ejector Distance |
mm |
100 |
| Ejector Force |
KN(ton) |
17.2(1.75) |
| OTHERS |
System Pressure |
Mpa(kgf/cm2) |
13.7(140) |
| Electric Power |
KW |
7.5 |
| Heater Power |
KW |
6*4 |
| Machine Dimensions |
L*W |
m |
1.7*1.2 |
| H |
m |
Min:2.1(Max:2.8) |
| Cooling water capacity |
L/min |
35 |
| Machine Weight |
ton |
1.6 |
· WHO WE ARE
TAIFU Machinery is a professional manufacturer of vertical injection molding machines integrated with strong capabilities of R&D, manufacturing and services, with more than 15 years manufacturing experience; 100 employees; 15,000 square feet of manufacturing floor spaces and with facility in the Dongguan city, Guangdong province, China. We are certified by ISO9001, CE and patents 20 inventions.
We aims to supply quality products and excellent services to create value for customers on the basis of integrity, innovation, and win-win cooperation. TAIFU Machinery will be your most valuable and reliable partner in business.
· OFFICE AREA
We have 15,000 square feet of manufacturing floor space and with facilities in China. All the machines are manufactured by our own employees in our own factory.
· Parts processing center
- Machine assembly workshop
- Finished product machine shop
- PHOTOS OF DIFFERENT EXHIBITIONS
We products and delivers more than 2,000 sets of vertical injection molding machines annually. All the machines will be packed well before shipment.
We provide one-stop solutions of plastic injection molding from raw material to automation, trying to create more values for our customers.
For more than 15 years, we have recognized our customers as long-term partners, growing together. Take advantage of this global strength, and grow with us as we grow with you.
There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.
There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.
Your Professional Vertical Injection Molding Machine Manufacturer-TAIFU
We are ready to provide a well-built, high-performance products. Contact Us Now!
Q1: Are you a trading company or manufacturer?
A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.
Q2: What are the advantages of liquid silicone rubber injection molding?
A: Liquid silicone rubber offers great sealing benefits. It offers high resistance to water, ozone, weather and extreme temperatures, ranging from -65℃ to 200℃. Injection molding with this type of material gives excellent resistance properties to the finished part.
Q3: What are your payment terms?
A:T/T 50% in deposite,50% before departure.
Q4: How about your delivery time?
A:Generally speaking, it will take 20 to 45 days after receiving the advance payment. The specific delivery time depends on
Regarding your order and quantity.
Q5:How do you handle packaging and shipping?
A: Our spool are plastic-lined inside and packaged in cartons for safe transportation.However,we can also customize the packaging according to your specific requirements.
If you are interested in it, please contact me without hesitation!
