Double Slide LSR Silicone Vertical Injection Molding Machine For Silicone Ring

Certification
China Dongguan Tai Fu Machinery co., LTD certification
China Dongguan Tai Fu Machinery co., LTD certification
Customer Reviews
A very nice machine, high efficiency, not expensive, and of good quality. It has not broken down after using it for 5 years.

—— Kann

Excellent machine, I will repurchase five sets

—— Amir

I'm Online Chat Now

Double Slide LSR Silicone Vertical Injection Molding Machine For Silicone Ring

Double Slide LSR Silicone Vertical Injection Molding Machine For Silicone Ring
Double Slide LSR Silicone Vertical Injection Molding Machine For Silicone Ring Double Slide LSR Silicone Vertical Injection Molding Machine For Silicone Ring Double Slide LSR Silicone Vertical Injection Molding Machine For Silicone Ring Double Slide LSR Silicone Vertical Injection Molding Machine For Silicone Ring Double Slide LSR Silicone Vertical Injection Molding Machine For Silicone Ring

Large Image :  Double Slide LSR Silicone Vertical Injection Molding Machine For Silicone Ring

Product Details:
Place of Origin: China
Brand Name: TAIFU
Certification: CE, ISO9001
Model Number: TFV4-120SD-LSR
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: All the machines are fixed and well packaged in the plywood cases.
Delivery Time: Negotiable
Payment Terms: T/T, L/C
Supply Ability: 220 set/month

Double Slide LSR Silicone Vertical Injection Molding Machine For Silicone Ring

Description
Product Name: Double Slide LSR Silicone Vertical Injection Molding Machine Model: TFV4-120SD-LSR
Used For: Silicone Ring Oil Tank Capacity: 340
Warranty Time: 1 Year Power: 18+2.2 KW
Highlight:

Silicone Ring LSR Injection Molding Machine

,

Double Slide LSR Injection Molding Machine

,

Ring Silicone Vertical Injection Molding Machine



We are a professional manufacturer of vertical injection molding machines with 17 years of manufacturing experience. The double slide liquid silicone vertical injection molding machine is one of our main products.

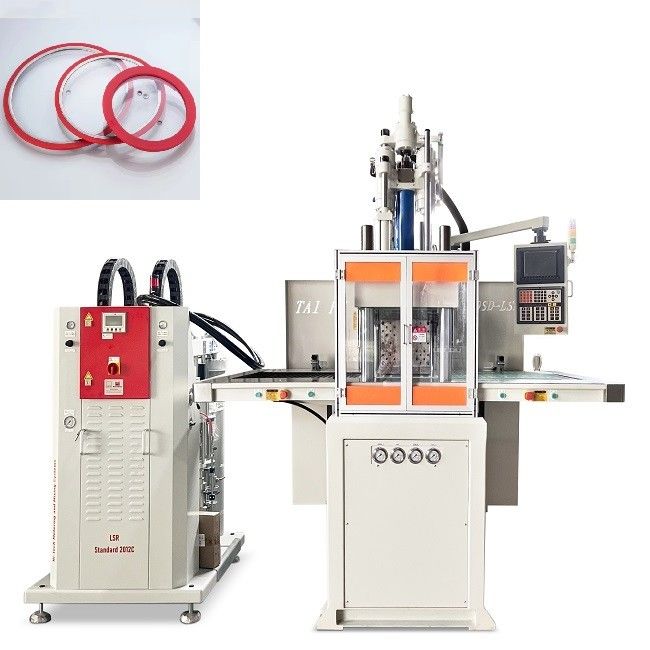

Vertical mold clamping, vertical injection, double sliding mould structure. After the injection molding is completed, the product slides out of the upper template space, making it easier for workers to operate. At the same time, robots and automation can be optionally installed for fully automated production. lt is now also widely used for medical, food, beverage and baby supplies.

We can customize and develop according to the actual needs of customers and provide themost precise, efficient and economical personalized combination solutions.

Please don't hesitate to contact us if you are interested.

Double Slide LSR Silicone Vertical Injection Molding Machine For Silicone Ring 0
ITEMS UNIT TFV4-120SD-LSR
INJECTION UNIT
Screw Stroke mm 160
Screw Diameter mm 42 45 50
Theoretical Injection Volum cm3 222 254 314
Injection Weight g 244 280 346
oz 8.60 9.87 12.19
Injection Pressure Mpa 163 142 115
kgf/cm2 1667 1452 1176
Screw Speed Rotation r.p.m 10-300
Positioning Ring Diameter mm 120
CLAMPING UNIT
Clamping Force kN(tf) 1176(120)
QTY Of Ejector pcs 3
Distance BEtween Ejectors mm 80
Ejector Distance mm 100
Ejector Force kN(tf) 45(4.6)
OTHER
System Pressure Mpa(kgf/cm2) 13.7(140)
Oil Tank Capacity L 340
Electric Power KW 18+2.2
Heater Power KW 6*6
Machine Dimensions m 2.4*2.25*3.3(Max:4.1)
Cooling water capacity L/min 50
Machine Weight ton 7



Double Slide LSR Silicone Vertical Injection Molding Machine For Silicone Ring 1
Double Slide LSR Silicone Vertical Injection Molding Machine For Silicone Ring 2
Double Slide LSR Silicone Vertical Injection Molding Machine For Silicone Ring 3
Double Slide LSR Silicone Vertical Injection Molding Machine For Silicone Ring 4Double Slide LSR Silicone Vertical Injection Molding Machine For Silicone Ring 5Double Slide LSR Silicone Vertical Injection Molding Machine For Silicone Ring 6Double Slide LSR Silicone Vertical Injection Molding Machine For Silicone Ring 7
Double Slide LSR Silicone Vertical Injection Molding Machine For Silicone Ring 8
Double Slide LSR Silicone Vertical Injection Molding Machine For Silicone Ring 9
Double Slide LSR Silicone Vertical Injection Molding Machine For Silicone Ring 10
  • WHO WE ARE

TAIFU Machinery is a professional manufacturer of vertical injection molding machines integrated with strong capabilities of R&D, manufacturing and services, with more than 15 years manufacturing experience; 100 employees; 15,000 square feet of manufacturing floor spaces and with facility in the Dongguan city, Guangdong province, China. We are certified by ISO9001, CE and patents 20 inventions.

We aims to supply quality products and excellent services to create value for customers on the basis of integrity, innovation, and win-win cooperation. TAIFU Machinery will be your most valuable and reliable partner in business.

Double Slide LSR Silicone Vertical Injection Molding Machine For Silicone Ring 11

  • OFFIC AREA

Double Slide LSR Silicone Vertical Injection Molding Machine For Silicone Ring 12

Double Slide LSR Silicone Vertical Injection Molding Machine For Silicone Ring 13

  • FACTORY AREA

We have 15,000 square feet of manufacturing floor space and with facilities in China. All the machines are manufactured by our own employees in our own factory.

  • Parts peosessing center

Double Slide LSR Silicone Vertical Injection Molding Machine For Silicone Ring 14

  • Machine assembly wproshop

Double Slide LSR Silicone Vertical Injection Molding Machine For Silicone Ring 15

  • Warehouse

Double Slide LSR Silicone Vertical Injection Molding Machine For Silicone Ring 16

  • Finished product machine shop

Double Slide LSR Silicone Vertical Injection Molding Machine For Silicone Ring 17

  • PHOTOS OF DIFFERENT EXHIBITIONS

Double Slide LSR Silicone Vertical Injection Molding Machine For Silicone Ring 18

  • DELIVERY

We products and delivers more than 2,000 sets of vertical injection molding machines annually. All the machines will be packed well before shipment.



Double Slide LSR Silicone Vertical Injection Molding Machine For Silicone Ring 19

  • CUSTOMER SITES

We provide one-stop solutions of plastic injection molding from raw material to automation, trying to create more values for our customers.

Double Slide LSR Silicone Vertical Injection Molding Machine For Silicone Ring 20

  • COOPERATIVE CLIENTS

For more than 15 years, we have recognized our customers as long-term partners, growing together. Take advantage of this global strength, and grow with us as we grow with you.

Double Slide LSR Silicone Vertical Injection Molding Machine For Silicone Ring 21

  • WHAT WE DO

There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.

  • GROUP PHOTO OF EMPLOYEES

Double Slide LSR Silicone Vertical Injection Molding Machine For Silicone Ring 22



Your Professional Vertical Injection Molding Machine Manufacturer-TAIFU

We are ready to provide a well-built, high-performance products. Contact Us Now!

Double Slide LSR Silicone Vertical Injection Molding Machine For Silicone Ring 23

Double Slide LSR Silicone Vertical Injection Molding Machine For Silicone Ring 24

Q1:Are you a trading company or manufacturer?
A:We are a factorylocated in Dongguan city-thelargest industrial manufacturing area in China. Althe machines are manufactured by our ownemployees in our own factory.


Q2: How is the product quality?
A:Unique precision sealing needle design, the nozzle hole and sealing needle seam can achieve no flash and no dead glue, ensuring the high quality of the product.


Q3: What are your payment terms?
A:T/T 50% in deposite,50% before departure.


Q3: Packaging and shipping?
A:The spool is plastic-covered inside and cartoned outside. Or according to your request.



Q4: What fields are silicone injection molding machines suitable for?
LSR silicone injection molding machines are widely used in many fields such as baby products, medical equipment, electronics, and automobiles.


Q5: How about your delivery time?
A:Generally speaking, it will take 20 to 45 days after receiving the advance payment. The specific delivery time depends on
Regarding your order and quantity.





If you are interested in it, please contact me without hesitation!
