120 Ton LSR Silicone Injection Molding Machine For Medical Silicone Product

120 Ton LSR Silicone Injection Molding Machine For Medical Silicone Product
120 Ton LSR Silicone Injection Molding Machine For Medical Silicone Product 120 Ton LSR Silicone Injection Molding Machine For Medical Silicone Product 120 Ton LSR Silicone Injection Molding Machine For Medical Silicone Product

Large Image :  120 Ton LSR Silicone Injection Molding Machine For Medical Silicone Product

Product Details:
Place of Origin: Dongguan, China
Brand Name: TAIFU
Certification: CE, ISO9001
Model Number: TFWB4-120SD-LSR
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: All the machines are fixed and well packaged in the plywood cases.
Delivery Time: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 250 sets/month
Contact Now

120 Ton LSR Silicone Injection Molding Machine For Medical Silicone Product

Description
Name: 120 Ton LSR Silicone Injection Molding Machine Max Clamping Force: 120 Tons
Plastic Type: Liquid Silicone After-sales Service Provided: Provided
Motor: Servo Motor Usage: Medical Silicone Products
Advantage: Low Work Table Type: Vertical
Highlight:

120 Ton Injection Molding Machine

,

Medical Silicone Product Injection Molding Machine

120 Ton LSR Silicone Injection Molding Machine For Medical Silicone Product



The Silicone Phone Case LSR Silicone Injection Molding Machine is a specialized equipment designed for the production of silicone phone cases using the Liquid Silicone Rubber (LSR) injection molding process. This particular machine has a tonnage capacity of 120 tons, which refers to its clamping force.



Taifu's new generation of large two-platen ultra-low table disc machine, with a clamping force of 120Ton~1800Ton, is suitable for injection molding and multi-purpose injection molding of large insert products.



LSR Silicone Injection Molding Machine is suitable for many industries such as automotive, electrical and medical device. With its unique design and excellent performance, it is the ideal choice for producing high-quality, precision LSR silicone products.



1. Sepcifications:



  UNIT TFWB3-120R2 TFWB3-160R2 TFWB3-200R2
INJECTION UNIT Shooter configuration code name Z12 Z16 Z16
Screw stroke mm 160 200 200
Screw Diameter mm 36 40 45 45 50 55 50 55 60
Theoretical Injection Volume cm3 163 201 254 318 393 475 393 475 565
Injection Weight(PS) g 151 187 237 296 365 442 365 442 526
oz 5.34 6.60 8.35 10.43 12.88 15.59 12.88 15.59 18.55
Max.Injection Pressure Mpa 222 180 142 218 177 146 206 170 143
kgf/cm2 2269 1838 1452 2226 1803 1490 2103 1738 1460
Injection Rate cm3/s 128 158 200 167 206 249 259 314 373
Max Injection Speed mm/s 126 105 132
Screw Speed Rotation r.p.m 0-260 0-260 0-260
Positioning ring diameter mm 120 120 150
Nozzle Out From Platens mm ≥45 ≥45 ≥45
CLAMPING UNIT Clamping Force KN(tf) 1176(120) 1568(160) 1960(200)
Clamping Stroke mm 500 500 600
Min.Mold Thickness mm 280 300 350
Max.Opening mm 780 800 950
(L*W)Max.Mould Size mm 420*420/560*360 520*520/700*450 570*570/800*470
Number of turntable stations mm 2 2 2
(D) Rotary Table Size mm φ1200 φ1400 φ1600
QTY of Ejector pcs 5 5 5
Top bar spacing mm 80 100 125
Ejector Distance mm 100 110 150
Ejector Force KN(tf) 45(4.6) 45(4.6) 45(4.6)
OTHERS System Pressure Mpa(kgf/cm2) 13.7(140) 13.7(140) 13.7(140)
Oil Tank Capacity L 280 350 450
Electric Power KW 18+2.2 22+2.2 31+2.2
Heater Power KW 10.7 13.7 13.7
Machine Dimensions L*W m 2.5*2.0 2.8*2.2 3.5*2.2
H m Min:2.7(Max:3.7) Min:3.1(Max:4.0) Min:3.45(Max:4.6)
Cooling water capacity L/min 50 50 60
Work table height mm 780+(70) 800+(80) 850+(80)
Machine Weight ton 7.0 10.0 14.8



2. Features:



  • Super large mold size and mold opening stroke, adaptable to more molds.
  • The height of the whole machine is 25~30% lower than the traditional one with the same tonnage.
  • The workbench height is 0.8 meters, which is about 50~75% lower than the traditional workbench of the same tonnage model.

3. Machine Pictures:

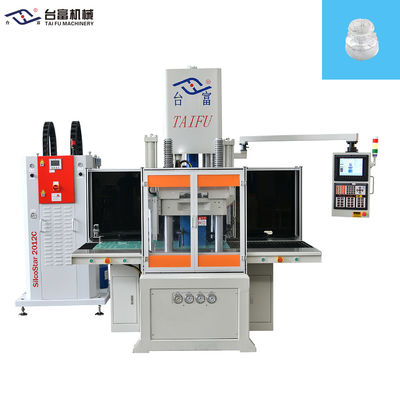

120 Ton LSR Silicone Injection Molding Machine For Medical Silicone Product 0

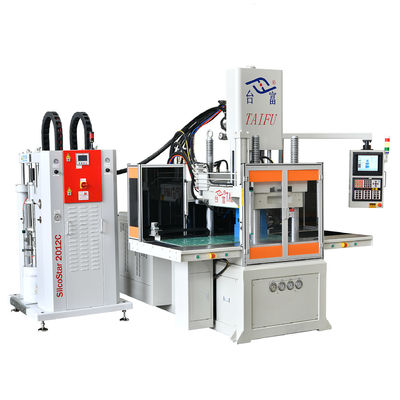

120 Ton LSR Silicone Injection Molding Machine For Medical Silicone Product 1



4. Applications:

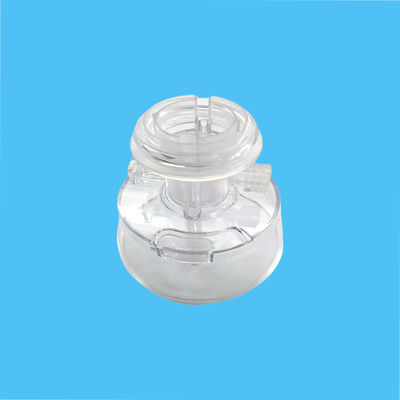

120 Ton LSR Silicone Injection Molding Machine For Medical Silicone Product 2



5. FAQ:



Q: Are you a trading company or manufacturer?

A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.



Q: What are the advantages of liquid silicone rubber injection molding?

A: Liquid silicone rubber offers great sealing benefits. It offers high resistance to water, ozone, weather and extreme temperatures, ranging from -65℃ to 200℃. Injection molding with this type of material gives excellent resistance properties to the finished part.



Q: How long is the warranty time?

A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.



Q: What are your terms of payment?

A: 30%TT in advance, 70% balance before shipment. or L/C at sight.



If you are interested in our machines, please do not hesitate to CONTACT US!
