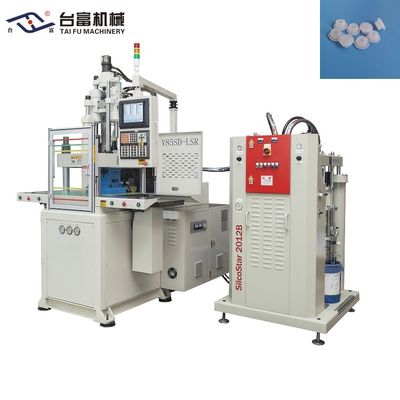

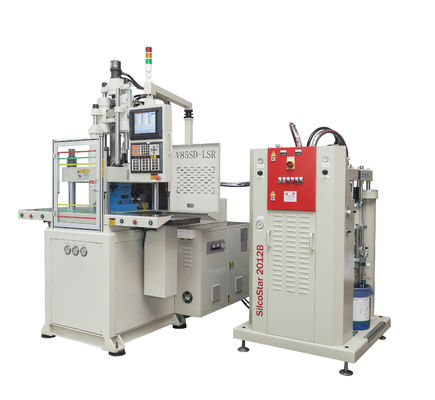

Vertical Double Slide LSR Injection Molding Machine For T-Type Rubber Stopper
The disc or double slide plate design (one upper and two lower molds) makes it more convenient to pick and place parts. The pause time of LSR thermosetting molding can also be used to allow the operator to pick and place and clean the mold, which improves production efficiency. Digitally adjust multi-stage PID precision mold electric heating temperature control to make the product perfectly formed.
Equipped with German "2KM" (20/200L) or Taifu's own liquid silicone feeding system, special feeding injection design, more accurate feeding measurement.
Each injection molding time of the silicone machine is a little longer than the plastic molding process. For example, plastic products can be formed in a few seconds or more than ten seconds, while silicone products can take about a minute or more to form.

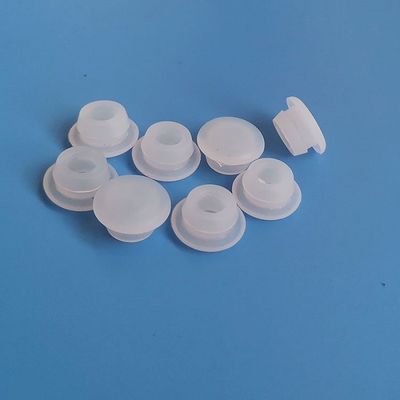

This T-Type stopper is one kind of waterproof and dustproof silicone stopper.
| DONGGUAN TAIFU MACHINEY CO.,LTD |
| TFV4-120SD-LSR Technical Parameters |
| ITEMS |
UNIT |
Technical Parameters |
| INJECTION UNIT |
| Screw stroke |
mm |
160 |
| Screw Diameter |
mm |
45 |
50 |
| Theoretical Injection Volume |
cm3 |
254 |
314 |
| Injection Weight(LSR) Proportion 1.1 |
g |
280 |
346 |
| |
oz |
9.87 |
12.19 |
| Max.Injection Pressure |
Mpa |
142 |
115 |
| |
kgf/cm2 |
1452 |
1176 |
| Screw Speed Rotation |
r.p.m |
10~280 |
| Positioning ring diameter |
mm |
120 |
| CLAMPING UNIT |
| Clamping Force |
kN(tf) |
1176(120) |
| QTY of Ejector |
pcs |
3 |
| Top bar spacing |
mm |
80 |
| Ejector Distance |
mm |
100 |
| Ejector Force |
kN(tf) |
45(4.6) |
| OTHERS |
| System Pressure |
Mpa(kgf/cm2) |
13.7(140) |
| Oil Tank Capacity |
L |
340 |
| Electric Power |
KW |
18+2.2 |
| Mechanical Dimensions |
L*W |
m |
2.4*2.25 |
| |
H(no shock absorber ) |
m |
Min:3.3(Max:4.1) |
| Cooling water capacity |
L/min |
50 |
| Machine Weight |
ton |
7.00 |
TAIFU Machinery is a professional manufacturer of vertical injection molding machines integrated with strong capabilities of R&D, manufacturing and services, with more than 15 years manufacturing experience; 100 employees; 15,000 square feet of manufacturing floor spaces and with facility in the Dongguan city, Guangdong province, China. We are certified by ISO9001, CE and patents 20 inventions.
We aims to supply quality products and excellent services to create value for customers on the basis of integrity, innovation, and win-win cooperation. TAIFU Machinery will be your most valuable and reliable partner in business.
We have 15,000 square feet of manufacturing floor space and with facilities in China. All the machines are manufactured by our own employees in our own factory.
- Machine assembly wproshop
- Finished product machine shop
- PHOTOS OF DIFFERENT EXHIBITIONS
We products and delivers more than 2,000 sets of vertical injection molding machines annually. All the machines will be packed well before shipment.
We provide one-stop solutions of plastic injection molding from raw material to automation, trying to create more values for our customers.
For more than 15 years, we have recognized our customers as long-term partners, growing together. Take advantage of this global strength, and grow with us as we grow with you.
There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.
Your Professional Vertical Injection Molding Machine Manufacturer-TAIFU
We are ready to provide a well-built, high-performance products. Contact Us Now!
SELLING POINT:
1.Efficient and precise production capabilities
2.Excellent material adaptability
3.Reliable and stable performance
4.Easy to operate and maintain
Q1:How productive is the machine?
A:The dual-slide design of the silicone injection molding machine makes it easier to pick up parts. The pause time of LSR thermoset molding can also be used to allow the operator to clean and pick up the mold, greatly increasing production efficiency.
Q2: How is the product quality?
A:Unique precision sealing needle design, the nozzle hole and sealing needle seam can achieve no flash and no dead glue, ensuring the high quality of the product.
Q3: What are your payment terms?
A:T/T 50% in deposite,50% before departure.
Q3: Packaging and shipping?
A:The spool is plastic-covered inside and cartoned outside. Or according to your request.
Q4: What fields are silicone injection molding machines suitable for?
LSR silicone injection molding machines are widely used in many fields such as baby products, medical equipment, electronics, and automobiles.
Q5: How about your delivery time?
A:Generally speaking, it will take 20 to 45 days after receiving the advance payment. The specific delivery time depends on
Regarding your order and quantity.
