120 Ton Seal Rings LSR Silicone Injection Molding Machine With Double Slide

120 Ton Seal Rings LSR Silicone Injection Molding Machine With Double Slide
120 Ton Seal Rings LSR Silicone Injection Molding Machine With Double Slide
120 Ton Seal Rings LSR Silicone Injection Molding Machine With Double Slide 120 Ton Seal Rings LSR Silicone Injection Molding Machine With Double Slide 120 Ton Seal Rings LSR Silicone Injection Molding Machine With Double Slide 120 Ton Seal Rings LSR Silicone Injection Molding Machine With Double Slide 120 Ton Seal Rings LSR Silicone Injection Molding Machine With Double Slide

Large Image :  120 Ton Seal Rings LSR Silicone Injection Molding Machine With Double Slide

Product Details:
Place of Origin: Dongguan, China
Brand Name: TAIFU
Certification: CE, ISO9001
Model Number: TFV4-120SD-LSR
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: All the machines are fixed and well packaged in the plywood cases.
Delivery Time: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 250 sets/month
Contact Now

120 Ton Seal Rings LSR Silicone Injection Molding Machine With Double Slide

Description
Name: 120 Ton Seal Rings LSR Silicone Injection Molding Machine With Double Slide Max Clamping Force: 120 Tons
Plastic Type: Liquid Silicone After-sales Service Provided: 1 Year
Motor: Servo Motor Usage: Seal Rings
Advantage: High Productivity Type: Vertical
Highlight:

LSR Silicone Injection Molding Machine

120 Ton Seal Rings LSR Silicone Injection Molding Machine With Double Slide



The machine is equipped with advanced control system for easy operation, as well as built-in safety devices for preventing malfunction and ensuring operator safety. The double slide injection molding design ensures accurate positioning and operation of the injection mold and ensures high production efficiency and quality. The machine is also equipped with a quick tool change system to reduce downtime and improve production productivity.



LSR Silicone Injection Molding Machine is suitable for many industries such as automotive, electrical and medical device. With its unique design and excellent performance, it is the ideal choice for producing high-quality, precision LSR silicone products.



1. Sepcifications:



  UNIT TFV4-120SD

INJECTION



UNIT

 Shooter configuration code name Z12
Screw stroke mm 160
Screw Diameter mm 36 40 45
Theoretical Injection Volume cm3 163 201 254
Injection Weight(PS) g 151 187 237
oz 5.34 6.60 8.35
Max.Injection Pressure Mpa 222 180 142
kgf/cm2 2269 1838 1452
Injection Rate cm3/s 128 158 200
Max Injection Speed mm/s 126
Screw Speed Rotation r.p.m 0-260
Positioning ring diameter mm 120
Nozzle Out From Platens mm ≥45

CLAMPING



UNIT

 Clamping Force KN(ton) 1176(120)
Clamping Stroke mm 280
Min.Mold Thickness mm 280(380)
Max.Opening mm 560(660)
(L*W)Distance Between Tie Bars mm 760*380
(L*W)Max.Mould Size mm 600*540
(L*W)Skate size mm 1290*560
QTY of Ejector pcs 3
Top bar spacing mm 80
Ejector Distance mm 100
Ejector Force KN(ton) 45(4.6)
OTHERS System Pressure Mpa(kgf/cm2) 13.7(140)
Oil Tank Capacity L 350
Electric Power KW 18+2.2
Heater Power KW 13.2
Machine Size L*W*H m 2.4*2.25*3.3
Cooling water capacity L/min 50
Work Table Height mm 1340+(70)
Machine Weight ton 6.0



2. Features:



  • High Productivity
  • The double slide design (one upper mold and two lower mold) is more convenient for picking up and placing parts, and the pause time during LSR thermosetting molding can also be used.
  • Unique precision sealing needle design, nozzle hole and sealing needle seam can achieve no flash and no glue overflow.

3. Machine Pictures:

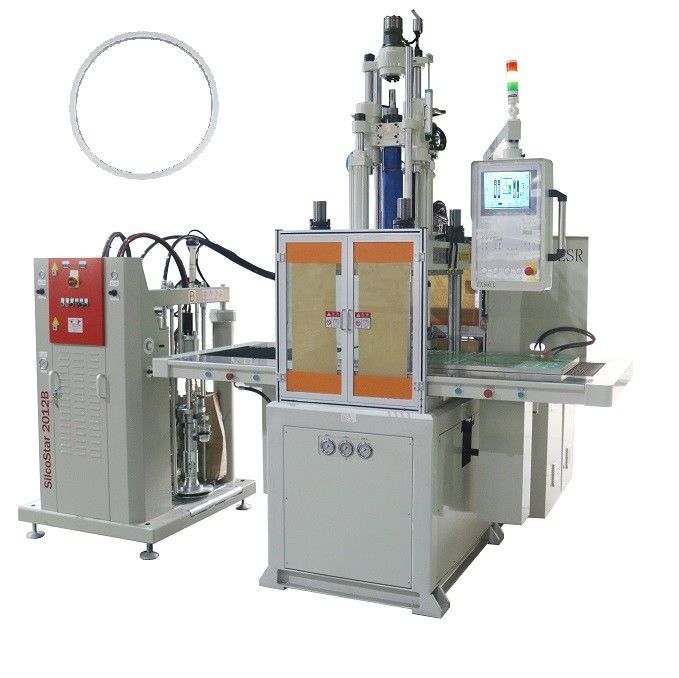

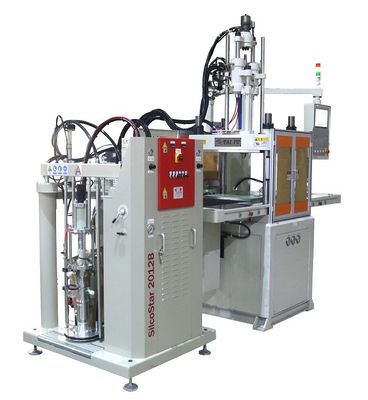

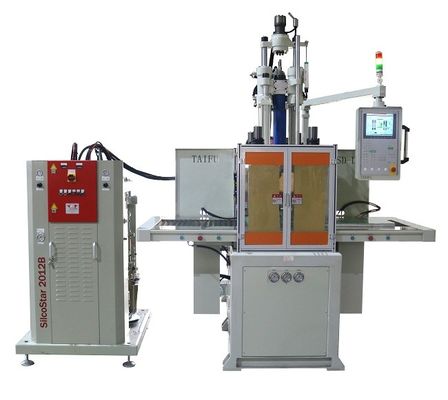

120 Ton Seal Rings LSR Silicone Injection Molding Machine With Double Slide 0



4. Applications:

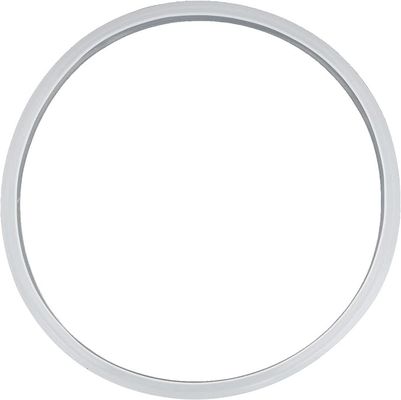

120 Ton Seal Rings LSR Silicone Injection Molding Machine With Double Slide 1



5. FAQ:



Q: How long is the warranty time?

A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.



Q: What are the advantages of liquid silicone rubber injection molding?

A: Liquid silicone rubber offers great sealing benefits. It offers high resistance to water, ozone, weather and extreme temperatures, ranging from -65℃ to 200℃. Injection molding with this type of material gives excellent resistance properties to the finished part.



Q: How long is your delivery time?

A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.



Q: Are you a trading company or manufacturer?

A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.



Q: What are your terms of payment?

A: 30%TT in advance, 70% balance before shipment. or L/C at sight.



If you are interested in our machines, please do not hesitate to CONTACT US!
