Energy Saving LSR Injection Molding Machine For Electronic Cigarette Silicone Shell

Energy Saving LSR Injection Molding Machine For Electronic Cigarette Silicone Shell
Energy Saving LSR Injection Molding Machine For Electronic Cigarette Silicone Shell Energy Saving LSR Injection Molding Machine For Electronic Cigarette Silicone Shell

Large Image :  Energy Saving LSR Injection Molding Machine For Electronic Cigarette Silicone Shell

Product Details:
Place of Origin: China, dongguan
Brand Name: TaiFu
Certification: CE,ISO9001
Model Number: TFV4-120SD-LSR
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Take fumigation packaging in wooden boxes
Delivery Time: 35 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 220 set per month
Contact Now

Energy Saving LSR Injection Molding Machine For Electronic Cigarette Silicone Shell

Description
Product Name: Energy Saving LSR Injection Molding Machine Keyword: Energy Saving
Used For: Baby Soother Application: Liquid Silicone Product
After-sales Warranty: Provided Certification: CE,ISO9001
Color: White & Yellow

Energy Saving LSR Injection Molding Machine For Electronic Cigarette Silicone Shell



The disc or double slide plate design (one upper and two lower moulds)makes it more convenient to take and place parts, and also makes use of the pause time of LSR thermosetting forming for operator to do another work of picking/placing and cleaning moulds, which greatly increases the production efficiency.



Other wise, this type is equipped with German 2KM liquid silicone feeding system. And eletrothermal temperature conture of mutil-stage precision die.



1.Technology parameters



Part Model UNIT TFV4-85SD TFV4-120SD TFV4-160SD
INJECTION UNIT 　 　 Z8 Z12 Z16
Screw stroke mm 140 160 200
Screw Diameter mm 32 36 40 36 40 45 45 50 55
Theoretical Injection Volume cm3 113 143 176 163 201 254 318 393 475
Injection Weight(PS) g 105 133 164 151 187 237 296 365 442
oz 3.69 4.67 5.77 5.34 6.60 8.35 10.43 12.88 15.59
Max.Injection Pressure Mpa 228 180 146 222 180 142 218 177 146
kgf/cm2 2331 1842 1492 2269 1838 1452 2226 1803 1490
Injection Rate cm3/s 100 126 156 128 158 200 167 206 249
Max Injection Speed mm/s 124 126 105
Screw Speed Rotation r.p.m 10~280 10~280 10~280
Positioning ring diameter mm 120 120 120
Nozzle Out From Platens mm ≥45 ≥45 ≥45
CLAMPING UNIT Clamping Force kN(tf) 833(85)/980(100) 1176(120) 1568(160)
Clamping Stroke mm 250 280 300
Min.Mold Thickness mm 230(310) 280(380) 300(400)
Max.Opening mm 480(560) 560(660) 600(700)
(L*W)Distance Between Tie Bars mm 660*350 760*380 860*420
(L*W)Max.Mould Size mm 500*475 600*540 630*630
(L*W)Skate size mm 1120*500 1290*560 1400*650
QTY of Ejector pcs 3 3 5(呈十字分布)
Top bar spacing mm 80 80 100
Ejector Distance mm 100 100 110
Ejector Force kN(tf) 26.5(2.7) 45(4.6) 45(4.6)
OTHERS System Pressure Mpa(kgf/cm2) 13.7(140)/17.2(175) 13.7(140) 13.7(140)
Oil Tank Capacity L 280 340 450
Electric Power KW 15+2.2/18+2.2 18+2.2 22+2.2
Heater Power KW 7.0 10.7 13.7
Machine Dimensions L*W m 2.1*1.9 2.4*2.25 2.5*2.4
H m Min:2.8(Max:3.5) Min:3.3(Max:4.1) Min:3.7(Max:4.6)
Cooling water capacity L/min 40 50 50
工作台面高度+(避震脚) mm 1140+(70) 1340+(70) 1480+(80)
Machine Weight ton 4.3 7.0 10.8

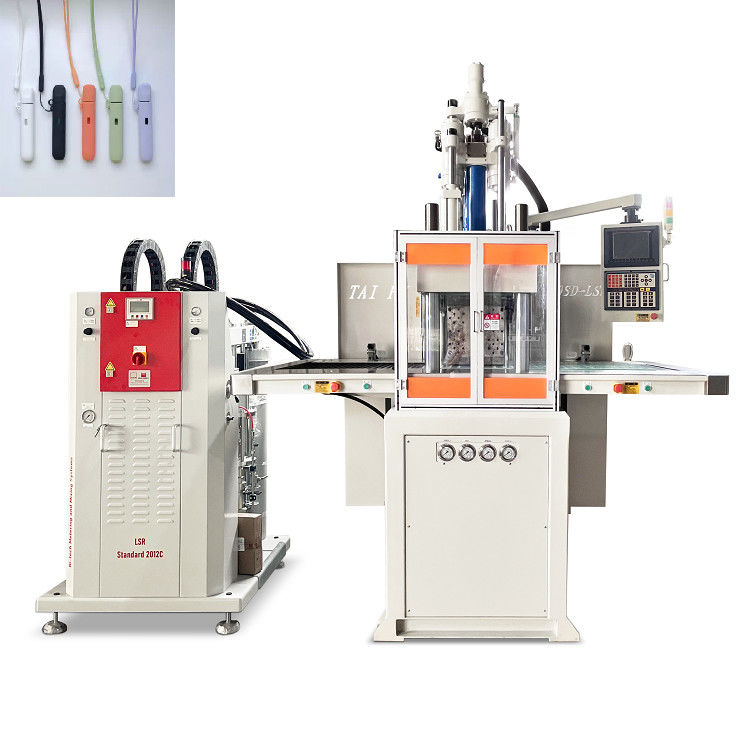

2.Machine's pictures

Energy Saving LSR Injection Molding Machine For Electronic Cigarette Silicone Shell 0

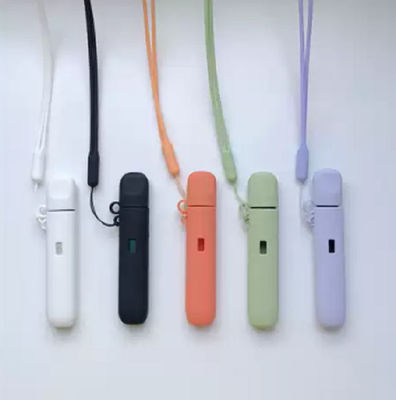

3.Application

Energy Saving LSR Injection Molding Machine For Electronic Cigarette Silicone Shell 1



4.Why choose us?


1. Best product quality and most competitive price.
2. Experienced technical personnel in production.
3. Customized design and production.
4. Excellent pre-sales and after-sales services.


5.FAQ


Q1: Do you test all goods before delivery?
Yes, we have 100% testing before delivery


Q2: What are your payment terms?
T/T 100% in advance


Q3: Can you provide OEM service?
We can provide OEM, ODM, services. It will depend on your requirements; your logo will be customized on our products.


Q4: Packaging and shipping?
The spool is plastic-covered inside and cartoned outside. Or according to your request.


Q5: How about your delivery time?
Generally speaking, it will take 20 to 45 days after receiving the advance payment. The specific delivery time depends on
Regarding your order and quantity.



If you have any questions please contact us without any hesitation!
