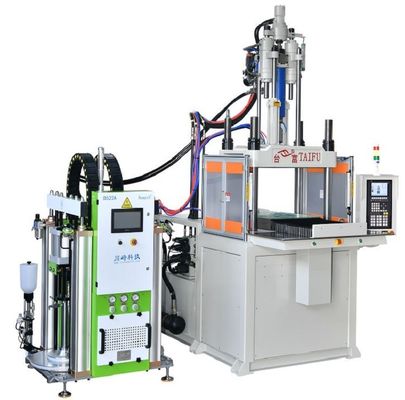

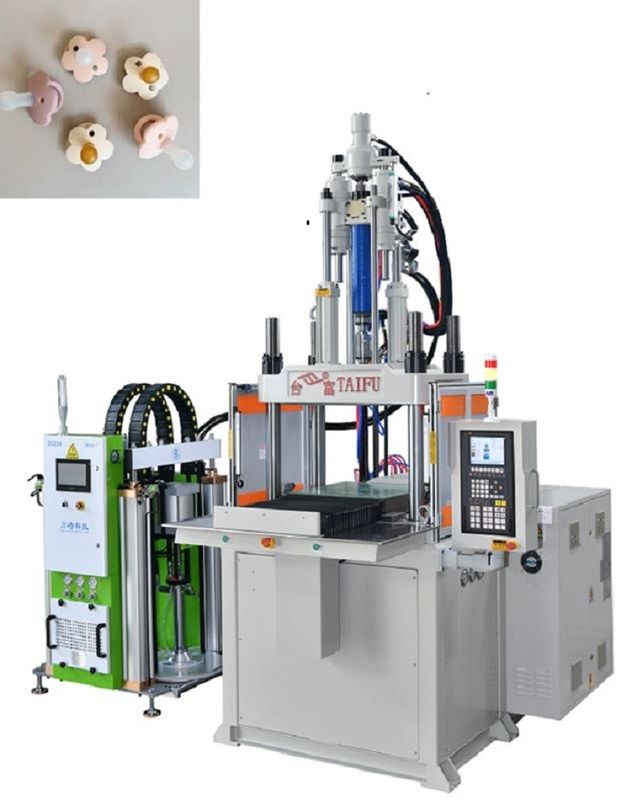

Customization Energy Saving Vertical LSR Silicone Injection Molding Machine
Taifu Machinery Co., Ltd. is a manufacturer specializing in vertical plastic injection molding machines. The company has passed ISO9001 quality system certification and CE certification.
Our products are widely used in plastic products in various industries, such as automobile manufacturing, medical device industry, cosmetics industry, etc.
On the basis of the standard model, a single sliding mold is installed to allow the machine to complete a cycle, making it easier to operate and safer. The mold closing uses a direct-pressure mother-child mold locking cylinder design to extend the service life of the mold.
1.Technology parameters
| Part Model |
UNIT |
TFV4-85SD |
TFV4-120SD |
TFV4-160SD |
| INJECTION UNIT |
|
|
Z8 |
Z12 |
Z16 |
| Screw stroke |
mm |
140 |
160 |
200 |
| Screw Diameter |
mm |
32 |
36 |
40 |
36 |
40 |
45 |
45 |
50 |
55 |
| Theoretical Injection Volume |
cm3 |
113 |
143 |
176 |
163 |
201 |
254 |
318 |
393 |
475 |
| Injection Weight(PS) |
g |
105 |
133 |
164 |
151 |
187 |
237 |
296 |
365 |
442 |
| oz |
3.69 |
4.67 |
5.77 |
5.34 |
6.60 |
8.35 |
10.43 |
12.88 |
15.59 |
| Max.Injection Pressure |
Mpa |
228 |
180 |
146 |
222 |
180 |
142 |
218 |
177 |
146 |
| kgf/cm2 |
2331 |
1842 |
1492 |
2269 |
1838 |
1452 |
2226 |
1803 |
1490 |
| Injection Rate |
cm3/s |
100 |
126 |
156 |
128 |
158 |
200 |
167 |
206 |
249 |
| Max Injection Speed |
mm/s |
124 |
126 |
105 |
| Screw Speed Rotation |
r.p.m |
10~280 |
10~280 |
10~280 |
| Positioning ring diameter |
mm |
120 |
120 |
120 |
| Nozzle Out From Platens |
mm |
≥45 |
≥45 |
≥45 |
| CLAMPING UNIT |
Clamping Force |
kN(tf) |
833(85)/980(100) |
1176(120) |
1568(160) |
| Clamping Stroke |
mm |
250 |
280 |
300 |
| Min.Mold Thickness |
mm |
230(310) |
280(380) |
300(400) |
| Max.Opening |
mm |
480(560) |
560(660) |
600(700) |
| (L*W)Distance Between Tie Bars |
mm |
660*350 |
760*380 |
860*420 |
| (L*W)Max.Mould Size |
mm |
500*475 |
600*540 |
630*630 |
| (L*W)Skate size |
mm |
1120*500 |
1290*560 |
1400*650 |
| QTY of Ejector |
pcs |
3 |
3 |
5(呈十字分布) |
| Top bar spacing |
mm |
80 |
80 |
100 |
| Ejector Distance |
mm |
100 |
100 |
110 |
| Ejector Force |
kN(tf) |
26.5(2.7) |
45(4.6) |
45(4.6) |
| OTHERS |
System Pressure |
Mpa(kgf/cm2) |
13.7(140)/17.2(175) |
13.7(140) |
13.7(140) |
| Oil Tank Capacity |
L |
280 |
340 |
450 |
| Electric Power |
KW |
15+2.2/18+2.2 |
18+2.2 |
22+2.2 |
| Heater Power |
KW |
7.0 |
10.7 |
13.7 |
| Machine Dimensions |
L*W |
m |
2.1*1.9 |
2.4*2.25 |
2.5*2.4 |
| H |
m |
Min:2.8(Max:3.5) |
Min:3.3(Max:4.1) |
Min:3.7(Max:4.6) |
| Cooling water capacity |
L/min |
40 |
50 |
50 |
| 工作台面高度+(避震脚) |
mm |
1140+(70) |
1340+(70) |
1480+(80) |
| Machine Weight |
ton |
4.3 |
7.0 |
10.8 |
2.Machine's pictures
