120 Ton LSR Silicone Injection Molding Machine For Silicone Mobilephone Case

120 Ton LSR Silicone Injection Molding Machine For Silicone Mobilephone Case
120 Ton LSR Silicone Injection Molding Machine For Silicone Mobilephone Case
120 Ton LSR Silicone Injection Molding Machine For Silicone Mobilephone Case 120 Ton LSR Silicone Injection Molding Machine For Silicone Mobilephone Case 120 Ton LSR Silicone Injection Molding Machine For Silicone Mobilephone Case

Large Image :  120 Ton LSR Silicone Injection Molding Machine For Silicone Mobilephone Case

Product Details:
Place of Origin: Dongguan, China
Brand Name: TAIFU
Certification: CE, ISO9001
Model Number: TFV4-120SD-LSR
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: All the machines are fixed and well packaged in the plywood cases.
Delivery Time: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 220 sets/month
Contact Now

120 Ton LSR Silicone Injection Molding Machine For Silicone Mobilephone Case

Description
Name: LSR Silicone Injection Molding Machine Used For Silicone Mobilephone Case Max Clamping Force: 120 Tons
Plastic Type: Liquid Silicone After-sales Service Provided: 1 Year
Motor: Servo Motor Usage: Silicone Mobilephone Case
Advantage: Double Slide Type: Vertical
Highlight:

120 Ton LSR Silicone Injection Molding Machine

,

Mobilephone LSR Silicone Injection Molding Machine

120 Ton LSR Silicone Injection Molding Machine Used For Silicone Mobilephone Case



The Silicone Mobilephone Case LSR Silicone Injection Molding Machine is a specialized equipment designed for the production of silicone mobilephone case using the Liquid Silicone Rubber (LSR) injection molding process. This particular machine has a tonnage capacity of 120 tons, which refers to its clamping force.



Taifu's new generation of large two-platen ultra-low table disc machine, with a clamping force of 120Ton~1800Ton, is suitable for injection molding and multi-purpose injection molding of large insert products.



LSR Silicone Injection Molding Machine is suitable for many industries such as automotive, electrical and medical device. With its unique design and excellent performance, it is the ideal choice for producing high-quality, precision LSR silicone products.



1. Sepcifications:



Part                       Model UNIT TFV4-85SD TFV4-120SD TFV4-160SD
INJECTION UNIT 　 　 Z8 Z12 Z16
Screw stroke mm 140 160 200
Screw Diameter mm 32 36 40 36 40 45 45 50 55
Theoretical Injection Volume cm3 113 143 176 163 201 254 318 393 475
Injection Weight(PS) g 105 133 164 151 187 237 296 365 442
oz 3.69 4.67 5.77 5.34 6.60 8.35 10.43 12.88 15.59
Max.Injection Pressure Mpa 228 180 146 222 180 142 218 177 146
kgf/cm2 2331 1842 1492 2269 1838 1452 2226 1803 1490
Injection Rate cm3/s 100 126 156 128 158 200 167 206 249
Max Injection Speed mm/s 124 126 105
Screw Speed Rotation r.p.m 10~280 10~280 10~280
Positioning ring diameter mm 120 120 120
Nozzle Out From Platens mm ≥45 ≥45 ≥45
CLAMPING UNIT Clamping Force KN(ton) 833(85)/980(100) 1176(120) 1568(160)
Clamping Stroke mm 250 280 300
Min.Mold Thickness mm 230(310) 280(380) 300(400)
Max.Opening mm 480(560) 560(660) 600(700)
(L*W)Distance Between Tie Bars mm 520*350 760*380 860*420
(L*W)Max.Mould Size mm 500*480 600*540 630*630
(L*W)Skate size mm 1120*500 1290*560 1400*650
QTY of Ejector pcs 3 3 5(呈十字分布)
Top bar spacing mm 80 80 100
Ejector Distance mm 100 100 110
Ejector Force KN(ton) 26.5(2.7) 45(4.6) 45(4.6)
OTHERS System Pressure Mpa(kgf/cm2) 13.7(140)/17.2(175) 13.7(140) 13.7(140)
Oil Tank Capacity L 280 340 450
Electric Power KW 15+2.2/18+2.2 18+2.2 22+2.2
Heater Power KW 7.0 10.7 13.7
Machine Dimensions L*W m 2.1*1.9 2.4*2.25 2.5*2.4
H m Min:2.8(Max:3.5) Min:3.3(Max:4.1) Min:3.7(Max:4.6)
Cooling water capacity L/min 40 50 50
Height of Workbench mm 1140+(70) 1340+(70) 1480+(80)
Machine Weight ton 4.3 7.0 10.8





2. Features:



  • Super large mold size and mold opening stroke, adaptable to more molds.
  • The height of the whole machine is 25~30% lower than the traditional one with the same tonnage.
  • The workbench height is 0.8 meters, which is about 50~75% lower than the traditional workbench of the same tonnage model.

3. Machine Pictures:

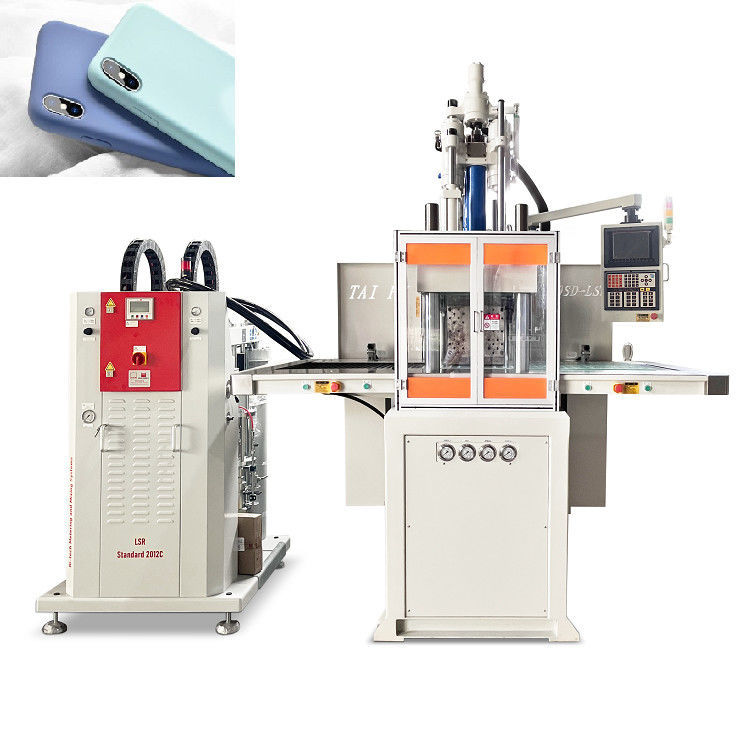

120 Ton LSR Silicone Injection Molding Machine For Silicone Mobilephone Case 0



4. Applications:

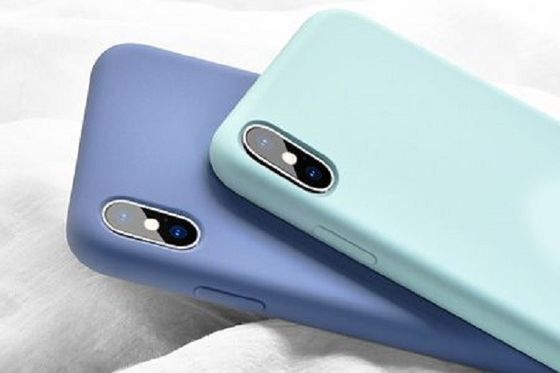

120 Ton LSR Silicone Injection Molding Machine For Silicone Mobilephone Case 1



5. FAQ:



Q: Are you a trading company or manufacturer?

A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.



Q: What are the advantages of liquid silicone rubber injection molding?

A: Liquid silicone rubber offers great sealing benefits. It offers high resistance to water, ozone, weather and extreme temperatures, ranging from -65℃ to 200℃. Injection molding with this type of material gives excellent resistance properties to the finished part.



Q: How long is the warranty time?

A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.



Q: What are your terms of payment?

A: 30%TT in advance, 70% balance before shipment. or L/C at sight.
