Liquid Silicone Rubber LSR Silicone Injection Molding Machine 160 Ton

Liquid Silicone Rubber LSR Silicone Injection Molding Machine 160 Ton
Liquid Silicone Rubber LSR Silicone Injection Molding Machine 160 Ton Liquid Silicone Rubber LSR Silicone Injection Molding Machine 160 Ton

Large Image :  Liquid Silicone Rubber LSR Silicone Injection Molding Machine 160 Ton

Product Details:
Place of Origin: Guangdong，China
Brand Name: TAIFU
Certification: CE, ISO9001
Model Number: TFV3-160R2-LSR
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: All the machines are fixed and well packaged in the plywood cases.
Delivery Time: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 210 set/month
Contact Now

Liquid Silicone Rubber LSR Silicone Injection Molding Machine 160 Ton

Description
Name: Liquid Silicone Rubber LSR Silicone Injection Molding Machine 160 Ton Clamping Force: 160 Ton
Motor: Servo Motor Usage: LSR Silicone Products
Advantage: Easy To Operate Injection Rate: 44cm³-133cm³
Type: Vertical After-sales Service Provided: 1 Year
Highlight:

Rubber LSR Silicone Injection Molding Machine

,

Liquid LSR Silicone Injection Molding Machine

Liquid Silicone Rubber LSR Silicone Injection Molding Machine 160 Ton



TAIFU liquid silicone vertical injection molding machine with German 2KM liquid silicone feeding device is an advanced injection molding equipment suitable for liquid silicone injection molding process. This machine adopts a special hydraulic water-cooled closed injection nozzle for liquid silicone and a special material tube group for liquid silicone, which can achieve a high-precision and highly stable injection process of liquid silicone.



The vertical rotary or double-slide injection molding machine has a unique design. The structure of one upper mold and two lower molds allows the operator to make full use of the time for silicone thermosetting molding. While one set of molds is performing silicone injection molding, another set of molds can pick up, place and clean products, thus greatly improving production efficiency.



In addition, the machine also has various optional functions to meet different production needs. It has been widely used in the auto parts and medical industries and can produce high-quality silicone products.



We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solutions.



1. Sepcifications:



  UNIT TFV3-85R2-LSR TFV3-120R2-LSR TFV3-160R2-LSR
Injection Unit Shooter configuration code name Z8 Z12 Z16
Screw stroke mm 140 160 200
Screw Diameter mm 32 36 40 36 40 45 45 50 55
Theoretical Injection Volume cm3 113 143 176 163 201 254 318 393 475
Injection Weight(PS) g 105 133 164 151 187 237 296 365 442
oz 3.69 4.67 5.77 5.34 6.60 8.35 10.43 12.88 15.59
Max.Injection Pressure Mpa 228 180 146 222 180 142 218 177 146
kgf/cm2 2331 1842 1492 2269 1838 1452 2226 1803 1490
Injection Rate cm3/s 100 126 156 128 158 200 167 206 249
Max Injection Speed mm/s 124 126 105
Screw Speed Rotation r.p.m 10~280 10~280 10~280
Positioning ring diameter mm 120 120 120
Nozzle Out From Platens mm ≥45 ≥45 ≥45
Claping Unit Clamping Force KN(ton) 833(85)/980(100) 1176(120) 1568(160)
Clamping Stroke mm 250 280 300
Min.Mold Thickness mm 230(310) 280(380) 300(400)
Max.Opening mm 480(560) 560(660) 600(700)
(L*W)Max.Mould Size mm 360*360/450*320 420*420/560*360 520*520/700*450
Number of turntable stations mm 2 2 2
(D) Rotary Table Size mm φ1010 φ1200 φ1400
Top bar spacing mm 80 80 100
Ejector Distance mm 100 100 110
Ejector Force KN(ton) 45(4.6) 45(4.6) 45(4.6)
Others System Pressure Mpa(kgf/cm2) 13.7(140)/17.2(175) 13.7(140) 13.7(140)
Oil Tank Capacity L 300 380 480
Electric Power KW 15+2.2/18+2.2 18+2.2 22+2.2
Heater Power KW 7.0 10.7 13.7
Machine Dimensions L*W*H m 2.3*1.8*2.7 2.5*2.0*3.3 2.8*2.2*3.7
Work Table Height mm 1150+(70) 1310+(70) 1495+(80)
Machine Weight ton 4.6 7.0 10.0



2. Features:



  • High-precision injection molding: TAIFU LSR injection molding machine adopts advanced liquid silicone injection molding technology, which can achieve high-precision injection molding of silicone. By precisely controlling parameters such as injection speed, pressure and temperature, high-quality injection molded products can be obtained.

  • Strong stability: Using a closed-loop control system, it can monitor and adjust various parameters in the injection molding process in real time to ensure the stability of the injection molding process. This helps improve product consistency and reliability.

  • fficient production: With fast injection speed and cycle time, efficient production can be achieved. At the same time, the vertical design allows operators to replace molds and pick and place products at the same time, thereby further improving production efficiency.

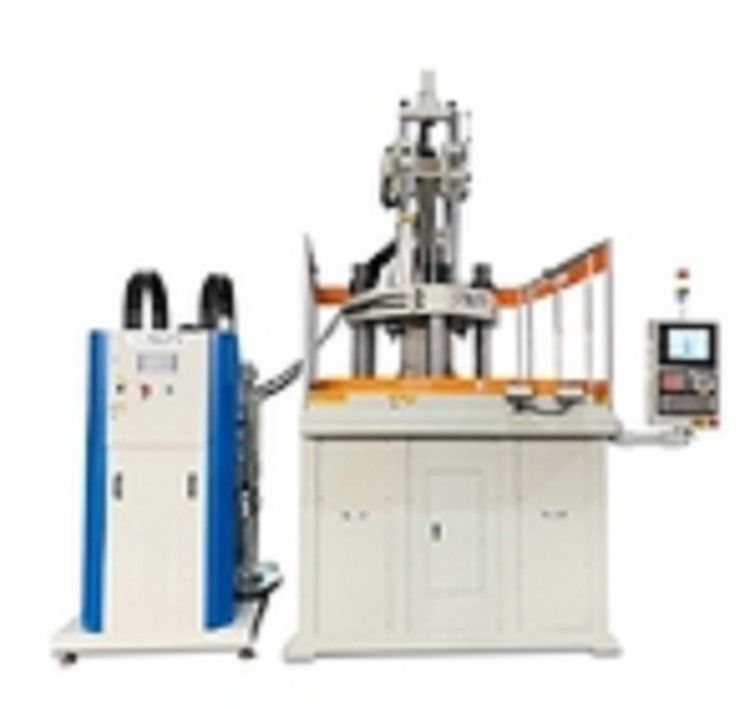

3. Machine Pictures:

Liquid Silicone Rubber LSR Silicone Injection Molding Machine 160 Ton 0

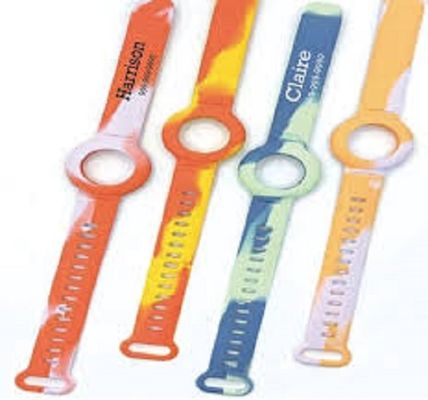

4. Applications:



Liquid Silicone Rubber LSR Silicone Injection Molding Machine 160 Ton 1









5. FAQ:



Q: What is the difference between silicone and LSR?
A: Liquid silicone rubber has high transparency, no peculiar smell, and the injection molded silicone products has a glue injection port. The LSR molded silicone products is odorless. Solid silicone rubber have to use the flavor of curing agent or other curing agents, and the product has no glue injection port.



Q: Are you a trading company or manufacturer?

A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.



Q: How long is the warranty time?

A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.



Q: How long is your delivery time?

A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.



Q: What are your terms of payment?

A: 30%TT in advance, 70% balance before shipment. or L/C at sight.



If you are interested in our machines, please do not hesitate to CONTACT US!
