High-Efficeiency Silicone LSR Injection Molding Machine 85 Ton
LSR Silicone Injection Molding Machine is an automatic vertical plastic injection molding machine which is designed for the production of high-precision and small-sized plastic parts.
It features a heating power of 6.4-10.7KW, an injection capacity of 53-254g, a mould opening stroke of 480-680mm, a mould thickness of 230-280mm, and an injection pressure of 146-222MPa. This automatic injection molding machine is easy to operate and provides a highly efficient and cost-effective production for small-sized plastic parts with superior accuracy. And it can be used for various materials such as LSR, ABS, PP, PC, PU, and so on.
Therefore, this automatic injection molding machine is suitable for a range of industries including automotive, medical, electronic, and industrial.
1. Sepcifications:
| |
UNIT |
TFV4-85S-LSR |
TFV4-85SD-LSSR |
TFV3-85R2-LSR |
| Injection Unit |
Screw stroke |
mm |
140 |
| Screw Diameter |
mm |
22 |
26 |
28 |
30 |
32 |
36 |
| Theoretical Injection Volume |
cm3 |
53 |
74 |
86 |
99 |
113 |
143 |
| Injection Weight(LSR) |
g |
59 |
82 |
95 |
109 |
124 |
157 |
| oz |
2.06 |
2.88 |
3.34 |
3.84 |
4.37 |
5.53 |
| Max.Injection Pressure |
Mpa |
248 |
178 |
153 |
133 |
117 |
93 |
| kgf/cm2 |
2531 |
1812 |
1563 |
1361 |
1196 |
945 |
| Injection Rate |
cm3/s |
74 |
103 |
119 |
137 |
156 |
197 |
| Max Injection Speed |
mm/s |
194 |
| Screw Speed Rotation |
r.p.m |
0-280 |
| Positioning ring diameter |
mm |
120 |
| Nozzle Out From Platens |
mm |
≥45 |
| Clamping Unit |
Clamping Force |
KN(ton) |
833(85) |
| Clamping Stroke |
mm |
250 |
| Min.Mold Thickness |
mm |
230(310) |
| Max.Opening |
mm |
480(560) |
| (L*W)Distance Between Tie Bars |
mm |
520*350 |
_ |
| (L*W)Max.Mould Size |
mm |
500*470 |
500*480 |
360*360 |
| (L*W)Skate size |
mm |
540*490 |
1120*500 |
φ1010 |
| QTY of Ejector |
pcs |
3 |
| Top bar spacing |
mm |
80 |
| Ejector Distance |
mm |
100 |
| Ejector Force |
KN(ton) |
26.5(2.7) |
45(4.6) |
| Others |
System Pressure |
Mpa(kgf/cm2) |
13.7(140) |
| Oil Tank Capacity |
L |
280 |
280 |
310 |
| Electric Power |
KW |
11 |
11+2.2 |
11+2.2 |
| Reserved mold electric heating power |
KW |
6*4 |
6*6 |
6*6 |
| Machine Dimensions |
L*W*H |
m |
2.2*1.5*2.8 |
2.1*1.9*2.8 |
2.3*1.8*2.7 |
| Cooling water capacity |
L/min |
40 |
| Work Table Height |
mm |
1140+(70) |
1140+(70) |
1150+(70) |
| Machine Weight |
ton |
4.00 |
4.20 |
4.60 |
2. Features:
- Contains German “2KM” (20/200L) liquid silicon feeding systerm
- LSR special material tube group, heat-insulating cold water plate, heat insulation fiberglass panels
- Unique precision sealing needle design, nozzle hole and sealing needle seam can achieve no flash and no glue overflow.

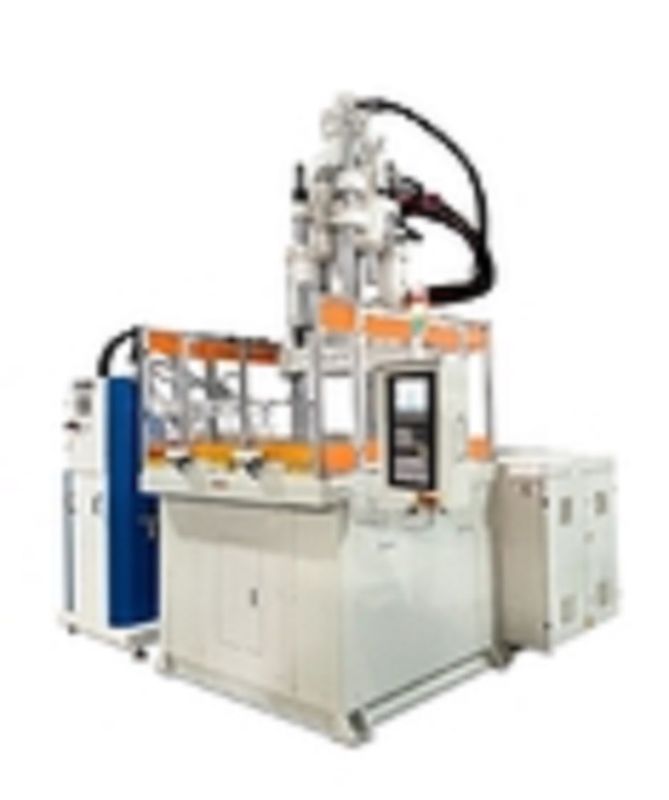

3. Machine Pictures:

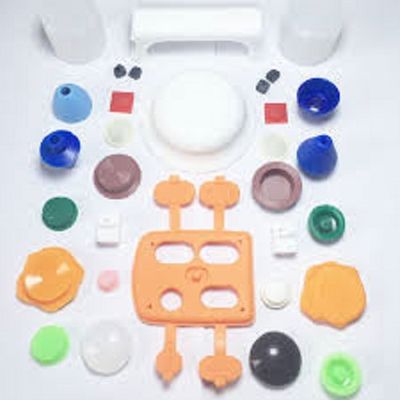

4. Applications:
5. FAQ:
Q: Are you a trading company or manufacturer?
A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.
Q: How long is your delivery time?
A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.
Q: What are the advantages of liquid silicone rubber injection molding?
A: Liquid silicone rubber offers great sealing benefits. It offers high resistance to water, ozone, weather and extreme temperatures, ranging from -65℃ to 200℃. Injection molding with this type of material gives excellent resistance properties to the finished part.
Q: What temperature is liquid silicone rubber injection molding?
A: The molds used in the injection molding of liquid silicone rubber are heated to temperatures ranging from approximately 250° – 300°.
Q: How long is the warranty time?
A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.
Q: What are your terms of payment?
A: 30%TT in advance, 70% balance before shipment. or L/C at sight.
