35 Ton Liquid Silicone Rubber Injection Molding Machine With Feeding Systerm

35 Ton Liquid Silicone Rubber Injection Molding Machine With Feeding Systerm
35 Ton Liquid Silicone Rubber Injection Molding Machine With Feeding Systerm
35 Ton Liquid Silicone Rubber Injection Molding Machine With Feeding Systerm 35 Ton Liquid Silicone Rubber Injection Molding Machine With Feeding Systerm 35 Ton Liquid Silicone Rubber Injection Molding Machine With Feeding Systerm 35 Ton Liquid Silicone Rubber Injection Molding Machine With Feeding Systerm 35 Ton Liquid Silicone Rubber Injection Molding Machine With Feeding Systerm 35 Ton Liquid Silicone Rubber Injection Molding Machine With Feeding Systerm 35 Ton Liquid Silicone Rubber Injection Molding Machine With Feeding Systerm

Large Image :  35 Ton Liquid Silicone Rubber Injection Molding Machine With Feeding Systerm

Product Details:
Place of Origin: Dongguan, China
Brand Name: TAIFU
Certification: CE, ISO9001
Model Number: TFV3-35R2-LSR
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: All the machines are fixed and well packaged in the plywood cases.
Delivery Time: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 250 sets/month

35 Ton Liquid Silicone Rubber Injection Molding Machine With Feeding Systerm

Description
Name: 35 Ton Liquid Silicone Rubber Injection Molding Machine With Feeding Systerm Clamping Force: 35 Tons
Plastic Type: Liquid Silicone After-sales Service Provided: 1 Year
Motor Power: 7.5KW Usage: Silicone Products
Advantage: Easy To Operate Color: White & Blue & Yellow

55 Ton Liquid Silicone Rubber Injection Molding Machine With Feeding Systerm



TAIFU 35-ton silicone liquid silicone rubber injection molding machine is designed to produce high-quality silicone products using liquid silicone rubber material. With its precision, stability, efficiency, and customization options, it provides a reliable solution for manufacturing silicone products with consistent quality and performance.



We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solutions.



1. Sepcifications:



Items Unit TFV3-35R2-LSR
Injection Unit
Screw Diameter mm 22 26 28
Theoretical Injection Volume cm³ 53 74 86
Injection Weight g 49 69 80
Max. Injection Pressure Mpa 248 178 153
Injection Rate cm³/s 44 62 72
Injection Speed mm/s 117
Screw Speed Rotation r.p.m 10~300
Nozzle Out From Platens mm ≥45
Clamping Unit
Clamping Force KN 343(35)/441(45)
Clamping Stroke mm 200
Ejector Force KN 26.5(2.7)
Others
System Pressure Mpa 13.7(140)/17.2(175)
Oil Tank Capacity L 200
Motor Power KW 7.5/11
Heater Power KW 3.6



2. Features:



  • Suitable for liquid silicone injection molding of products with inlays and multi-purpose liquid silicone injection molding processes

  • Multiple models of single slide (S), double slide (SD) or disc (R) are available, which not only improves safety but also increases production efficiency by 30%-50%.

  • Digitally adjusted multi-stage precision mold electric heating temperature control

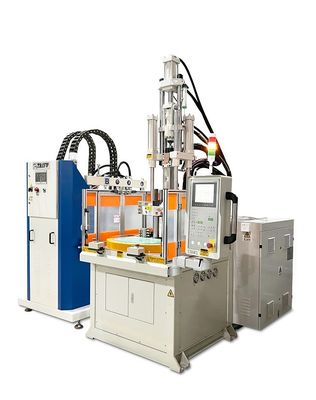

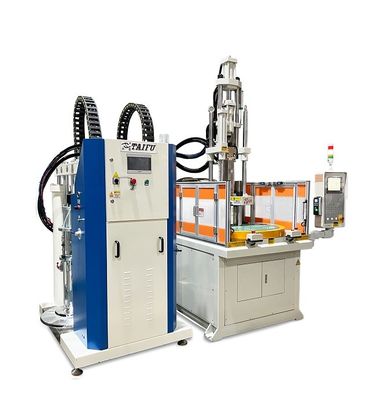

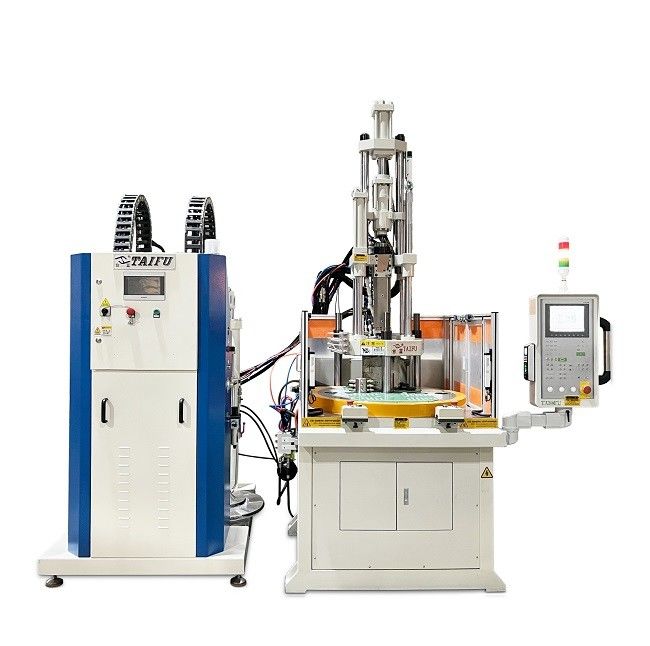

3. Machine Pictures:



35 Ton Liquid Silicone Rubber Injection Molding Machine With Feeding Systerm 0

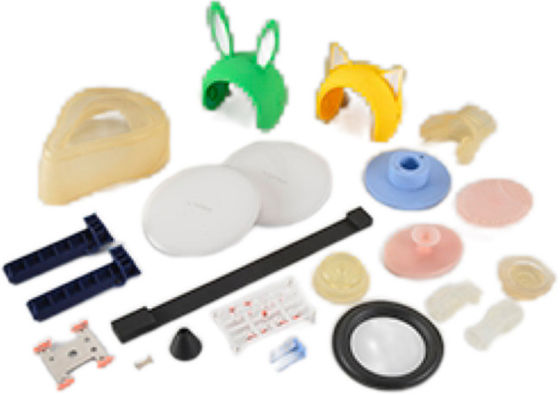

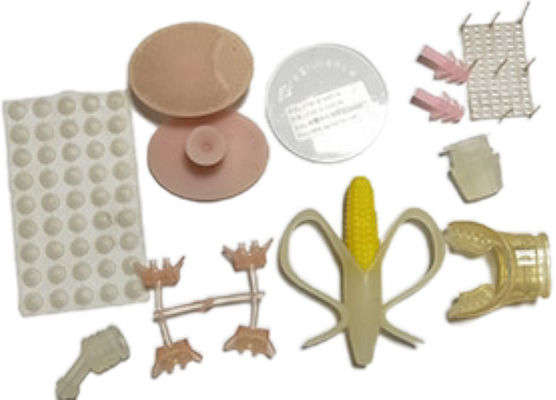

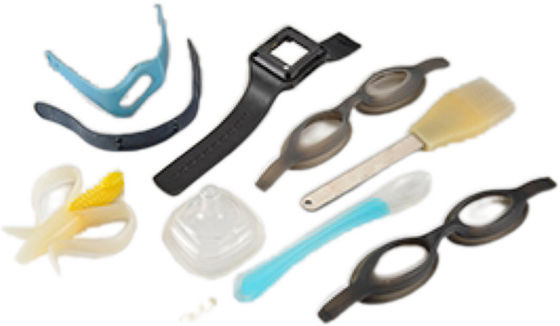

4. Applications:



35 Ton Liquid Silicone Rubber Injection Molding Machine With Feeding Systerm 1



35 Ton Liquid Silicone Rubber Injection Molding Machine With Feeding Systerm 2



5. FAQ:



Q: What are the 4 types of silicon?

A: Silicon or other semiconductor materials used for solar cells can be single crystalline, multicrystalline, polycrystalline or amorphous.



Q: Are you a trading company or manufacturer?

A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.



Q: How long is your delivery time?

A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.



Q: What are your terms of payment?

A: 30%TT in advance, 70% balance before shipment. or L/C at sight.



Q: How long is the warranty time?

A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.



Q: Can silicone rubber be injection Moulded?

A: Injection molding of Liquid Silicone Rubber (LSR) is a process used to produce pliable, durable parts in high volumes.
