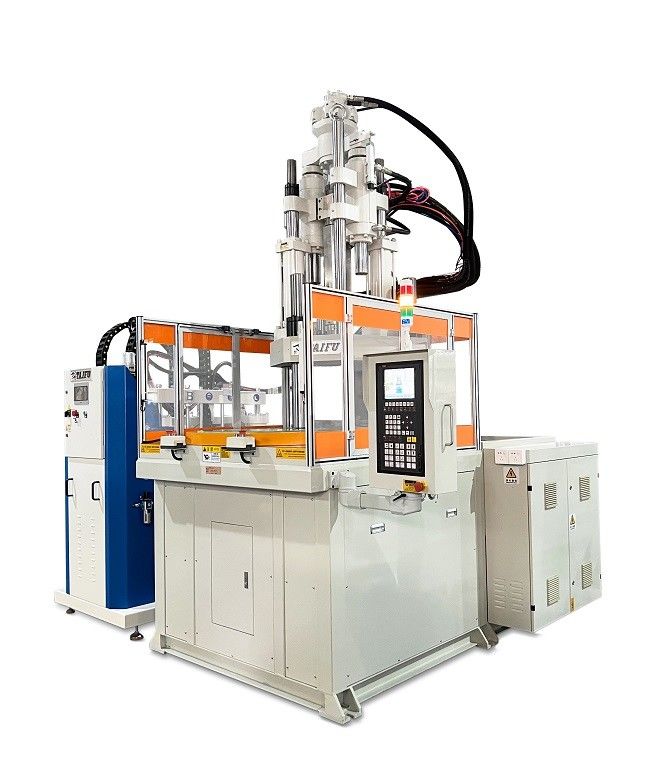

LSR Vertical Liquid Silicone Injection Molding Machine 120 Ton

LSR Vertical Liquid Silicone Injection Molding Machine 120 Ton
LSR Vertical Liquid Silicone Injection Molding Machine 120 Ton LSR Vertical Liquid Silicone Injection Molding Machine 120 Ton LSR Vertical Liquid Silicone Injection Molding Machine 120 Ton

Large Image :  LSR Vertical Liquid Silicone Injection Molding Machine 120 Ton

Product Details:
Place of Origin: China
Brand Name: TAIFU
Certification: CE, ISO9001
Model Number: TFV3-120R2-LSR
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: All the machines are fixed and well packaged in the plywood cases.
Delivery Time: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 220 set/month
Contact Now

LSR Vertical Liquid Silicone Injection Molding Machine 120 Ton

Description
Name: LSR Vertical Liquid Silicone Injection Molding Machine 120 Ton Clamping Force: 120 Ton
After-sales Service Provided: 1 Year Usage: LSR Silicone Products
Advantage: Easy To Operate Injection Rate: 44cm³-133cm³
Type: Vertical Color: White & Blue & Yellow
Highlight:

120 Ton LSR Injection Molding Machine

LSR Vertical Liquid Silicone Injection Molding Machine 120 Ton



It is available to customize machines to meet your...



Vertical Injection Molding Machine-Liquid Silicone Series

Taifu vertical injection molding machine is known for the quality, reliability and proven performance, allowing for safe and easy handling and extremely high operating safety.

Our machines are widely applied in the field of injection overmoulding, multi-colors injection moulding, multi-components injection moulding, high-precision injection moulding, thermosetting injection moulding and liquid silicone injection moulding.

There are various machine models we have V-35/55/85/120/160/200LSR



We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solutions.



1. Sepcifications:



  UNIT TFV3-120R2-LSR
Injection Unit Shooter configuration code name Z12
Screw stroke mm 160
Screw Diameter mm 36 40 45
Theoretical Injection Volume cm3 163 201 254
Injection Weight(PS) g 151 187 237
oz 5.34 6.60 8.35
Max.Injection Pressure Mpa 222 180 142
kgf/cm2 2269 1838 1452
Injection Rate cm3/s 128 158 200
Max Injection Speed mm/s 126
Screw Speed Rotation r.p.m 10~280
Positioning ring diameter mm 120
Nozzle Out From Platens mm ≥45
Claping Unit Clamping Force KN(ton) 1176(120)
Clamping Stroke mm 280
Min.Mold Thickness mm 280(380)
Max.Opening mm 560(660)
(L*W)Max.Mould Size mm 420*420/560*360
Number of turntable stations mm 2
(D) Rotary Table Size mm φ1200
Top bar spacing mm 80
Ejector Distance mm 100
Ejector Force KN(ton) 45(4.6)
Others System Pressure Mpa(kgf/cm2) 13.7(140)
Oil Tank Capacity L 380
Electric Power KW 18+2.2
Heater Power KW 10.7
Machine Dimensions L*W*H m 2.5*2.0*3.3
Work Table Height mm 1310+(70)
Machine Weight ton 7.0



2. Features:



  • High-precision injection molding: TAIFU LSR injection molding machine adopts advanced liquid silicone injection molding technology, which can achieve high-precision injection molding of silicone. By precisely controlling parameters such as injection speed, pressure and temperature, high-quality injection molded products can be obtained.

  • Strong stability: Using a closed-loop control system, it can monitor and adjust various parameters in the injection molding process in real time to ensure the stability of the injection molding process. This helps improve product consistency and reliability.

  • fficient production: With fast injection speed and cycle time, efficient production can be achieved. At the same time, the vertical design allows operators to replace molds and pick and place products at the same time, thereby further improving production efficiency.

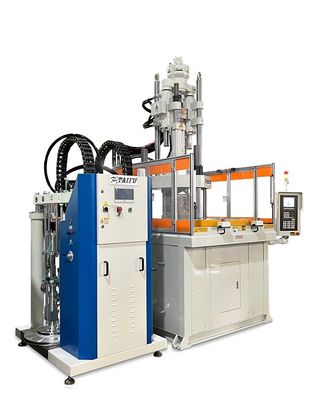

3. Machine Pictures:



LSR Vertical Liquid Silicone Injection Molding Machine 120 Ton 0

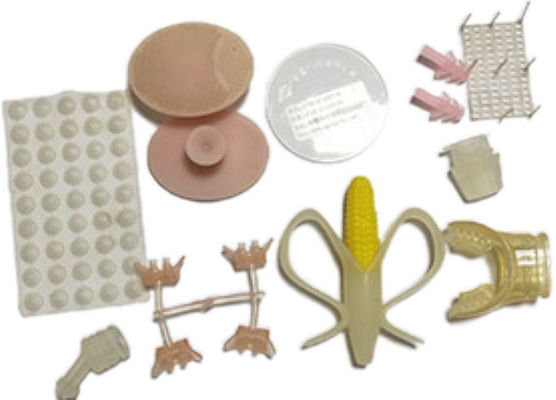

4. Applications:



LSR Vertical Liquid Silicone Injection Molding Machine 120 Ton 1



5. FAQ:



Q: What is the difference between silicone and LSR?
A: Liquid silicone rubber has high transparency, no peculiar smell, and the injection molded silicone products has a glue injection port. The LSR molded silicone products is odorless. Solid silicone rubber have to use the flavor of curing agent or other curing agents, and the product has no glue injection port.



Q: What are your terms of payment?

A: 30%TT in advance, 70% balance before shipment. or L/C at sight.



Q: How long is the warranty time?

A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.



Q: Are you a trading company or manufacturer?

A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.



Q: How long is your delivery time?

A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.



If you are interested in our machines, please do not hesitate to CONTACT US!
