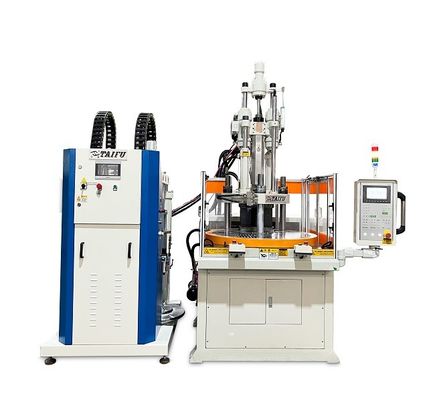

55 Ton Liquid Silicone LSR Silicone Injection Molding Machine

55 Ton Liquid Silicone LSR Silicone Injection Molding Machine
55 Ton Liquid Silicone LSR Silicone Injection Molding Machine 55 Ton Liquid Silicone LSR Silicone Injection Molding Machine 55 Ton Liquid Silicone LSR Silicone Injection Molding Machine 55 Ton Liquid Silicone LSR Silicone Injection Molding Machine 55 Ton Liquid Silicone LSR Silicone Injection Molding Machine

Large Image :  55 Ton Liquid Silicone LSR Silicone Injection Molding Machine

Product Details:
Place of Origin: China
Brand Name: TAIFU
Certification: CE, ISO9001
Model Number: TFV3-55R2-LSR
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: All the machines are fixed and well packaged in the plywood cases.
Delivery Time: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 220 set/month
Contact Now

55 Ton Liquid Silicone LSR Silicone Injection Molding Machine

Description
Name: 35 Ton Liquid Silicone LSR Silicone Injection Molding Machine Clamping Force: 55 Ton
After-sales Service Provided: 1 Year Usage: LSR Silicone Products
Advantage: Easy To Operate Injection Rate: 44cm³-133cm³
Type: Vertical Color: White & Blue & Yellow
Highlight:

55 Ton LSR Injection Molding Machine

,

55 Ton Silicone Injection Molding Machine

Liquid Silicone Rubber LSR Silicone Injection Molding Machine 160 Ton



It is available to customize machines to meet your...



Vertical Injection Molding Machine-Liquid Silicone Series

Taifu vertical injection molding machine is known for the quality, reliability and proven performance, allowing for safe and easy handling and extremely high operating safety.

Our machines are widely applied in the field of injection overmoulding, multi-colors injection moulding, multi-components injection moulding, high-precision injection moulding, thermosetting injection moulding and liquid silicone injection moulding.

There are various machine models we have V-35/55/85/120/160/200LSR



We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solutions.



1. Sepcifications:



  UNIT TFV4-55S-LSR TFV4-55SD-LSR TFV3-55R2-LSR
INJECTION UNIT Screw stroke mm 120
Screw Diameter mm 14 16 18 22 26 28
Theoretical Injection Volume cm3 18 24 31 46 64 74
Injection Weight(LSR) g 20 27 34 50 70 81
oz 0.72 0.94 1.18 1.77 2.47 2.87
Max.Injection Pressure Mpa 462 354 279 187 134 116
kgf/cm2 4714 3609 2852 1909 1367 1179
Injection Rate cm3/s 25 32 41 61 85 99
Max Injection Speed mm/s 161
Screw Speed Rotation r.p.m 0-300
Positioning ring diameter mm 110 100
Nozzle Out From Platens mm ≥45
CLAMPING UNIT Clamping Force KN(ton) 539(55)
Clamping Stroke mm 200
Min.Mold Thickness mm 180(240)
Max.Opening mm 380(440)
(L*W)Distance Between Tie Bars mm 445*255 _
(L*W)Max.Mould Size mm 400*375 380*380 310*310
(L*W)Skate size mm 915*400 915*400 φ910
QTY of Ejector pcs 3
Top bar spacing mm 80
Ejector Distance mm 100
Ejector Force KN(ton) 26.5(2.7)
OTHERS System Pressure Mpa(kgf/cm2) 13.7(140)
Oil Tank Capacity L 140 180 230
Electric Power KW 7.5 7.5+2.2 7.5+2.2
Reserved mold electric heating power KW 6*4 6*6 6*6
Machine Dimensions L*W m 2.05*1.3 1.8*1.3 2.0*1.6
H m Min:2.32(Max:2.9) Min:2.32(Max:2.9) Min:2.4(Max:3.0)
Cooling water capacity L/min 35
Work table height mm 1088+(60) 1020+(60) 1020+(60)
Machine Weight ton 2.0 2.2 2.9



2. Features:



  • High-precision injection molding: TAIFU LSR injection molding machine adopts advanced liquid silicone injection molding technology, which can achieve high-precision injection molding of silicone. By precisely controlling parameters such as injection speed, pressure and temperature, high-quality injection molded products can be obtained.

  • Strong stability: Using a closed-loop control system, it can monitor and adjust various parameters in the injection molding process in real time to ensure the stability of the injection molding process. This helps improve product consistency and reliability.

  • fficient production: With fast injection speed and cycle time, efficient production can be achieved. At the same time, the vertical design allows operators to replace molds and pick and place products at the same time, thereby further improving production efficiency.

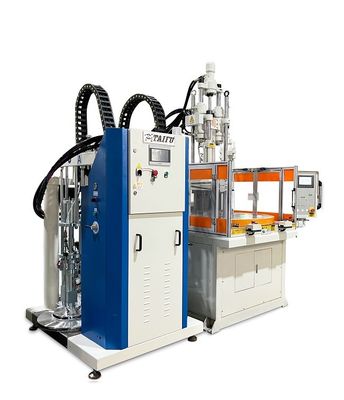

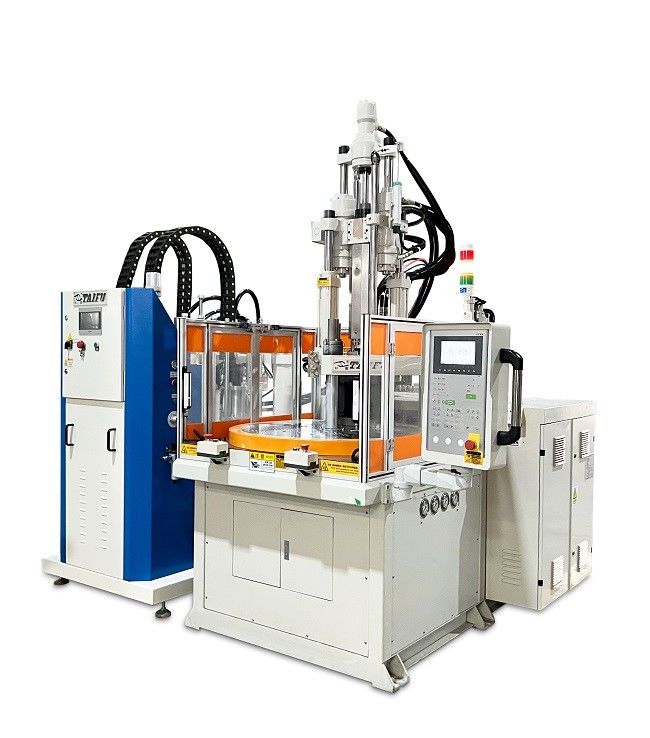

3. Machine Pictures:



55 Ton Liquid Silicone LSR Silicone Injection Molding Machine 0

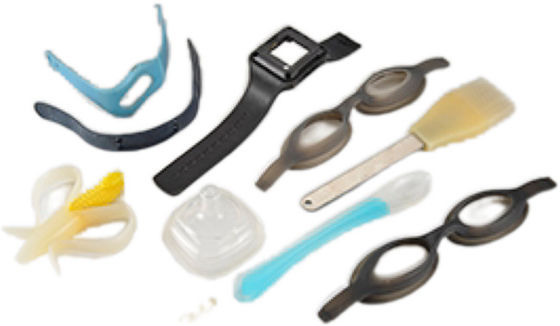

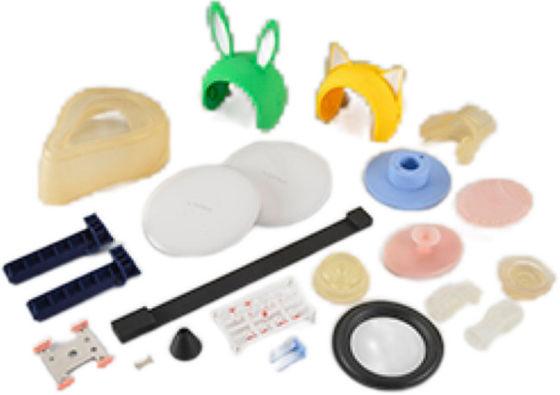

4. Applications:



55 Ton Liquid Silicone LSR Silicone Injection Molding Machine 1

55 Ton Liquid Silicone LSR Silicone Injection Molding Machine 2



5. FAQ:



Q: What is the difference between silicone and LSR?
A: Liquid silicone rubber has high transparency, no peculiar smell, and the injection molded silicone products has a glue injection port. The LSR molded silicone products is odorless. Solid silicone rubber have to use the flavor of curing agent or other curing agents, and the product has no glue injection port.



Q: Are you a trading company or manufacturer?

A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.



Q: How long is the warranty time?

A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.



Q: What are your terms of payment?

A: 30%TT in advance, 70% balance before shipment. or L/C at sight.



Q: How long is your delivery time?

A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.



If you are interested in our machines, please do not hesitate to CONTACT US!
