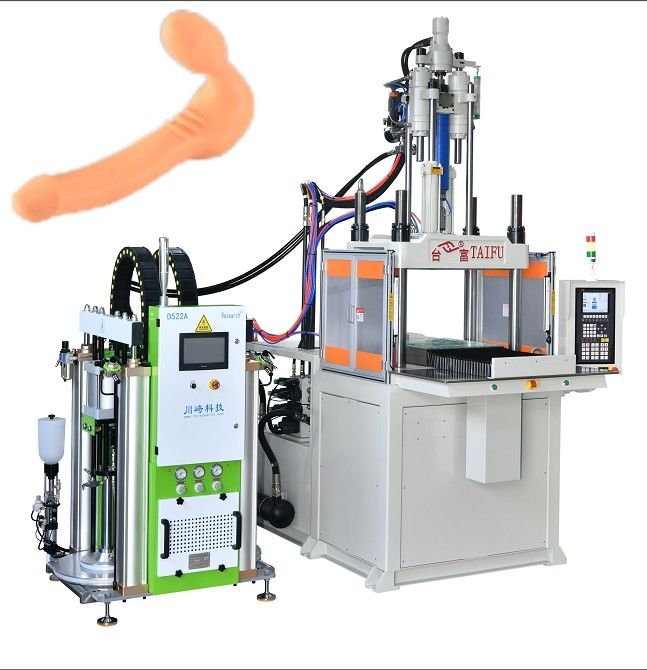

120 Ton LSR Silicone Injection Molding Machine For Adult Toys

120 Ton LSR Silicone Injection Molding Machine For Adult Toys
120 Ton LSR Silicone Injection Molding Machine For Adult Toys

Large Image :  120 Ton LSR Silicone Injection Molding Machine For Adult Toys

Product Details:
Place of Origin: Dongguan, China
Brand Name: TAIFU
Certification: CE, ISO9001
Model Number: TFV4-120S-LSR
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: All the machines are fixed and well packaged in the plywood cases.
Delivery Time: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 250 sets/month
Contact Now

120 Ton LSR Silicone Injection Molding Machine For Adult Toys

Description
Name: 120 Ton LSR Silicone Injection Molding Machine For Adult Toys Max Clamping Force: 120 Tons
Plastic Type: Liquid Silicone After-sales Service Provided: 1 Year
Motor: Servo Motor Usage: Silicone Products
Type: Vertical Application: Adult Toys
Highlight:

toy moulding machine

,

120 Ton Injection Molding Machine

,

lsr injection molding machine for sale

120 Ton LSR Silicone Injection Molding Machine For Adult Toys



The Silicone Phone Case LSR Silicone Injection Molding Machine is a specialized equipment designed for the production of silicone phone cases using the Liquid Silicone Rubber (LSR) injection molding process. This particular machine has a tonnage capacity of 120 tons, which refers to its clamping force.



LSR Silicone Injection Molding Machine is suitable for many industries such as automotive, electrical and medical device. With its unique design and excellent performance, it is the ideal choice for producing high-quality, precision LSR silicone products.



1. Sepcifications:



  UNIT TFV4-120S-LSR TFV4-160S-LSR TFV4-200S-KSR
INJECTION UNIT Screw stroke mm 160 200 200
Screw Diameter mm 36 40 45 45 50 55 55 60 65
Theoretical Injection Volume cm3 163 201 254 318 393 475 475 565 664
Injection Weight(PS) g 151 187 237 296 365 442 442 526 617
oz 5.34 6.60 8.35 10.43 12.88 15.59 15.59 18.55 21.77
Max.Injection Pressure Mpa 222 180 142 218 177 146 170 143 122
kgf/cm2 2269 1838 1452 2226 1803 1490 1738 1460 1244
Injection Rate cm3/s 128 158 200 167 206 249 314 373 438
Max Injection Speed mm/s 126 105 132
Screw Speed Rotation r.p.m 10~280 10~280 10~240
Positioning ring diameter mm 120 120 150
Nozzle Out From Platens mm ≥45 ≥45 ≥45
CLAMPING UNIT Clamping Force KN(ton) 1176(120) 1568(160) 1960(200)
Clamping Stroke mm 280 300 350
Min.Mold Thickness mm 280(380) 300(400) 350(450)
Max.Opening mm 560(660) 600(700) 700(800)
(L*W)Distance Between Tie Bars mm 610*380 690*410 900*450
(L*W)Max.Mould Size mm 580*540 710*630 760*630
(L*W)Skate size mm 600*560 730*650 780*650
QTY of Ejector pcs 3 5 5
Top bar spacing mm 80 100 125
Ejector Distance mm 100 110 150
Ejector Force KN(ton) 45(4.6) 45(4.6) 45(4.6)
OTHERS System Pressure Mpa(kgf/cm2) 13.7(140) 13.7(140) 13.7(140)
Oil Tank Capacity L 340 450 540
Electric Power KW 18.7 22 31
Heater Power KW 10.7 13.7 13.7
Machine Dimensions L*W m 2.4*1.8 2.8*1.8 3.3*2.1
H m Min:3.3(Max:4.1) Min:3.4(Max:4.2) Min:4.35(Max:5.35)
Cooling water capacity L/min 50 50 60
Work table height mm 1340+(70) 1480+(80) 1630+(80)
Machine Weight ton 6.0 8.5 11.5







2. Features:

  • The product is taken out outside the mold clamping area, which is convenient and safe to operate.
  • Digitally adjusted multi-stage precision mold electric heating temperature control
  • Specially designed heat-insulating fiberglass board blocks heat transfer from the mold to the formwork

3. Machine Pictures:



120 Ton LSR Silicone Injection Molding Machine For Adult Toys 0



4. Applications:



120 Ton LSR Silicone Injection Molding Machine For Adult Toys 1





5. FAQ:



Q: Are you a trading company or manufacturer?

A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.



Q: What are the advantages of liquid silicone rubber injection molding?

A: Liquid silicone rubber offers great sealing benefits. It offers high resistance to water, ozone, weather and extreme temperatures, ranging from -65℃ to 200℃. Injection molding with this type of material gives excellent resistance properties to the finished part.



Q: How long is the warranty time?

A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.



Q: What are your terms of payment?

A: 30%TT in advance, 70% balance before shipment. or L/C at sight.



If you are interested in our machines, please do not hesitate to CONTACT US!
