Silicone Phone Case LSR Silicone Injection Molding Machine 120 Ton
The Silicone Phone Case LSR Silicone Injection Molding Machine is a specialized equipment designed for the production of silicone phone cases using the Liquid Silicone Rubber (LSR) injection molding process. This particular machine has a tonnage capacity of 120 tons, which refers to its clamping force.
The machine utilizes LSR silicone, a type of high-quality, durable, and flexible material that is commonly used in phone case manufacturing. LSR silicone offers excellent heat resistance, chemical resistance, and electrical insulation properties, making it an ideal choice for phone cases.
LSR Silicone Injection Molding Machine is suitable for many industries such as automotive, electrical and medical device. With its unique design and excellent performance, it is the ideal choice for producing high-quality, precision LSR silicone products.
1. Sepcifications:
| |
UNIT |
TFV4-120SD |
|
INJECTION
UNIT
|
Shooter configuration code |
name |
Z12 |
| Screw stroke |
mm |
160 |
| Screw Diameter |
mm |
36 |
40 |
45 |
| Theoretical Injection Volume |
cm3 |
163 |
201 |
254 |
| Injection Weight(PS) |
g |
151 |
187 |
237 |
| oz |
5.34 |
6.60 |
8.35 |
| Max.Injection Pressure |
Mpa |
222 |
180 |
142 |
| kgf/cm2 |
2269 |
1838 |
1452 |
| Injection Rate |
cm3/s |
128 |
158 |
200 |
| Max Injection Speed |
mm/s |
126 |
| Screw Speed Rotation |
r.p.m |
0-260 |
| Positioning ring diameter |
mm |
120 |
| Nozzle Out From Platens |
mm |
≥45 |
|
CLAMPING
UNIT
|
Clamping Force |
KN(ton) |
1176(120) |
| Clamping Stroke |
mm |
280 |
| Min.Mold Thickness |
mm |
280(380) |
| Max.Opening |
mm |
560(660) |
| (L*W)Distance Between Tie Bars |
mm |
760*380 |
| (L*W)Max.Mould Size |
mm |
600*540 |
| (L*W)Skate size |
mm |
1290*560 |
| QTY of Ejector |
pcs |
3 |
| Top bar spacing |
mm |
80 |
| Ejector Distance |
mm |
100 |
| Ejector Force |
KN(ton) |
45(4.6) |
| OTHERS |
System Pressure |
Mpa(kgf/cm2) |
13.7(140) |
| Oil Tank Capacity |
L |
350 |
| Electric Power |
KW |
18+2.2 |
| Heater Power |
KW |
13.2 |
| Machine Size |
L*W*H |
m |
2.4*2.25*3.3 |
| Cooling water capacity |
L/min |
50 |
| Work Table Height |
mm |
1340+(70) |
| Machine Weight |
ton |
6.0 |
2. Features:
- Suitable for many industries such as automotive, electrical and medical device.
- The double slide design (one upper mold and two lower mold) is more convenient for picking up and placing parts, and the pause time during LSR thermosetting molding can also be used.
- Contains German "2KM" (20/200L) liquid silicone feeding host

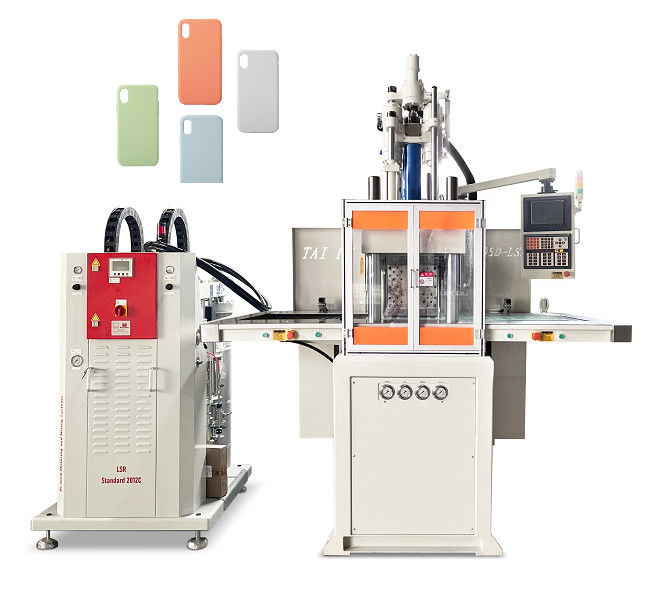

3. Machine Pictures:

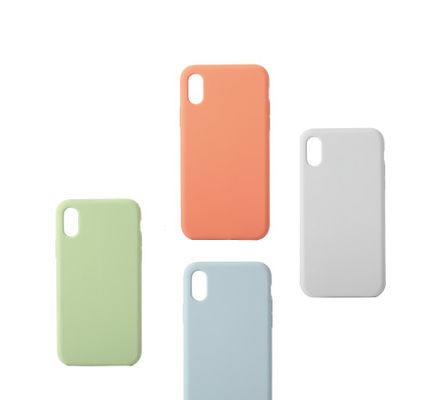

4. Applications:
5. FAQ:
Q: Are you a trading company or manufacturer?
A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.
Q: What are the advantages of liquid silicone rubber injection molding?
A: Liquid silicone rubber offers great sealing benefits. It offers high resistance to water, ozone, weather and extreme temperatures, ranging from -65℃ to 200℃. Injection molding with this type of material gives excellent resistance properties to the finished part.
Q: How long is the warranty time?
A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.
Q: How long is your delivery time?
A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.
Q: What are your terms of payment?
A: 30%TT in advance, 70% balance before shipment. or L/C at sight.
If you are interested in our machines, please do not hesitate to CONTACT US!
