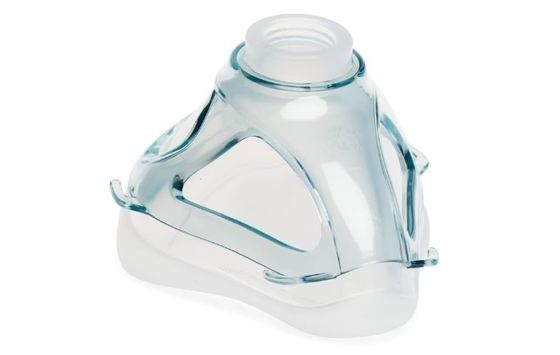

Silicone Anesthesia Mask Silicone Injection Molding Machine 120 Ton
LSR Silicone Injection Molding Machine is a double slide injection molding machine designed for the production of silicone anesthesia mask. This double slide injection molding machine is made of high-quality materials and has a robust construction. It is equipped with a powerful servo motor to provide a reliable and accurate operation. This machine has a voltage of 220V, a clamping force of 120KN, and a heating power of 10.7KW. It is a vertical type machine with a model of LSR Silicone Injection Molding Machine. Customers are assured of a reliable operation with this double slide injection molding machine capable of producing high-quality LSR products.
1. Sepcifications:
| |
UNIT |
TFV4-120SD |
|
INJECTION
UNIT
|
Shooter configuration code |
name |
Z12 |
| Screw stroke |
mm |
160 |
| Screw Diameter |
mm |
36 |
40 |
45 |
| Theoretical Injection Volume |
cm3 |
163 |
201 |
254 |
| Injection Weight(PS) |
g |
151 |
187 |
237 |
| oz |
5.34 |
6.60 |
8.35 |
| Max.Injection Pressure |
Mpa |
222 |
180 |
142 |
| kgf/cm2 |
2269 |
1838 |
1452 |
| Injection Rate |
cm3/s |
128 |
158 |
200 |
| Max Injection Speed |
mm/s |
126 |
| Screw Speed Rotation |
r.p.m |
0-260 |
| Positioning ring diameter |
mm |
120 |
| Nozzle Out From Platens |
mm |
≥45 |
|
CLAMPING
UNIT
|
Clamping Force |
KN(ton) |
1176(120) |
| Clamping Stroke |
mm |
280 |
| Min.Mold Thickness |
mm |
280(380) |
| Max.Opening |
mm |
560(660) |
| (L*W)Distance Between Tie Bars |
mm |
760*380 |
| (L*W)Max.Mould Size |
mm |
600*540 |
| (L*W)Skate size |
mm |
1290*560 |
| QTY of Ejector |
pcs |
3 |
| Top bar spacing |
mm |
80 |
| Ejector Distance |
mm |
100 |
| Ejector Force |
KN(ton) |
45(4.6) |
| OTHERS |
System Pressure |
Mpa(kgf/cm2) |
13.7(140) |
| Oil Tank Capacity |
L |
350 |
| Electric Power |
KW |
18+2.2 |
| Heater Power |
KW |
13.2 |
| Machine Size |
L*W*H |
m |
2.4*2.25*3.3 |
| Cooling water capacity |
L/min |
50 |
| Work Table Height |
mm |
1340+(70) |
| Machine Weight |
ton |
6.0 |
2. Features:
- The unique water transport design ensures effective heat dissipation when in contact with the hot mold and prevents the rubber from vulcanizing in the nozzle flow channel.
- The double slide design (one upper mold and two lower mold) is more convenient for picking up and placing parts, and the pause time during LSR thermosetting molding can also be used.
- Unique precision sealing needle design, nozzle hole and sealing needle seam can achieve no flash and no glue overflow.

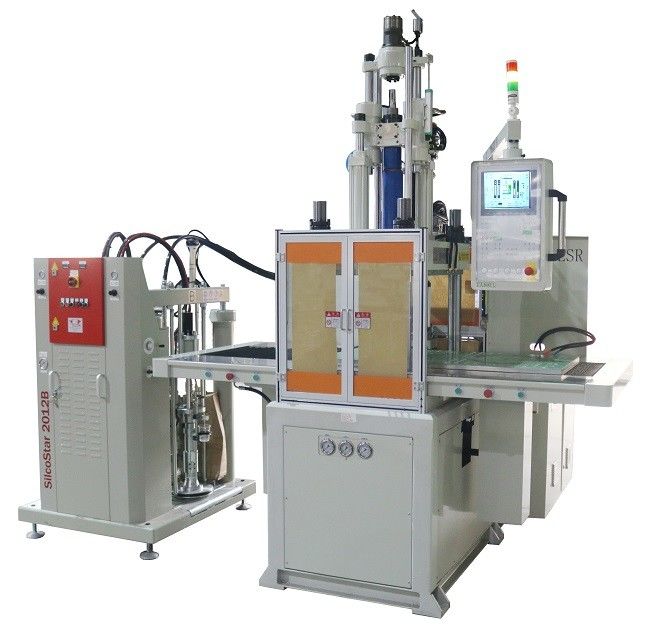

3. Machine Pictures:
4. Applications:
5. FAQ:
Q: What temperature is liquid silicone rubber injection molding?
A: The molds used in the injection molding of liquid silicone rubber are heated to temperatures ranging from approximately 250° – 300°.
Q: How long is your delivery time?
A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.
Q: How long is the warranty time?
A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.
Q: What are the advantages of liquid silicone rubber injection molding?
A: Liquid silicone rubber offers great sealing benefits. It offers high resistance to water, ozone, weather and extreme temperatures, ranging from -65℃ to 200℃. Injection molding with this type of material gives excellent resistance properties to the finished part.
Q: Are you a trading company or manufacturer?
A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.
Q: What are your terms of payment?
A: 30%TT in advance, 70% balance before shipment. or L/C at sight.
