Efficient LSR Silicone Injection Molding Machine - Ejector Force 26.5 KN
LSR Silicone Injection Molding Machine is a single slide injection molding machine specially designed for LSR silicone injection molding. It is an automatic injection molding machine with a voltage of 220V, an ejector stroke of 100mm, a mould thickness of 230-280mm, an injection capacity of 53-254g, and an injection pressure of 146-222MPa. It is ideal for large-scale production of high-precision LSR silicone products with high consistency and repeatability.
The machine is designed to be user-friendly and easy to operate. It is equipped with advanced microprocessor control system, which can realize faster injection speed, shorter molding cycle and more accurate molding operation. The machine is also equipped with a full range of safety systems to ensure the safety of the operators. The injection molding process is precisely monitored by the automatic monitoring system to ensure the quality of the products.
LSR Silicone Injection Molding Machine is widely used in automotive, medical, electronics, and other industries. It is a reliable and efficient injection molding machine for producing silicone products with high precision and quality. It is an ideal choice for large-scale production of LSR silicone products.
1. Sepcifications:
| |
UNIT |
TFV4-120SD |
|
INJECTION
UNIT
|
Shooter configuration code |
name |
Z12 |
| Screw stroke |
mm |
160 |
| Screw Diameter |
mm |
36 |
40 |
45 |
| Theoretical Injection Volume |
cm3 |
163 |
201 |
254 |
| Injection Weight(PS) |
g |
151 |
187 |
237 |
| oz |
5.34 |
6.60 |
8.35 |
| Max.Injection Pressure |
Mpa |
222 |
180 |
142 |
| kgf/cm2 |
2269 |
1838 |
1452 |
| Injection Rate |
cm3/s |
128 |
158 |
200 |
| Max Injection Speed |
mm/s |
126 |
| Screw Speed Rotation |
r.p.m |
0-260 |
| Positioning ring diameter |
mm |
120 |
| Nozzle Out From Platens |
mm |
≥45 |
|
CLAMPING
UNIT
|
Clamping Force |
KN(ton) |
1176(120) |
| Clamping Stroke |
mm |
280 |
| Min.Mold Thickness |
mm |
280(380) |
| Max.Opening |
mm |
560(660) |
| (L*W)Distance Between Tie Bars |
mm |
760*380 |
| (L*W)Max.Mould Size |
mm |
600*540 |
| (L*W)Skate size |
mm |
1290*560 |
| QTY of Ejector |
pcs |
3 |
| Top bar spacing |
mm |
80 |
| Ejector Distance |
mm |
100 |
| Ejector Force |
KN(ton) |
45(4.6) |
| OTHERS |
System Pressure |
Mpa(kgf/cm2) |
13.7(140) |
| Oil Tank Capacity |
L |
350 |
| Electric Power |
KW |
18+2.2 |
| Heater Power |
KW |
13.2 |
| Machine Size |
L*W*H |
m |
2.4*2.25*3.3 |
| Cooling water capacity |
L/min |
50 |
| Work Table Height |
mm |
1340+(70) |
| Machine Weight |
ton |
6.0 |
2. Features:
- The unique water transport design ensures effective heat dissipation when in contact with the hot mold and prevents the rubber from vulcanizing in the nozzle flow channel.
- The double slide design (one upper mold and two lower mold) is more convenient for picking up and placing parts, and the pause time during LSR thermosetting molding can also be used.
- Unique precision sealing needle design, nozzle hole and sealing needle seam can achieve no flash and no glue overflow.

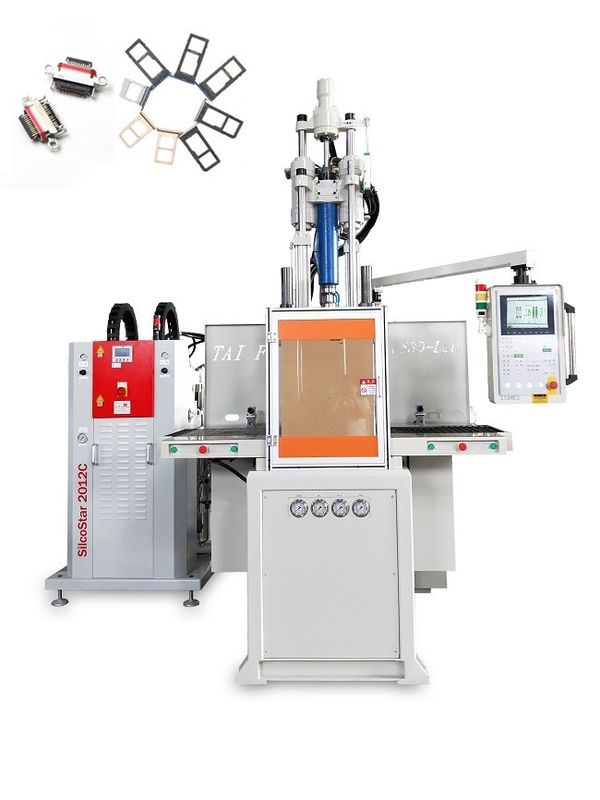

3. Machine Pictures:

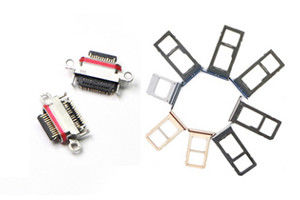

4. Applications:
5. FAQ:
Q: What temperature is liquid silicone rubber injection molding?
A: The molds used in the injection molding of liquid silicone rubber are heated to temperatures ranging from approximately 250° – 300°.
Q: How long is the warranty time?
A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.
Q: What are the advantages of liquid silicone rubber injection molding?
A: Liquid silicone rubber offers great sealing benefits. It offers high resistance to water, ozone, weather and extreme temperatures, ranging from -65℃ to 200℃. Injection molding with this type of material gives excellent resistance properties to the finished part.
Q: Are you a trading company or manufacturer?
A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.
Q: How long is your delivery time?
A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.
Q: What are your terms of payment?
A: 30%TT in advance, 70% balance before shipment. or L/C at sight.
