Product Details:
|
| Name: | LSR Silicone Vertical Plastic Injection Molding Machine | Max Clamping Force: | 85Tons |
|---|---|---|---|
| Plastic Type: | Liquid Silicone | After-sales Service Provided: | 1 Year |
| Motor: | Servo Motor | Usage: | Silicone Earphone Plugs |
| Advantage: | High Precision | Type: | Vertical |
| High Light: | LSR liquid silicone injection molding machines,Earphone Plugs Injection Molding Machine,lsr injection machine |
||

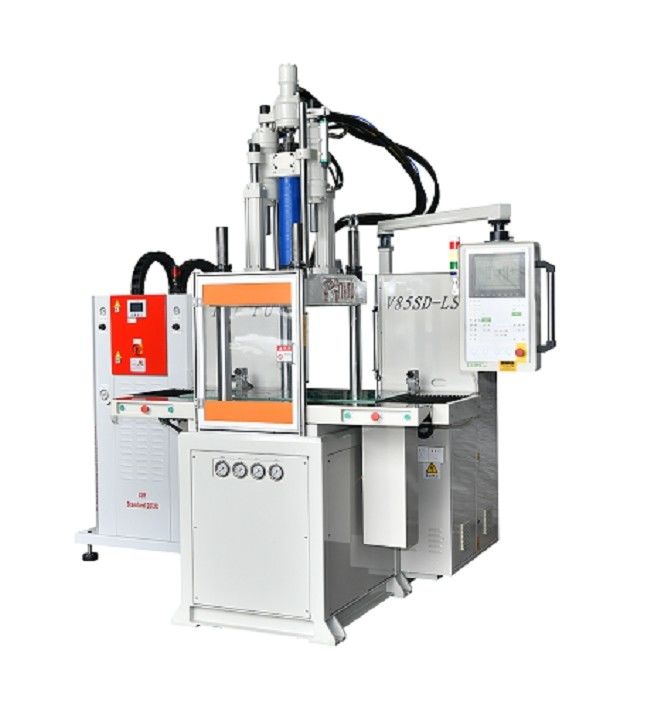

High-Efficeiency Silicone Earphone Plugs Injection Molding Machine
The LSR silicone injection molding machine is a double slide injection molding machine, designed to provide superior performance in terms of precision, accuracy and efficiency. This machine is equipped with a powerful and reliable motor, delivering a clamping force of 85KN. The drive power of 11-18KW ensures a fast and precise molding operation. It has a vertical type structure, with a mould thickness of 230-280mm, and a wide range of models. With its reliable performance, the LSR silicone injection molding machine is an ideal choice for both industrial and commercial applications. It is durable and easy to maintain, providing a great value for money.
1. Sepcifications:
| UNIT | TFV4-120SD | ||||||
|
INJECTION
UNIT |
Shooter configuration code | name | Z12 | ||||
| Screw stroke | mm | 160 | |||||
| Screw Diameter | mm | 36 | 40 | 45 | |||
| Theoretical Injection Volume | cm3 | 163 | 201 | 254 | |||
| Injection Weight(PS) | g | 151 | 187 | 237 | |||
| oz | 5.34 | 6.60 | 8.35 | ||||
| Max.Injection Pressure | Mpa | 222 | 180 | 142 | |||
| kgf/cm2 | 2269 | 1838 | 1452 | ||||
| Injection Rate | cm3/s | 128 | 158 | 200 | |||
| Max Injection Speed | mm/s | 126 | |||||
| Screw Speed Rotation | r.p.m | 0-260 | |||||
| Positioning ring diameter | mm | 120 | |||||
| Nozzle Out From Platens | mm | ≥45 | |||||
|
CLAMPING
UNIT |
Clamping Force | KN(ton) | 1176(120) | ||||
| Clamping Stroke | mm | 280 | |||||
| Min.Mold Thickness | mm | 280(380) | |||||
| Max.Opening | mm | 560(660) | |||||
| (L*W)Distance Between Tie Bars | mm | 760*380 | |||||
| (L*W)Max.Mould Size | mm | 600*540 | |||||
| (L*W)Skate size | mm | 1290*560 | |||||
| QTY of Ejector | pcs | 3 | |||||
| Top bar spacing | mm | 80 | |||||
| Ejector Distance | mm | 100 | |||||
| Ejector Force | KN(ton) | 45(4.6) | |||||
| OTHERS | System Pressure | Mpa(kgf/cm2) | 13.7(140) | ||||
| Oil Tank Capacity | L | 350 | |||||
| Electric Power | KW | 18+2.2 | |||||
| Heater Power | KW | 13.2 | |||||
| Machine Size | L*W*H | m | 2.4*2.25*3.3 | ||||
| Cooling water capacity | L/min | 50 | |||||
| Work Table Height | mm | 1340+(70) | |||||
| Machine Weight | ton | 6.0 | |||||
2. Features:
3. Machine Pictures:

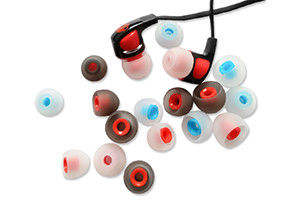

4. Applications:
5. FAQ:
Q: How long is the warranty time?
A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.
Q: What are the advantages of liquid silicone rubber injection molding?
A: Liquid silicone rubber offers great sealing benefits. It offers high resistance to water, ozone, weather and extreme temperatures, ranging from -65℃ to 200℃. Injection molding with this type of material gives excellent resistance properties to the finished part.
Q: What temperature is liquid silicone rubber injection molding?
A: The molds used in the injection molding of liquid silicone rubber are heated to temperatures ranging from approximately 250° – 300°.
Q: Are you a trading company or manufacturer?
A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.
Q: How long is your delivery time?
A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.
Q: What are your terms of payment?
A: 30%TT in advance, 70% balance before shipment. or L/C at sight.
