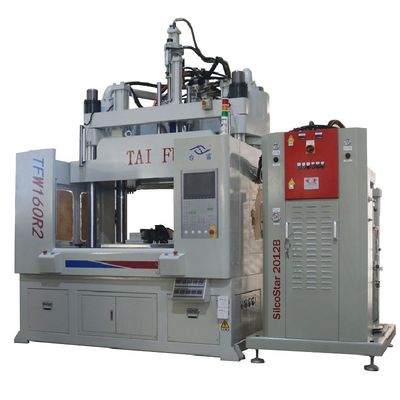

160 Ton Low Workbench LSR Silicone Vertical Rotary Injection Molding Machine

160 Ton Low Workbench LSR Silicone Vertical Rotary Injection Molding Machine
160 Ton Low Workbench LSR Silicone Vertical Rotary Injection Molding Machine 160 Ton Low Workbench LSR Silicone Vertical Rotary Injection Molding Machine 160 Ton Low Workbench LSR Silicone Vertical Rotary Injection Molding Machine 160 Ton Low Workbench LSR Silicone Vertical Rotary Injection Molding Machine 160 Ton Low Workbench LSR Silicone Vertical Rotary Injection Molding Machine

Large Image :  160 Ton Low Workbench LSR Silicone Vertical Rotary Injection Molding Machine

Product Details:
Place of Origin: Dongguan, China
Brand Name: TAIFU
Certification: CE, ISO9001
Model Number: TFW4-160R2-LSR
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: All the machines are fixed and well packaged in the plywood cases.
Delivery Time: Negotiable
Payment Terms: T/T
Supply Ability: 220 sets/month
Contact Now

160 Ton Low Workbench LSR Silicone Vertical Rotary Injection Molding Machine

Description
Name: 160 Ton Low Workbench LSR Silicone Vertical Rotary Injection Molding Machine Max Clamping Force: 160 Ton
Injection Rate: 176cm³-263cm³ Plastic Type: Liquid Silicone
After-sales Service Provided: 1 Year Motor: Servo Motor
Usage: Liquid Silicone Products Advantage: High Precision And Easy To Operate
Highlight:

160 Ton Injection Molding Machine

,

rotary table vertical injection moulding machine

,

lsr injection molding machine

160 Ton Low Workbench LSR Silicone Vertical Rotary Injection Molding Machine



The 160-ton liquid silicone low workbench vertical rotary injection molding machine is equipped with a German 2KM liquid silicone feeding device. The machine adopts a special hydraulic water-cooled closed injection nozzle for liquid silicone and a special material tube group for liquid silicone to achieve high-precision and high-stable injection of liquid silicone. The unique design of the vertical turntable or double-slide injection molding machine with one upper mold and two lower molds allows the operator to use the time of silicone thermosetting to pick and place products in another set of molds and clean the molds, greatly increasing production efficiency. The machine has various optional functions to adapt to different production needs, and is now widely used in the auto parts and medical industries.



1. Sepcifications:



ITEM UNIT TFW4-85R2 TFW4-120R2 TFW4-160R2
INJECTION UNIT
Screw stroke mm 140 160 200
Screw Diameter mm 32 36 40 36 40 45 45 50 55
Theoretical Injection Volume cm3 113 143 176 163 201 254 318 393 475
Injection Weight(PS) g 105 133 164 151 187 237 296 365 442
oz 3.69 4.67 5.77 5.34 6.60 8.35 10.43 12.88 15.59
Max.Injection Pressure Mpa 228 180 146 222 180 142 218 177 146
kgf/cm2 2331 1842 1492 2269 1838 1452 2226 1803 1490
Injection Rate cm3/s 100 126 156 128 158 200 167 206 249
Max Injection Speed mm/s 124 126 105
Screw Speed Rotation r.p.m 10~280 10~280 10~280
Positioning ring diameter mm 120 120 120
Nozzle Out From Platens mm ≥45 ≥45 ≥45
CLAMPING UNIT
Clamping Force KN(ton) 833(85) 1176(120) 1568(160)
Clamping Stroke mm 280 300 350
Min.Mold Thickness mm 230(310) 280(380) 300(400)
Max.Opening mm 510(590) 580(680) 650(750)
(L*W)Max.Mould Size mm 360*360/450*320 420*420/560*360 520*520/700*450
Number of turntable stations mm 2 2 2
(D) Rotary Table Size mm φ1010 φ1200 φ1400
QTY of Ejector pcs 3 5 5
Top bar spacing mm 80 80 100
Ejector Distance mm 100 100 110
Ejector Force KN(ton) 45(4.6) 45(4.6) 45(4.6)
OTHERS
System Pressure Mpa(kgf/cm2) 13.7(140) 13.7(140) 13.7(140)
Oil Tank Capacity L 350 430 500
Electric Power KW 15+2.2 18+2.2 22+2.2
Heater Power KW 7.0 10.7 13.7
Machine Dimensions L*W m 2.5*1.9 2.6*2.0 2.9*2.2
H(Excluding shock-absorbing feet) m Min:2.5(Max:2.95) Min:2.9(Max:3.6) Min:3.3(Max:4.1)
Cooling water capacity L/min 40 50 50
Height of Workbench+(Excluding shock-absorbing feet) mm 780+(70) 820+(70) 915+(80)
Machine Weight ton 6.5 9.5 12.8



2. Features:



  • Ultra-low operating table, the overall height of the machine is reduced.
  • Super large space for die installation, four-column machine design, no column interference in the middle.
  • Unique precision sealing needle design, nozzle hole and sealing needle seam can achieve no flash and no glue overflow.

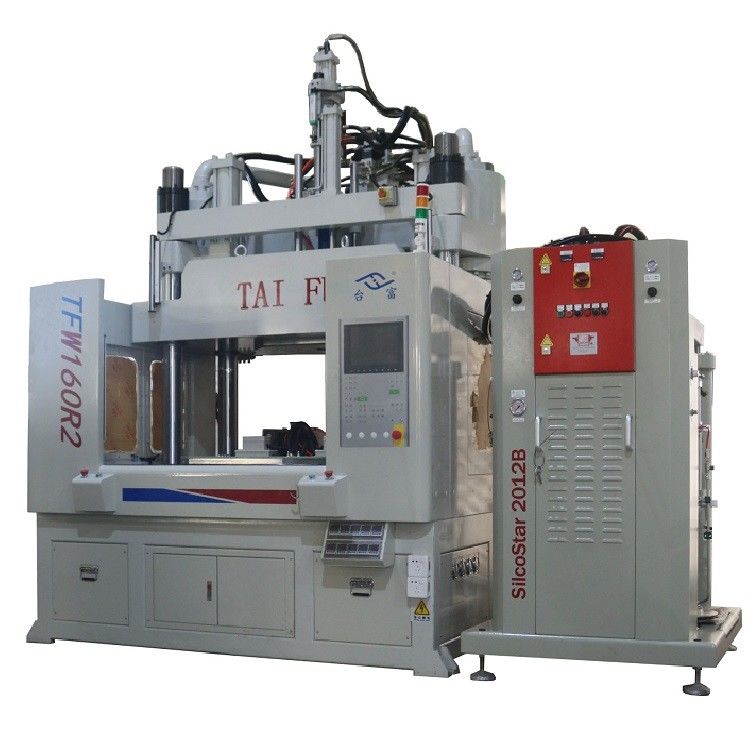

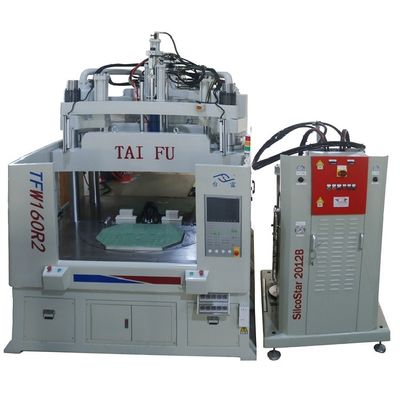

3. Machine Pictures:



160 Ton Low Workbench LSR Silicone Vertical Rotary Injection Molding Machine 0160 Ton Low Workbench LSR Silicone Vertical Rotary Injection Molding Machine 1160 Ton Low Workbench LSR Silicone Vertical Rotary Injection Molding Machine 2

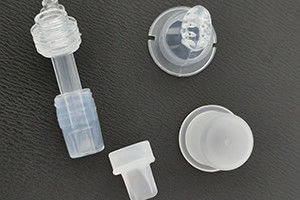

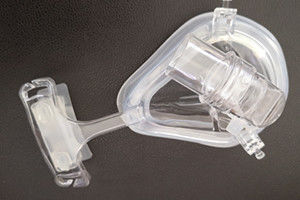

4. Applications:



160 Ton Low Workbench LSR Silicone Vertical Rotary Injection Molding Machine 3



5. FAQ:



Q: What are the advantages of liquid silicone rubber injection molding?

A: Liquid silicone rubber offers great sealing benefits. It offers high resistance to water, ozone, weather and extreme temperatures, ranging from -65℃ to 200℃. Injection molding with this type of material gives excellent resistance properties to the finished part.



Q: What temperature is liquid silicone rubber injection molding?

A: The molds used in the injection molding of liquid silicone rubber are heated to temperatures ranging from approximately 250° – 300°.



Q: Are you a trading company or manufacturer?

A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.



Q: How long is your delivery time?

A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.



Q: How long is the warranty time?

A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.



Q: What are your terms of payment?

A: 30%TT in advance, 70% balance before departure.



If you are interested in our machines, please contact me without hesitation!
