120 Ton LSR Silicone Vertical Injection Molding Machine double slide injection machine

120 Ton LSR Silicone Vertical Injection Molding Machine double slide injection machine
120 Ton LSR Silicone Vertical Injection Molding Machine double slide injection machine
120 Ton LSR Silicone Vertical Injection Molding Machine double slide injection machine 120 Ton LSR Silicone Vertical Injection Molding Machine double slide injection machine 120 Ton LSR Silicone Vertical Injection Molding Machine double slide injection machine 120 Ton LSR Silicone Vertical Injection Molding Machine double slide injection machine 120 Ton LSR Silicone Vertical Injection Molding Machine double slide injection machine 120 Ton LSR Silicone Vertical Injection Molding Machine double slide injection machine 120 Ton LSR Silicone Vertical Injection Molding Machine double slide injection machine

Large Image :  120 Ton LSR Silicone Vertical Injection Molding Machine double slide injection machine

Product Details:
Place of Origin: Dongguan, China
Brand Name: TAIFU
Certification: CE, ISO9001
Model Number: TFV4-120SD-LSR
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: All the machines are fixed and well packaged in the plywood cases.
Delivery Time: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 250 sets/month
Contact Now

120 Ton LSR Silicone Vertical Injection Molding Machine double slide injection machine

Description
Name: LSR Silicone Vertical Plastic Injection Molding Machine Max Clamping Force: 120 Tons
Max Volume: 962 Grams Injection Rate: 44cm³-346cm³
Plastic Type: Liquid Silicone After-sales Service Provided: 1 Year
Motor: Servo Motor Usage: Liquid Silicone Products
Advantage: High Precision And Easy To Operate
Highlight:

Silicone Injection Molding Turnkey Solution

,

120 ton injection moulding machine

,

lsr injection molding machine price

120 Ton LSR Silicone Vertical Injection Molding Machine Double Slide Injection Machine

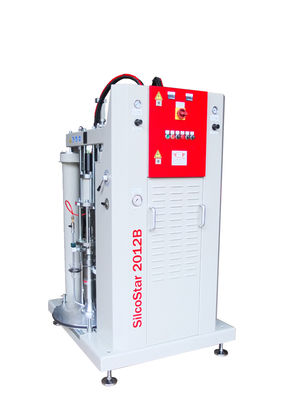

The 120-ton liquid silicone vertical injection molding machine is equipped with a German 2KM liquid silicone feeding device. The machine adopts a special hydraulic water-cooled closed injection nozzle for liquid silicone and a special material tube group for liquid silicone to achieve high-precision and high-stable injection of liquid silicone. The unique design of the vertical turntable or double-slide injection molding machine with one upper mold and two lower molds allows the operator to use the time of silicone thermosetting to pick and place products in another set of molds and clean the molds, greatly increasing production efficiency. The machine has various optional functions to adapt to different production needs, and is now widely used in the auto parts and medical industries.



1. Sepcifications:



  UNIT TFV4-120SD-LSR

INJECTION



UNIT

 Shooter configuration code name Z12
Screw stroke mm 160
Screw Diameter mm 36 40 45
Theoretical Injection Volume cm3 163 201 254
Injection Weight(PS) g 151 187 237
oz 5.34 6.60 8.35
Max.Injection Pressure Mpa 222 180 142
kgf/cm2 2269 1838 1452
Injection Rate cm3/s 128 158 200
Max Injection Speed mm/s 126
Screw Speed Rotation r.p.m 0-260
Positioning ring diameter mm 120
Nozzle Out From Platens mm ≥45

CLAMPING



UNIT

 Clamping Force KN(ton) 1176(120)
Clamping Stroke mm 280
Min.Mold Thickness mm 280(380)
Max.Opening mm 560(660)
(L*W)Distance Between Tie Bars mm 760*380
(L*W)Max.Mould Size mm 600*540
(L*W)Skate size mm 1290*560
QTY of Ejector pcs 3
Top bar spacing mm 80
Ejector Distance mm 100
Ejector Force KN(ton) 45(4.6)
OTHERS System Pressure Mpa(kgf/cm2) 13.7(140)
Oil Tank Capacity L 350
Electric Power KW 18+2.2
Heater Power KW 13.2
Machine Size L*W*H m 2.4*2.25*3.3
Cooling water capacity L/min 50
Work Table Height mm 1340+(70)
Machine Weight ton 6.0



2. Features:



  • The unique water transport design ensures effective heat dissipation when in contact with the hot mold and prevents the rubber from vulcanizing in the nozzle flow channel.
  • The pneumatic sealing system is used, which is synchronized with the injection signal of the injection molding machine, and can effectively and quickly complete the sealing action simultaneously.
  • Unique precision sealing needle design, nozzle hole and sealing needle seam can achieve no flash and no glue overflow.

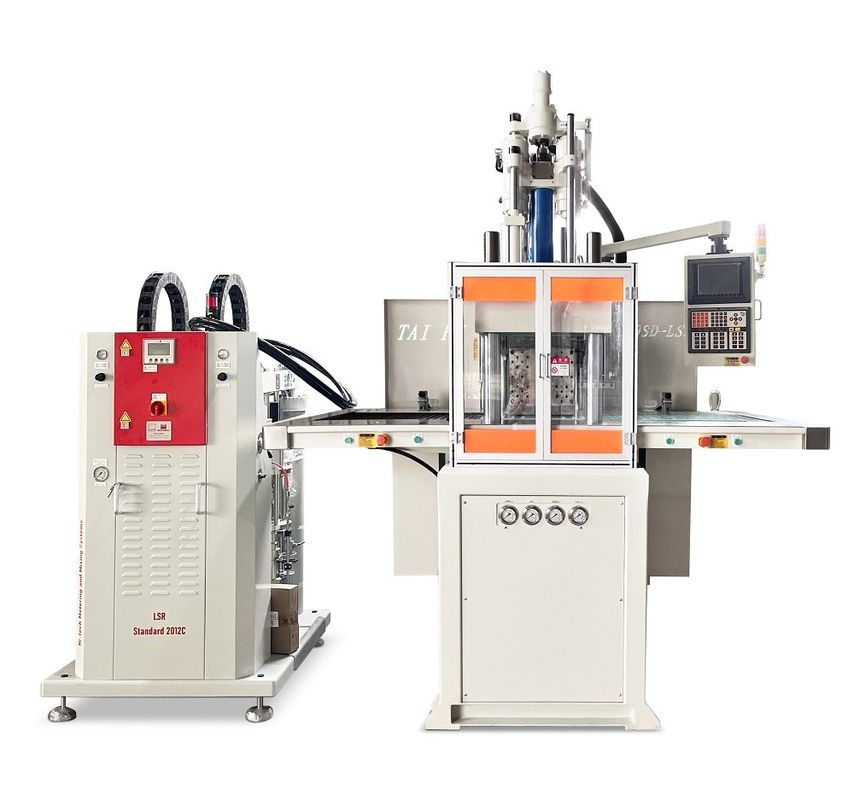

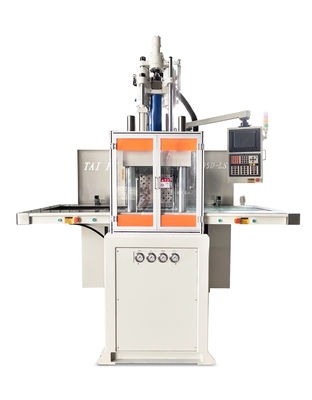

3. Machine Pictures:



120 Ton LSR Silicone Vertical Injection Molding Machine double slide injection machine 0

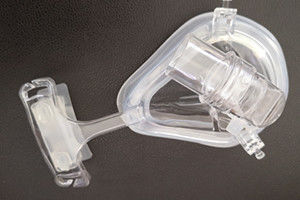

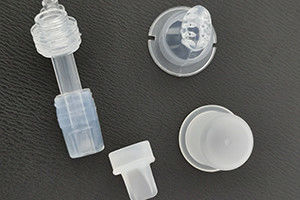

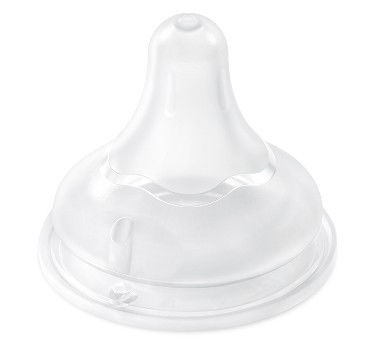

4. Applications:



120 Ton LSR Silicone Vertical Injection Molding Machine double slide injection machine 1



5. FAQ:



Q: What are the advantages of liquid silicone rubber injection molding?

A: Liquid silicone rubber offers great sealing benefits. It offers high resistance to water, ozone, weather and extreme temperatures, ranging from -65℃ to 200℃. Injection molding with this type of material gives excellent resistance properties to the finished part.



Q: What temperature is liquid silicone rubber injection molding?

A: The molds used in the injection molding of liquid silicone rubber are heated to temperatures ranging from approximately 250° – 300°.



Q: Are you a trading company or manufacturer?

A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.



Q: How long is your delivery time?

A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.



Q: How long is the warranty time?

A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.



Q: What are your terms of payment?

A: 30%TT in advance, 70% balance before shipment. or L/C at sight.



If you are interested in our machines, please do not hesitate to CONTACT US!
