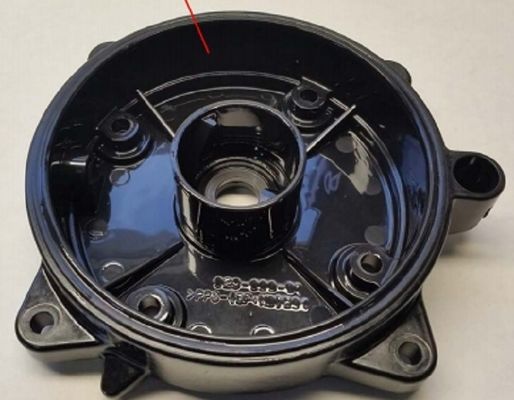

85 Ton BMC Vertical Injection Molding Machine Used For Oil Casing
It is available to customize machines to meet your...
We can produce Taifu vertical standard BMC injection molding machines with machine models ranging from 35 tons to 1500 tons.
Vertical Mold Clamping Horizontal Injection BMC Machine is suitable for
1. Overall packaging of electrical and electronic components
2. Automotive industry: automotive casings, bumpers, light frames, light bowls, trunks and other interior and exterior automotive parts and functional parts, etc.
3. Instrument industry: instrument frames, instrument cases, joysticks, etc.
4. Civilian products: sanitary ware, decorations, dishwasher liners, audio products, etc.
5. Other aspects: electronic copy machines, printing machinery, structural components of office machinery, electronic computer parts, etc.
We can customize various models according to the characteristics of BMC materials
1.Specification
| |
UNIT |
TFV4-85-BMC |
| INJECTION UNIT |
Screw Diameter |
mm |
Ф36 |
Ф40 |
| Theoretical Injection Volume |
cm3 |
142 |
176 |
| Injection Weight(PS) |
g(oz) |
255(9.0) |
317(11.2) |
| Max.Injection Pressure |
Mpa(kgf/cm2) |
146(1492) |
146(1492) |
| Injection Rate |
cm3/s |
109 |
134 |
| Injection Speed |
mm/s |
107 |
| Screw Speed Rotation |
r.p.m |
0-300 |
| Nozzle Out From Platens |
mm |
≥45 |
| CLAMPING UNIT |
Clamping Force |
KN(tf) |
833(85) |
| Clamping Stroke |
mm |
250 |
| Min.Mold Thickness |
mm |
230(310) |
| Max.Opening |
mm |
480(560) |
| (L*W)Distance Between Tie Bars |
mm |
520*355 |
— |
| (L*W)Max.Mould Size |
mm |
500*470 |
360*360 |
| (L*W)尺寸Platen Size |
mm |
540*490 |
Ф1010 |
| Ejector Distance |
mm |
100 |
100 |
| Ejector Force |
KN(tf) |
26.5(2.7) |
| OTHERS |
System Pressure |
Mpa(kgf/cm2) |
13.7(140) |
| Oil Tank Capacity |
L |
280 |
310 |
| Electric Power |
KW(HP) |
15(20) |
18.5(25) |
| Machine Dimensions |
L*W |
m |
2.2*1.5 |
2.2*1.8 |
| H |
m |
3.8 |
4.0 |
| Machine Weight |
tf |
3.6 |
4.5 |

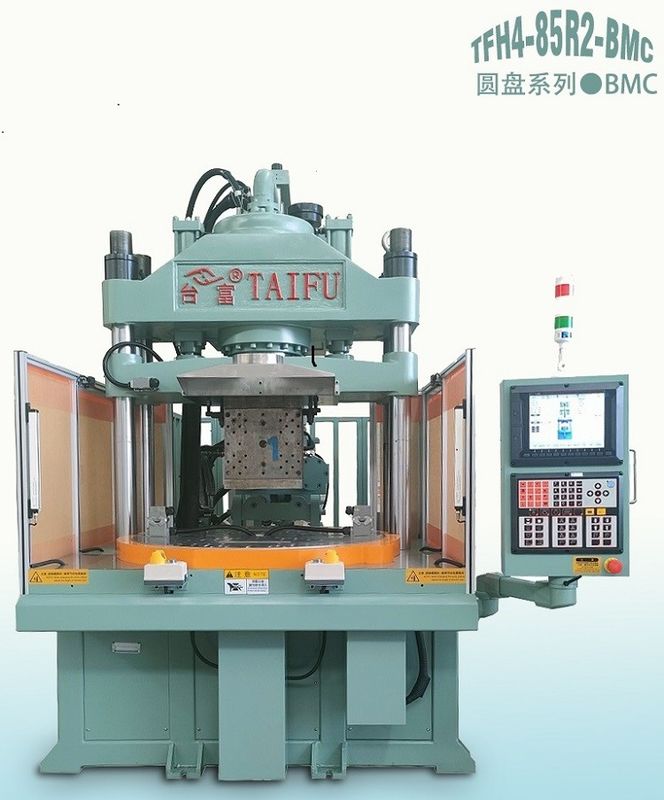

2. Machine Pictures
3.Features
(1) Vertical mold clamping, horizontal injection; widely used in home appliance accessories, coils, stators, rotors, motor accessories and other products
(2) Diversified oil circuit design, semi-closed loop, fully closed loop, simultaneous service and high-speed injection molding
(3) Using imported hydraulic parts, fast response and High precision, stable and durable
4.Application
5.FAQ:
Q: Are you a trading company or manufacturer?
A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.
Q: How long is your delivery time?
A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.
Q: How long is the warranty time?
A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.
Q: What are your terms of payment?
A: 30%TT in advance, 70% balance before shipment. or L/C at sight.
