Vertical Mold Clamping Horizontal Injection BMC Machine with rotary table

Vertical Mold Clamping Horizontal Injection BMC Machine with rotary table
Vertical Mold Clamping Horizontal Injection BMC Machine with rotary table
Vertical Mold Clamping Horizontal Injection BMC Machine with rotary table Vertical Mold Clamping Horizontal Injection BMC Machine with rotary table Vertical Mold Clamping Horizontal Injection BMC Machine with rotary table

Large Image :  Vertical Mold Clamping Horizontal Injection BMC Machine with rotary table

Product Details:
Place of Origin: China
Brand Name: TAIFU
Certification: ISO9001,CE
Model Number: TFW4-160R2-BMC
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: All the machines are fixed and well packaged in the plywood cases.
Delivery Time: negotiable
Payment Terms: L/C, T/T
Supply Ability: 220 sets per month
Contact Now

Vertical Mold Clamping Horizontal Injection BMC Machine with rotary table

Description
Product Name: Vertical Mold Clamping Horizontal Injection BMC Machine With Rotary Table Keyword: High Precision
Function: BMC Injection Molding Machine Color: White
Application: BMC Products Plastic Type: BMC
Warranty: 1 Year Motor: Servo Motor
Highlight:

Horizontal Injection Machine

,

Horizontal Injection BMC Machine

,

bmc vertical injection moulding process

Vertical Mold Clamping Horizontal Injection BMC Machine With Rotary Table



It is available to customize machines to meet your...



We can produce Taifu vertical standard BMC injection molding machines with machine models ranging from 35 tons to 1500 tons.



Vertical Mold Clamping Horizontal Injection BMC Machine is suitable for



1. Overall packaging of electrical and electronic components
2. Automotive industry: automotive casings, bumpers, light frames, light bowls, trunks and other interior and exterior automotive parts and functional parts, etc.
3. Instrument industry: instrument frames, instrument cases, joysticks, etc.
4. Civilian products: sanitary ware, decorations, dishwasher liners, audio products, etc.
5. Other aspects: electronic copy machines, printing machinery, structural components of office machinery, electronic computer parts, etc.



We can customize various models according to the characteristics of BMC materials



1.Specification



ITEM UNIT TFH4-160 TFH4-160S TFH4-160SD TFH4-160R2
INJECTION UNIT
Screw stroke mm 260
Screw Diameter mm 45 50 55 60
Theoretical Injection Volume cm3 414 511 618 735
Injection Weight(PS) g 385 475 574 684
oz 13.56 16.75 20.26 24.12
Max.Injection Pressure Mpa 256 207 171 144
kgf/cm2 2613 2117 1749 1470
Injection Rate cm3/s 178 220 266 317
Injection Speed mm/s 112
Nozzle center height mm 180±30
Distance from nozzle to mold center mm 100
Screw Speed Rotation r.p.m 10~280
CLAMPING UNIT
Clamping Force KN(ton) 1568(160)
Clamping Stroke mm 400
Min.Mold Thickness mm 300(400)
Max.Opening mm 700(800)
(L*W)Distance Between Tie Bars mm 860*420 4 column
(L*W)Max.Mould Size mm 650*650 650*550 550*550 420*420
(L*W)尺寸Platen Size mm 1170*720 730*650 1400*650 Ф1200
Ejector Distance mm 110
Ejector Force KN(ton) 45(4.6)
OTHERS
System Pressure Mpa(kgf/cm2) 13.7(140)
Oil Tank Capacity L 420
Electric Power KW 30 30+2.2
Heater Power KW 11.3
Cooling water capacity L/min 50
Machine Dimensions L*W m 3.8*1.5 4.2*1.5 3.8*2.1 4.2*2.0
H m 3.1 3.3 3.3 3.3
Machine Weight ton 7.6 9.4 10.5 10.8

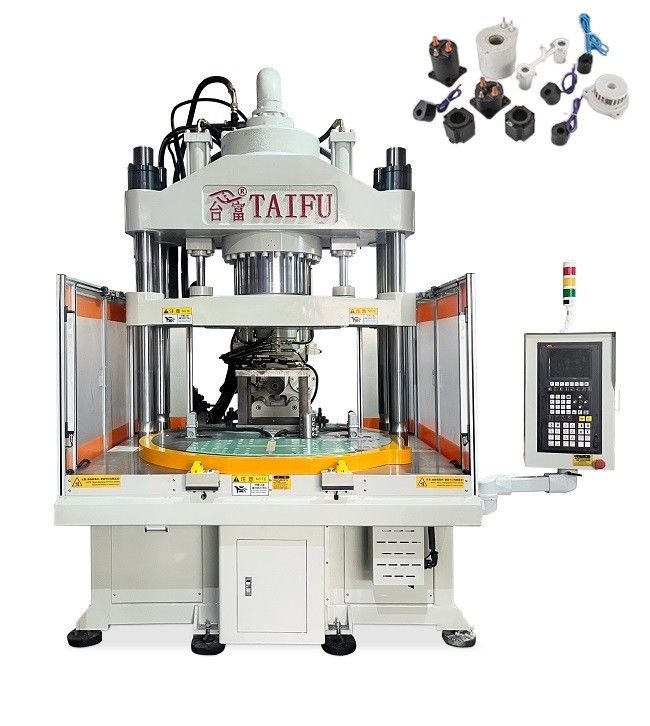

2. Machine Pictures



Vertical Mold Clamping Horizontal Injection BMC Machine with rotary table 0



3.Features

(1) Vertical mold clamping, horizontal injection; widely used in home appliance accessories, coils, stators, rotors, motor accessories and other products
(2) Diversified oil circuit design, semi-closed loop, fully closed loop, simultaneous service and high-speed injection molding
(3) Using imported hydraulic parts, it has fast response, high precision, stability and durability.

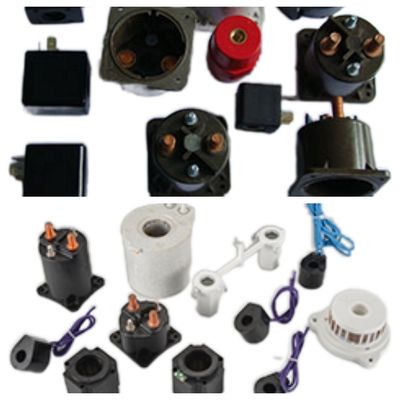

4.Application



Vertical Mold Clamping Horizontal Injection BMC Machine with rotary table 1



If you are interested in it, please contact me without hesitation!
