160 Ton BMC Vertical Clamping Horizontal Injection Molding Machine Servo Motor Injection Molding Machine
It is available to customize machines to meet your...
We can produce Taifu vertical standard BMC injection molding machines with machine models ranging from 35 tons to 1500 tons.
This model is suitable for
1. Shells and structural components of various high and low voltage electrical switches.
2. Explosion-proof electrical components for chemical industry and mining.
3. The motor and solenoid valve are integrally packaged.
4. Insulating rods, insulators, insulating plates of various specifications, etc.
1. Sepcifications:
| |
UNIT |
V35-BMC |
V55-BMC |
V85-BMC |
| INJECTION UNIT |
Screw Diameter |
mm |
Ф22 |
Ф28 |
Ф32 |
| Theoretical Injection Volume |
cm3 |
53 |
86 |
113 |
| Injection Weight(PS) |
g(oz) |
95(3.4) |
155(5.5) |
203(7.2) |
| Max.Injection Pressure |
Mpa(kgf/cm2) |
248(2530) |
212(2170) |
162(1661) |
| Injection Rate |
cm3/s |
44 |
63 |
86 |
| Injection Speed |
mm/s |
116 |
103 |
107 |
| Screw Speed Rotation |
r.p.m |
0-300 |
0-240 |
0-300 |
| Nozzle Out From Platens |
mm |
≥45 |
≥45 |
≥45 |
| CLAMPING UNIT |
Clamping Force |
KN(tf) |
343(35) |
539(55) |
833(85) |
| Clamping Stroke |
mm |
200 |
200 |
250 |
| Min.Mold Thickness |
mm |
150(210) |
180(240) |
230(310) |
| Max.Opening |
mm |
350(410) |
380(440) |
480(560) |
| (L*W)Distance Between Tie Bars |
mm |
410*220 |
445*255 |
520*355 |
| (L*W)Max.Mould Size |
mm |
400*350 |
425*380 |
500*500 |
| (L*W)尺寸Platen Size |
mm |
560*370 |
580*400 |
710*540 |
| Ejector Distance |
mm |
40 |
40 |
50 |
| Ejector Force |
KN(tf) |
17.2(1.75) |
17.2(1.75) |
26.5(2.7) |
| OTHERS |
System Pressure |
Mpa(kgf/cm2) |
13.7(140) |
13.7(140) |
13.7(140) |
| Oil Tank Capacity |
L |
130 |
140 |
280 |
| Electric Power |
KW(HP) |
5.5(7.5) |
7.5(10) |
15(20) |
| Machine Dimensions |
L*W |
m |
1.6*1.2 |
1.9*1.3 |
2.0*1.5 |
| H |
m |
3.2 |
3.3 |
3.6 |
| Machine Weight |
tf |
1.5 |
2.0 |
3.3 |
2. Features:
(1) Wet pellet BMC thermoset injection molding special screw tube group
(2) The storage barrel is embedded with an annular cooling channel for more efficient cooling.
(3) The hydraulic system adopts servo control, which is energy-saving and stable.

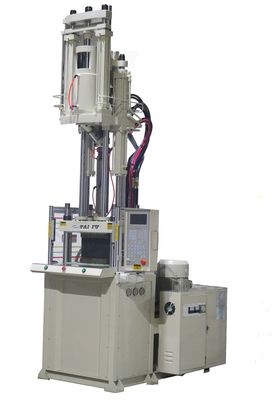

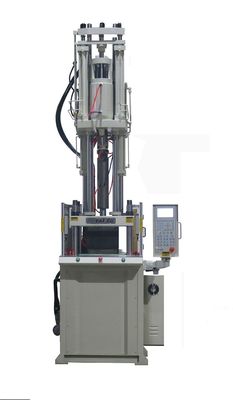

3. Machine Pictures:

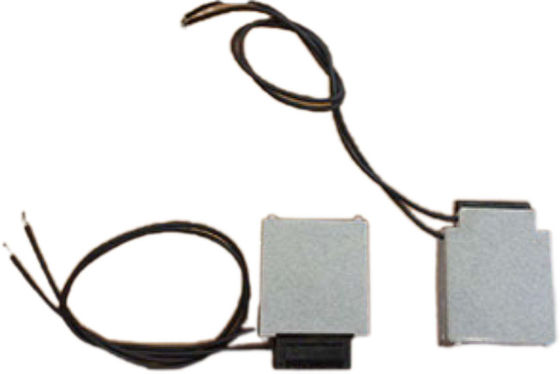

4. Applications:
5. FAQ:
Q: How do mechanical technicians deal with BMC injection molding machine failures?
A: Handle black spot failure issues. The superheated part of the plastic adheres to the inner wall of the melt barrel and is sprayed thoroughly. Remove the melt barrel and clean it, lower the plastic temperature, shorten the BMC injection molding machine heating time and strengthen the heating. Plastic drying handles various materials, paper scraps and other inspection plastics. When the plastic is completely empty into the mold, a focus will be created, which will reduce the injection pressure and speed, lower the plastic temperature, strengthen the mold vents, reduce the mold pressure at will, and change the overheating position.
Q: What is the difference between thermoplastic and injection molding?
A: In thermoset injection molding, cold material is injected into an extremely hot mold to create a part. This process cures the part so it can never be melted again. In thermoplastic injection molding, plastic material is melted and injected into a mold to create a part.
Q: Are you a trading company or manufacturer?
A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.
Q: How long is your delivery time?
A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.
Q: How long is the warranty time?
A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.
Q: What are your terms of payment?
A: 30%TT in advance, 70% balance before shipment. or L/C at sight.
