Vertical Mold Clamping Horizontal Injection BMC Machine Used For Kitchen Utensil Handle
It is available to customize machines to meet your...
We can produce Taifu vertical standard BMC injection molding machines with machine models ranging from 35 tons to 1500 tons.
Vertical Mold Clamping Horizontal Injection BMC Machine is suitable for
1. Overall packaging of electrical and electronic components
2. Automotive industry: automotive casings, bumpers, light frames, light bowls, trunks and other interior and exterior automotive parts and functional parts, etc.
3. Instrument industry: instrument frames, instrument cases, joysticks, etc.
4. Civilian products: sanitary ware, decorations, dishwasher liners, audio products, etc.
5. Other aspects: electronic copy machines, printing machinery, structural components of office machinery, electronic computer parts, etc.
We can customize various models according to the characteristics of BMC materials
1. Sepcifications:
| |
UNIT |
H120S-2M-BMC |
H160S-2M-BMC |
H220S-2M-BMC |
| Injection Unit |
Screw Diameter |
mm |
Φ85 |
Φ100 |
Φ100 |
| Theoretical Injection Volume |
cm3 |
1500 |
2000 |
3000 |
| Max.Injection Pressure |
Mpa(kgf/cm2) |
63(639) |
104(1060) |
68(700) |
| Injection Rate |
cm3/s |
207 |
230 |
305 |
| Injection Speed |
mm/s |
130 |
129 |
130 |
| Barrel capacity |
L |
35 |
45 |
45 |
| Clamping Unit |
Clamping Force |
KN(tf) |
1176(120) |
1624(160) |
2213(220) |
| Clamping Stroke |
mm |
400 |
400 |
400 |
| Open Force |
kN(tf) |
130(13) |
130(13) |
130(13) |
| Min.Mold Thickness |
mm |
350 |
350 |
350 |
| Max.Opening |
mm |
750 |
750 |
750 |
| (L*W)Distance Between Tie Bars |
mm |
525*375 |
760*380 |
760*380 |
| (L*W)Max.Mould Size |
mm |
500*580 |
560*670 |
560*670 |
| (L*W)Platen Size |
mm |
500*580 |
560*670 |
560*670 |
| Ejector Distance |
mm |
100 |
120 |
120 |
| Ejector Force |
KN(tf) |
87.7(8.6) |
95(9.3) |
106(10.4) |
| Others |
System Pressure |
Mpa(kgf/cm2) |
17.2(175) |
18.4(188) |
20.6(210) |
| Oil Tank Capacity |
L |
300 |
300 |
300 |
| Electric Power |
KW(HP) |
26 |
26 |
34 |
| Machine Size |
L*W*H |
m |
3385*126*2840 |
3385*1260*2840 |
3385*1260*2840 |
| Machine Weight |
tf |
19 |
20 |
22 |
2. Features:
(1) Vertical mold clamping, horizontal injection; widely used in home appliance accessories, coils, stators, rotors, motor accessories and other products
(2)A special hydraulic feeding device is installed on the shooting cylinder and is directly connected to the feeding port of the feeding tube to ensure that the barrel will not be deformed due to the force of feeding.
(3)Using imported hydraulic parts, it has fast response, high precision, stability and durability.

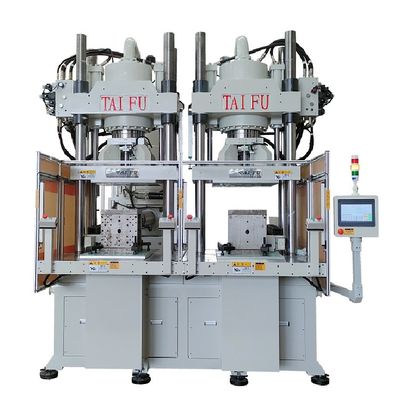

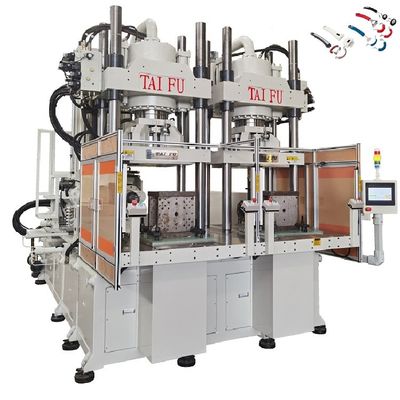

3. Machine Pictures:

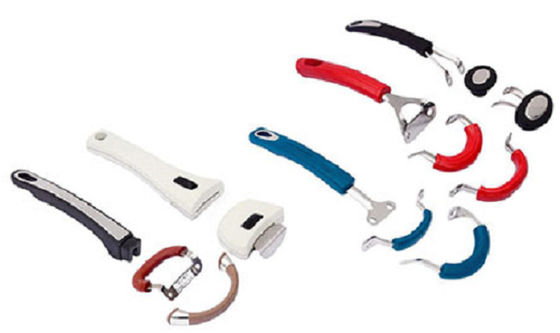

4. Applications:
5. FAQ:
Q: Injection molding process of BMC injection molding machine
A: Temperature: barrel temperature and mold temperature
During injection molding processing, BMC is required to maintain a low viscosity flow state for a long time under the barrel temperature; generally, the barrel temperature should be able to meet the lower limit of BMC.
Q: What is the injection pressure of BMC injection molding machine?
A: Since BMC has poor fluidity, fast solidification, and complex mold structure, the injection pressure should be higher, generally 80~16OMPa.
Q: How long is your delivery time?
A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.
Q: How long is the warranty time?
A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime.
Q: What are your terms of payment?
A: 30%TT in advance, 70% balance before shipment. or L/C at sight.
