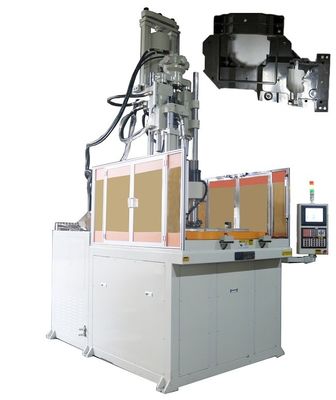

200 Ton Rotary Table Vertical Injection Molding Machine For BMC Products
It is available to customize machines to meet your...
We can produce Taifu vertical standard BMC injection molding machines with machine models ranging from 35 tons to 1500 tons.
Rotary table vertical BMC injection molding machine is suitable for
1. Overall packaging of electrical and electronic components
2. Automotive industry: automotive casings, bumpers, light frames, light bowls, trunks and other interior and exterior automotive parts and functional parts, etc.
3. Instrument industry: instrument frames, instrument cases, joysticks, etc.
4. Civilian products: sanitary ware, decorations, dishwasher liners, audio products, etc.
5. Other aspects: electronic copy machines, printing machinery, structural components of office machinery, electronic computer parts, etc.
If you want to learn more, please contact us.
1. Sepcifications:
| |
UNIT |
V200-BMC |
V200S-BMC |
V200R2-BMC |
| INJECTION UNIT |
Screw Diameter |
mm |
Ф55 |
Ф60 |
Ф65 |
| Theoretical Injection Volume |
cm3 |
594 |
706 |
829 |
| Injection Weight(PS) |
g(oz) |
1069(37.6) |
1271(44.7) |
1492(52.5) |
| Max.Injection Pressure |
Mpa(kgf/cm2) |
200(2046) |
198(2022) |
169(1723) |
| Injection Rate |
cm3/s |
214 |
254 |
298 |
| Injection Speed |
mm/s |
90 |
| Screw Speed Rotation |
r.p.m |
0-220 |
| Nozzle Out From Platens |
mm |
≥45 |
| CLAMPING UNIT |
Clamping Force |
KN(tf) |
1960(200) |
| Clamping Stroke |
mm |
350 |
| Min.Mold Thickness |
mm |
350(450) |
| Max.Opening |
mm |
700(800) |
| (L*W)Distance Between Tie Bars |
mm |
910*450 |
670*720 |
— |
| (L*W)Max.Mould Size |
mm |
890*770 |
760*630 |
530*530 |
| (L*W)尺寸Platen Size |
mm |
1250*790 |
780*650 |
Ф1500 |
| Ejector Distance |
mm |
110 |
150 |
150 |
| Ejector Force |
KN(tf) |
45(4.6) |
| OTHERS |
System Pressure |
Mpa(kgf/cm2) |
13.7(140) |
| Oil Tank Capacity |
L |
800 |
850 |
| Electric Power |
KW(HP) |
30(40) |
37(50) |
| Machine Dimensions |
L*W |
m |
2.4*2.1 |
2.9*2.1 |
3.2*2.5 |
| H |
m |
5.6 |
5.8 |
5.9 |
| Machine Weight |
tf |
11.9 |
13.0 |
14.3 |
2. Features:
(1) Turntable servo control, rotation cycle is 2 seconds, fast, stable and efficient.
(2)The turntable alternately rotates 180° back and forth on the same horizontal plane for injection molding on the inside, and the operator on the outside can simultaneously pick and place products, increasing the efficiency by 50%.
(3)Automatic devices such as automatic insertion and removal can be installed to achieve fully automated operation of the whole machine.
(4)Widely used in electrical insulation parts, high temperature resistance parts etc.

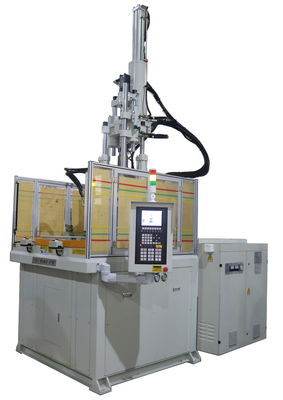

3. Machine Pictures:

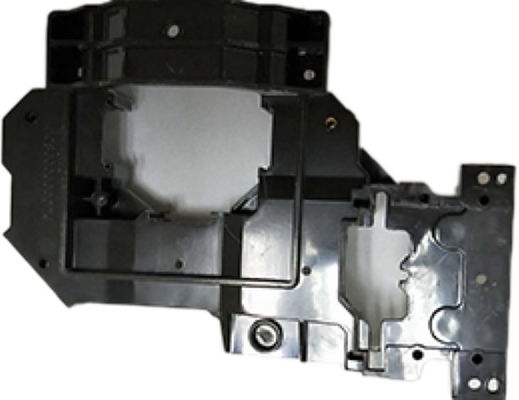

4. Applications:
5. FAQ:
Q: Injection molding process of BMC injection molding machine
A: Temperature: barrel temperature and mold temperature
During injection molding processing, BMC is required to maintain a low viscosity flow state for a long time under the barrel temperature; generally, the barrel temperature should be able to meet the lower limit of BMC. The temperature of the barrel is generally divided into two or three stages of control. The temperature near the hopper is lower and the temperature near the nozzle is higher. Generally the difference is 20-60 degrees, and the mold temperature is generally controlled at 135~185 degrees.
Q: What is the difference between thermoplastic and injection molding?
A: In thermoset injection molding, cold material is injected into an extremely hot mold to create a part. This process cures the part so it can never be melted again. In thermoplastic injection molding, plastic material is melted and injected into a mold to create a part.
Q: What is the injection pressure of BMC injection molding machine?
A: Since BMC has poor fluidity, fast solidification, and complex mold structure, the injection pressure should be higher, generally 80~16OMPa.
Q: Are you a trading company or manufacturer?
A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.
Q: How long is your delivery time?
A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.
Q: How long is the warranty time?
A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.
Q: What are your terms of payment?
A: 30%TT in advance, 70% balance before shipment. or L/C at sight.
