BMC Single Slide Vertical Injection Molding Machine 120 Ton
It is available to customize machines to meet your...
The 100 Ton BMC Single Slide Vertical Injection Molding Machine is a specialized machine used for the injection molding of BMC (Bulk Molding Compound) materials. It is designed to provide precise and efficient molding of BMC components.
This model is suitable for
1. Shells and structural components of various high and low voltage electrical switches.
2. Explosion-proof electrical components for chemical industry and mining.
3. The motor and solenoid valve are integrally packaged.
4. Insulating rods, insulators, insulating plates of various specifications, etc.
If you want to learn more, please contact us. We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solutions.
1. Sepcifications:
| SPECIFICATION MODEL |
UNIT |
V120-BMC |
V120S-BMC |
V120R2-BMC |
| INJECTION UNIT |
Screw Diameter |
mm |
Ф36 |
Ф40 |
Ф45 |
| Theoretical Injection Volume |
cm3 |
162 |
201 |
254 |
| Injection Weight(PS) |
g(oz) |
292(10.3) |
362(12.7) |
257(16.1) |
| Max.Injection Pressure |
Mpa(kgf/cm2) |
222(2268) |
180(1838) |
142(1452) |
| Injection Rate |
cm3/s |
114 |
140 |
178 |
| Injection Speed |
mm/s |
112 |
| Screw Speed Rotation |
r.p.m |
0-300 |
| Nozzle Out From Platens |
mm |
≥45 |
| CLAMPING UNIT |
Clamping Force |
KN(tf) |
1176(120) |
| Clamping Stroke |
mm |
280 |
| Min.Mold Thickness |
mm |
280(380) |
| Max.Opening |
mm |
560(660) |
| (L*W)Distance Between Tie Bars |
mm |
760*380 |
760*380 |
— |
| (L*W)Max.Mould Size |
mm |
740*580 |
580*540 |
420*420 |
| (L*W)尺寸Platen Size |
mm |
980*600 |
600*560 |
Ф1200 |
| Ejector Distance |
mm |
95 |
100 |
100 |
| Ejector Force |
KN(tf) |
45(4.6) |
| OTHERS |
System Pressure |
Mpa(kgf/cm2) |
13.7(140) |
| Oil Tank Capacity |
L |
350 |
410 |
| Electric Power |
KW(HP) |
18.5(25) |
22(30) |
| Machine Dimensions |
L*W |
m |
2.0*1.8 |
2.4*1.8 |
2.5*2.0 |
| H |
m |
4.3 |
4.5 |
4.8 |
| Machine Weight |
tf |
5.8 |
6.3 |
6.7 |
2. Features:
(1) Vertical mold clamping and horizontal injection are suitable for injection molding of electrical and electronic components, tableware handles, automobiles, electronics, instruments and other parts.
(2)Self-developed BMC-specific auxiliary feeding device
The configuration can not only ensure stable pressure and accurate dosage of raw materials for the feeding unit, but also store a certain amount of raw materials.
(3) The skateboard slides out, and the mold is moved up and down for easy operation.
operation, increase production capacity

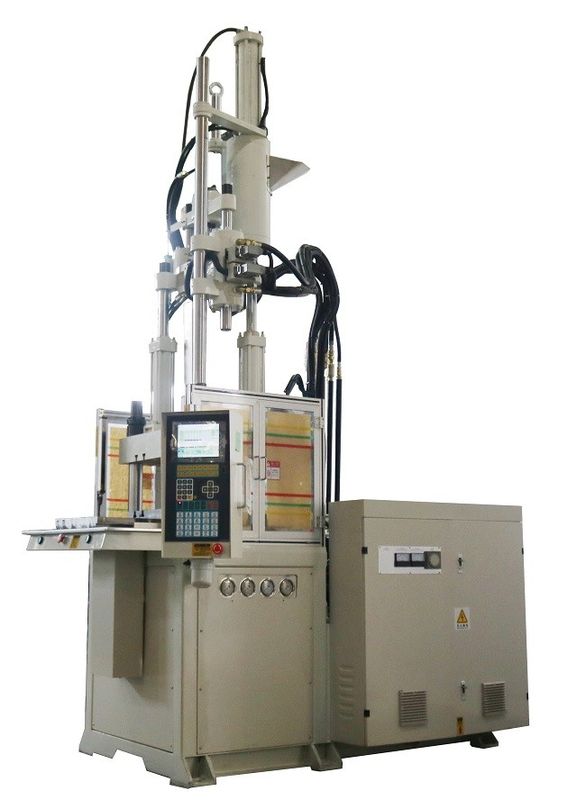

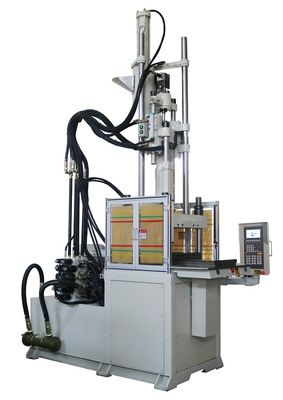

3. Machine Pictures:

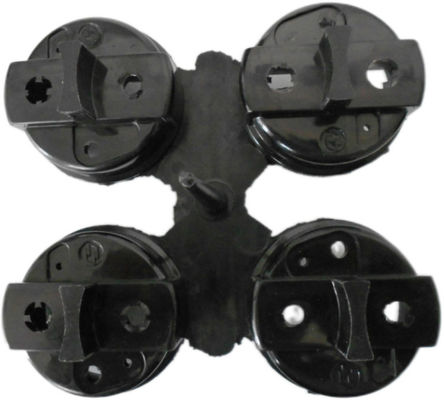

4. Applications:
5. FAQ:
Q: What is the molding cycle of BMC injection molding machine?
A: Due to the different size and complexity of plastic parts, the process time of each stage is also different. Generally, the injection time is 2~20s and the heat preservation time is 10-20s/mm.
Q: Injection molding process of BMC injection molding machine
A: Temperature: barrel temperature and mold temperature
During injection molding processing, BMC is required to maintain a low viscosity flow state for a long time under the barrel temperature; generally, the barrel temperature should be able to meet the lower limit of BMC. The temperature of the barrel is generally divided into two or three stages of control. The temperature near the hopper is lower and the temperature near the nozzle is higher. Generally the difference is 20-60 degrees, and the mold temperature is generally controlled at 135~185 degrees.
Q: What is the difference between thermoplastic and injection molding?
A: In thermoset injection molding, cold material is injected into an extremely hot mold to create a part. This process cures the part so it can never be melted again. In thermoplastic injection molding, plastic material is melted and injected into a mold to create a part.
Q: How long is your delivery time?
A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.
Q: How long is the warranty time?
A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.
Q: What are your terms of payment?
A: 30%TT in advance, 70% balance before shipment. or L/C at sight.
