120 Ton High Precision Bmc Vertical Injection Molding Machine
It is available to customize machines to meet your...
We can produce Taifu vertical standard BMC injection molding machines with machine models ranging from 35 tons to 1500 tons.
This model is suitable for
1. Shells and structural components of various high and low voltage electrical switches.
2. Explosion-proof electrical components for chemical industry and mining.
3. The motor and solenoid valve are integrally packaged.
4. Insulating rods, insulators, insulating plates of various specifications, etc.
If you want to learn more, please contact us. We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solutions.
1. Sepcifications:
| |
UNIT |
V120-BMC |
V120S-BMC |
V120R2-BMC |
| INJECTION UNIT |
Screw Diameter |
mm |
Ф36 |
Ф40 |
Ф45 |
| Theoretical Injection Volume |
cm3 |
162 |
201 |
254 |
| Injection Weight(PS) |
g(oz) |
292(10.3) |
362(12.7) |
257(16.1) |
| Max.Injection Pressure |
Mpa(kgf/cm2) |
222(2268) |
180(1838) |
142(1452) |
| Injection Rate |
cm3/s |
114 |
140 |
178 |
| Injection Speed |
mm/s |
112 |
| Screw Speed Rotation |
r.p.m |
0-300 |
| Nozzle Out From Platens |
mm |
≥45 |
| CLAMPING UNIT |
Clamping Force |
KN(tf) |
1176(120) |
| Clamping Stroke |
mm |
280 |
| Min.Mold Thickness |
mm |
280(380) |
| Max.Opening |
mm |
560(660) |
| (L*W)Distance Between Tie Bars |
mm |
760*380 |
760*380 |
— |
| (L*W)Max.Mould Size |
mm |
740*580 |
580*540 |
420*420 |
| (L*W)尺寸Platen Size |
mm |
980*600 |
600*560 |
Ф1200 |
| Ejector Distance |
mm |
95 |
100 |
100 |
| Ejector Force |
KN(tf) |
45(4.6) |
| OTHERS |
System Pressure |
Mpa(kgf/cm2) |
13.7(140) |
| Oil Tank Capacity |
L |
350 |
410 |
| Electric Power |
KW(HP) |
18.5(25) |
22(30) |
| Machine Dimensions |
L*W |
m |
2.0*1.8 |
2.4*1.8 |
2.5*2.0 |
| H |
m |
4.3 |
4.5 |
4.8 |
| Machine Weight |
tf |
5.8 |
6.3 |
6.7 |
2. Features:
(1) Detachable transitional unloading pipe, easy to clean the rubber material
(2) The hydraulic system adopts servo control, which is energy-saving and stable.
(3) Wet pellet BMC thermoset injection molding special screw tube group

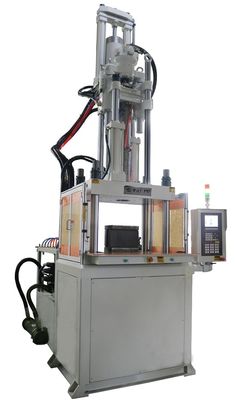

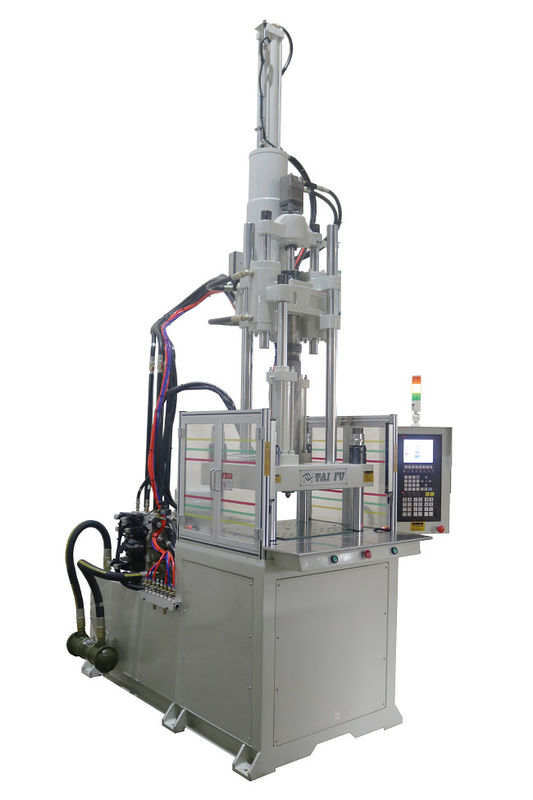

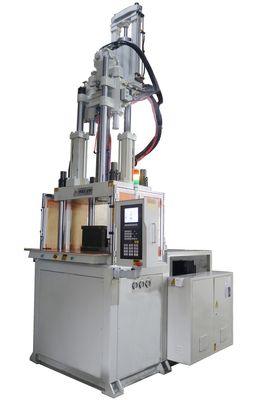

3. Machine Pictures:
4. Applications:
5. FAQ:
Q: What is the injection pressure of BMC injection molding machine?
A: Since BMC has poor fluidity, fast solidification, and complex mold structure, the injection pressure should be higher, generally 80~16OMPa.
Q: Injection molding process of BMC injection molding machine
A: Temperature: barrel temperature and mold temperature
During injection molding processing, BMC is required to maintain a low viscosity flow state for a long time under the barrel temperature; generally, the barrel temperature should be able to meet the lower limit of BMC. The temperature of the barrel is generally divided into two or three stages of control. The temperature near the hopper is lower and the temperature near the nozzle is higher. Generally the difference is 20-60 degrees, and the mold temperature is generally controlled at 135~185 degrees.
Q: Are you a trading company or manufacturer?
A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.
Q: How long is your delivery time?
A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.
Q: How long is the warranty time?
A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.
Q: What are your terms of payment?
A: 30%TT in advance, 70% balance before shipment. or L/C at sight.
