Vertical Lock And Horizontal Injection BMC Injection Molding Machine For Kitchen Utensil Handle
BMC(DMC) material is an abbreviation of Bulk(Dough)molding compounds, that is, belled molding plastics.
Domestic often called unsaturated polyester pellet molding plastics. Its main raw materials are GF(cut glass fiber), UP(unsaturated resin), MD(filler) and various additives (low shrinkage agent, curing agent, filler, internal release agent, etc.), which are fully mixed into a pellet prepreg. It has outstanding electrical properties (such as insulation, antistatic, arc resistance and leakage resistance, etc.), thermal conductivity, mechanical strength, dimensional stability, moisture resistance and corrosion resistance, flame retardant and formability and is widely welcomed by people and widely used in household appliances, industrial appliances, automobiles and office supplies.
This kind of machine is a vertical lock and horizontal injection injection molding machine, which can produce BMC material products, such as kitchen utensil handle, auto parts.
1.Specification
| ITEM |
UNIT |
TFH4-160 |
TFH4-160S |
TFH4-160SD |
TFH4-160R2 |
| INJECTION UNIT |
| Screw stroke |
mm |
260 |
| Screw Diameter |
mm |
45 |
50 |
55 |
60 |
| Theoretical Injection Volume |
cm3 |
414 |
511 |
618 |
735 |
| Injection Weight(PS) |
g |
385 |
475 |
574 |
684 |
| oz |
13.56 |
16.75 |
20.26 |
24.12 |
| Max.Injection Pressure |
Mpa |
256 |
207 |
171 |
144 |
| kgf/cm2 |
2613 |
2117 |
1749 |
1470 |
| Injection Rate |
cm3/s |
178 |
220 |
266 |
317 |
| Injection Speed |
mm/s |
112 |
| Nozzle center height |
mm |
180±30 |
| Distance from nozzle to mold center |
mm |
100 |
| Screw Speed Rotation |
r.p.m |
10~280 |
| CLAMPING UNIT |
| Clamping Force |
KN(ton) |
1568(160) |
| Clamping Stroke |
mm |
400 |
| Min.Mold Thickness |
mm |
300(400) |
| Max.Opening |
mm |
700(800) |
| (L*W)Distance Between Tie Bars |
mm |
860*420 |
4 column |
| (L*W)Max.Mould Size |
mm |
650*650 |
650*550 |
550*550 |
420*420 |
| (L*W)尺寸Platen Size |
mm |
1170*720 |
730*650 |
1400*650 |
Ф1200 |
| Ejector Distance |
mm |
110 |
| Ejector Force |
KN(ton) |
45(4.6) |
| OTHERS |
| System Pressure |
Mpa(kgf/cm2) |
13.7(140) |
| Oil Tank Capacity |
L |
420 |
| Electric Power |
KW |
30 |
30+2.2 |
| Heater Power |
KW |
11.3 |
| Cooling water capacity |
L/min |
50 |
| Machine Dimensions |
L*W |
m |
3.8*1.5 |
4.2*1.5 |
3.8*2.1 |
4.2*2.0 |
| H |
m |
3.1 |
3.3 |
3.3 |
3.3 |
| Machine Weight |
ton |
7.6 |
9.4 |
10.5 |
10.8 |

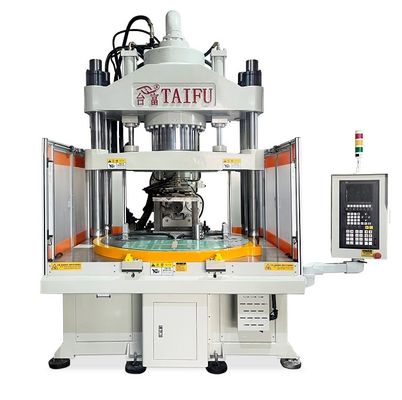

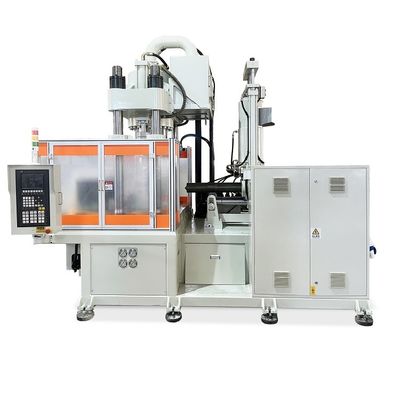

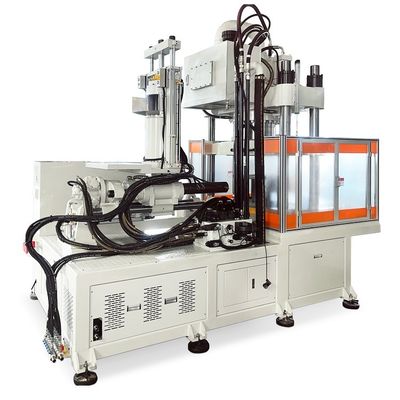

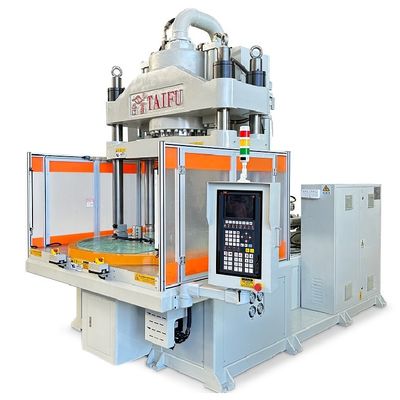

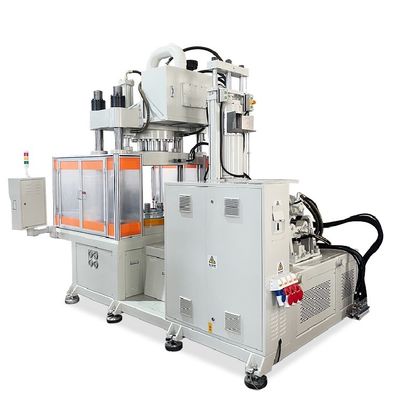

2. Machine Pictures
3.Features
1. Wet mass BMC thermosetting injection molding special material tube and screw group.
2.Double mold molding, the injection unit left and right translation alternate injection.
3.Around the lower die slide, after injection molding slide out to take the finished product.
4. The upper die independent cutting needle, can open the die side cutting needle.
4.Application
1. Overall package of electrical and electronic components.
2. Automobile industry: automobile shell, bumper, lamp frame, lamp bowl, trunk and other car inside and outside parts and functional parts.
3. Instrument industry: instrument frame, instrument housing, joystick, etc.
4. Civilian products: sanitary ware, decorations, dishwasher liner, audio products, etc.
5.Other aspects: electronic copiers, printing machinery, office machinery structural parts, electronic computer parts, etc.
If you are interested in it, please contact me without hesitation!
