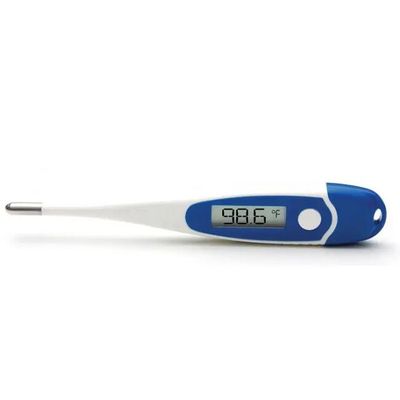

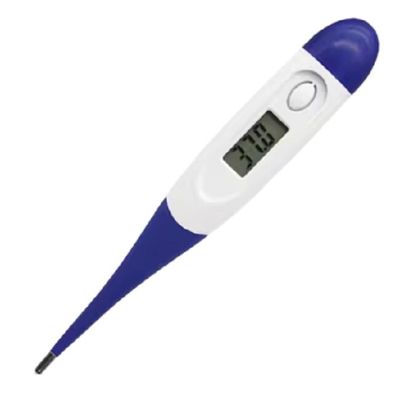

High Efficiency 85 Ton Vertical High Speed Injection Molding Machine For thermometer
We are a professional manufacturer of vertical injection molding machines with 17 years of manufacturing experience. The High Speed Vertical Injection Molding machine is one of our new version products.
The high speed of the machine is mainly reflected in the ability to choose high speed and high pressure for injection when injecting glue. Using an energy storage device, the maximum firing rate can reach 600mm/sec. Adopting imported hydraulic components and electronic control, it has response, high accuracy, stability, and durability. Optional Bosch Rexroth servo valve, fully closed-loop control for injection, high injection accuracy, making it best choice for high-precision products.
We can customize and develop according to the actual needs of customers and provide the most precise, efficient and economical personalized combination solutions.
1. Sepcifications:
| DONGGUAN TAIFU MACHINEY CO.,LTD |
| High Speed Machine Technical Parameters |
| ITEMS |
UNIT |
single cylinder injection |
|
|
a |
b |
c |
| Screw stroke |
mm |
80 |
100 |
100 |
| Screw Diameter |
mm |
16 |
18 |
20 |
20 |
22 |
24 |
22 |
24 |
26 |
| Theoretical Injection Volume |
cm3 |
16 |
20 |
25 |
31 |
38 |
45 |
38 |
45 |
53 |
| Injection Weight(PS) |
g |
15 |
19 |
23 |
29 |
35 |
42 |
35 |
42 |
49 |
| oz |
0.53 |
0.67 |
0.82 |
1.03 |
1.25 |
1.48 |
1.25 |
1.48 |
1.74 |
| Max.Injection Pressure |
Mpa |
263 |
207 |
168 |
220 |
181 |
152 |
230 |
193 |
164 |
| kgf/cm2 |
2680 |
2117 |
1715 |
2240 |
1851 |
1556 |
2343 |
1969 |
1678 |
| Injection Rate |
(Standard) |
cm3/s |
40 |
51 |
63 |
63 |
76 |
90 |
76 |
90 |
106 |
| Injection Speed |
(Standard) |
mm/s |
200 |
200 |
200 |
| Injection Rate |
(High Speed) |
cm3/s |
90 |
115 |
141 |
126 |
152 |
181 |
133 |
158 |
186 |
| Injection Speed |
(High Speed) |
mm/s |
450 |
400 |
350 |
| Screw Speed Rotation |
r.p.m |
10~350 |
10~350 |
10~350 |
| Nozzle Out From Platens |
mm |
≥45 |
≥45 |
≥45 |
| Heater Power |
KW |
3.6 |
3.6 |
4.3 |
2. Features:
- After the mold is opened, the lower mold automatically moves in front of the operator, making it easier to operate and safer.
- Multi-stage temperature control, multi-stage injection pressure and injection speed, and stepless adjustment of injection back pressure are more suitable for the molding of various precision plastic parts.
- Easier to embed automation equipment to achieve fully automated production lines.

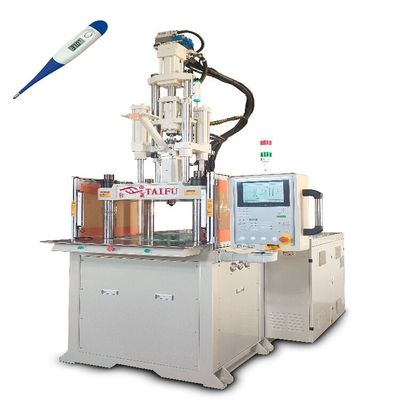

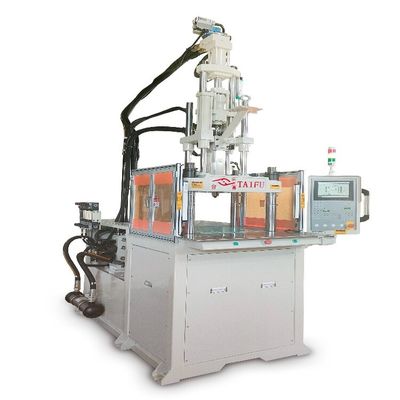

3. Machine Pictures:
4. Applications:
5. Certifications
6. Company profile
TAIFU Machinery is a professional manufacturer of vertical injection molding machines integrated with strong capabilities of R&D, manufacturing and services, with more than 15 years manufacturing experience; 100 employees; 15,000 square feet of manufacturing floor spaces and with facility in the Dongguan city, Guangdong province, China. We are certified by ISO9001, CE and patents 20 inventions.
We aims to supply quality products and excellent services to create value for customers on the basis of integrity, innovation, and win-win cooperation. TAIFU Machinery will be your most valuable and reliable partner in business.
We have 15,000 square feet of manufacturing floor space and with facilities in China. All the machines are manufactured by our own employees in our own factory.
- Machine assembly wproshop
- Finished product machine shop
- PHOTOS OF DIFFERENT EXHIBITIONS
We products and delivers more than 2,000 sets of vertical injection molding machines annually. All the machines will be packed well before shipment.
We provide one-stop solutions of plastic injection molding from raw material to automation, trying to create more values for our customers.
For more than 15 years, we have recognized our customers as long-term partners, growing together. Take advantage of this global strength, and grow with us as we grow with you.
There are wide range of vertical plastic injection molding machines (thermoplastic, rubber) we provide, including Rotary table vertical injection molding machine, Bakelite machine, BMC Machine, LSR silicone injection molding machine, C-type vertical injection molding machine, etc. Not only can we provide standard machines, but we are able to also customize machines to meet your unique needs.
Your Professional Vertical Injection Molding Machine Manufacturer-TAIFU
We are ready to provide a well-built, high-performance products. Contact Us Now!
6. FAQ:
Q: Are you a trading company or manufacturer?
A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.
Q: How long is your delivery time?
A: Small machines are in stock. Generally, the delivery time of standard machines is 35 working days. For customized machines, it will be 35-45 working days.
Q: How long is the warranty time?
A: 12 months warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.
Q: What are your terms of payment?
A: 50% in advance, 50% balance before shipment by T/T.
If you are interested in our machines, please do not hesitate to CONTACT US!
