High Precision Vertical Plastic High Speed Injection Molding Machine For Different Connectors

High Precision Vertical Plastic High Speed Injection Molding Machine For Different Connectors
High Precision Vertical Plastic High Speed Injection Molding Machine For Different Connectors
High Precision Vertical Plastic High Speed Injection Molding Machine For Different Connectors High Precision Vertical Plastic High Speed Injection Molding Machine For Different Connectors High Precision Vertical Plastic High Speed Injection Molding Machine For Different Connectors

Large Image :  High Precision Vertical Plastic High Speed Injection Molding Machine For Different Connectors

Product Details:
Place of Origin: Dongguan, China
Brand Name: TAIFU
Certification: CE, ISO9001
Model Number: TFV4-55-SP
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: All the machines are fixed and well packaged in the plywood cases.
Delivery Time: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 220 sets/month
Contact Now

High Precision Vertical Plastic High Speed Injection Molding Machine For Different Connectors

Description
Product Name: High Precision Vertical Plastic High Speed Injection Molding Machine For Different Connector Model: TFV4-55-SP
After-sales Service Provided: 1 Year Usage: Different Connector
Advantage: High Precision Max Injection Rate: 600mm³ /s
Electric Power: 15KW-20KW Max Clamping Force: 55 Tons
Highlight:

Vertical Injection Molding Machines

,

Precision High Speed Injection Molding Machine

,

High Speed vertical insert moulding machine

High Precision Vertical Plastic High Speed Injection Molding Machine For Different Connectors



TAIFU vertical high-speed injection molding machine has a maximum injection rate of 600 mm³ /s. The machine is equipped with a high-performance control system to provide a strong guarantee for high-quality injection molding accuracy and stability.



High-speed injection molding and precision molding are the best choice for thin-walled and micro-injection molding products. Optional Bosch Rexroth servo valve provides fully closed-loop injection control and higher output accuracy. It can be equipped with a fully automatic strapping device to realize fully automated connector injection molding production.



1. Sepcifications:



Specification Model Unit Parameter
Injection Unit Screw Diameter mm Ф22 Ф26
Theoretical Injection Volume cm3 38 53
Injection Weight(PS) g(oz) 35(1.23) 49(1.72)
Max.Injection Pressure Mpa(kgf/cm2) 181(1851) 130(1325)
Injection Rate cm3/s 119 167
Injection Speed mm/s 315
Screw Speed Rotation r.p.m 0-350
Nozzle Out From Platens mm ≥45
Clamping Unit Clamping Force KN(tf) 539(55)
Clamping Stroke mm 250
Min.Mold Thickness mm 180(240)
Max.Opening mm 380(440)
(L*W)Distance Between Tie Bars mm 445*255
(L*W)Max. Mould Size mm 425*380
(L*W)尺寸Platen Size mm 580*400
Ejector Distance mm 40
Others Ejector Force KN(tf) 17.2(1.75)
System Pressure Mpa(kgf/cm2) 13.7(140)
Oil Tank Capacity L 140
Electric Power KW(HP) 15(20)
Heater Power KW 2.2
Machine Size L*W*H m 1.9*1.3*3.1
Machine Weight tf 1.7







2. Features:



  • High-speed injection and precision molding are the best choice for thin-walled micro-injection molding products.
  • Using energy storage device, the maximum firing speed can reach 600 mm³/s
  • It can be equipped with a fully automatic strapping device to realize fully automated connector injection molding production, ensuring the production process is accurate and stable.

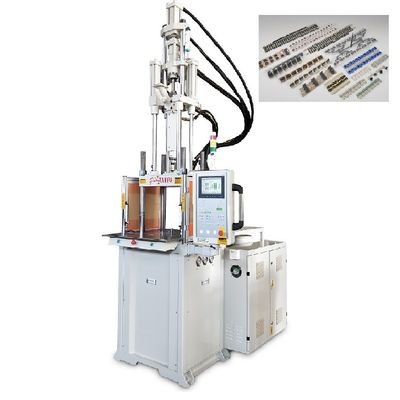

3. Machine Pictures:



High Precision Vertical Plastic High Speed Injection Molding Machine For Different Connectors 0

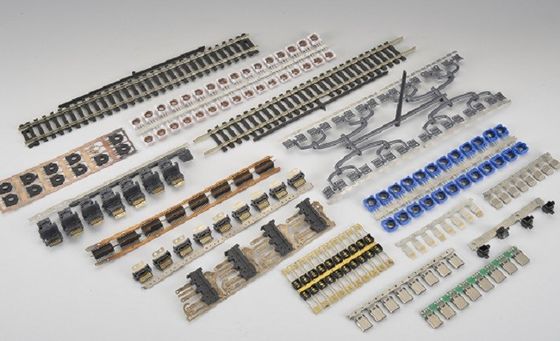

4. Applications:



High Precision Vertical Plastic High Speed Injection Molding Machine For Different Connectors 1



5. FAQ:



Q: Why choose high-speed vertical injection molding machine to produce connectors?

A: The high-speed standard machine specially developed by TAIFU for the connector market has faster operating speed and more precise control system, resulting in higher production efficiency and higher qualification rate in actual production.



Q: Are you a trading company or manufacturer?

A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.



Q: How long is your delivery time?

A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.



Q: How long is the warranty time?

A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.



Q: What are your terms of payment?

A: 30%TT in advance, 70% balance before shipment. or L/C at sight.



If you are interested in our machines, please do not hesitate to CONTACT US!
