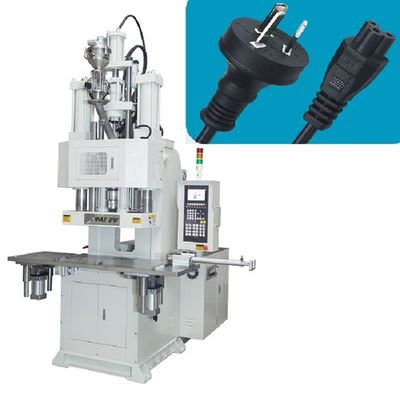

Power Plug Making Machine 55T Vertical Injection Molding Machine With C-Type
It is available to customize machines to meet your...
TAIFU-Product Catalog -.pdf
Company Production -TAIFU-.pdf
The C-type vertical injection molding machine is also called a guide column-less machine. Its plane shape is like a C-type, so it is called a C-type machine. It facilitates the installation of molds and the placement of products. Compared with column-mounted machines, it is easier for employees to operate and has a larger operating space. It can be paired with single slide(S), double slide(SD), and rotary(R) according to customer needs. Among these, the double slide vertical clamping mold, vertical injection. With double slide plate design, alternating slideing, the first mock examination injection molding, another the first mock examination take and place products.
Taifu Machinery has been specializing in the production of injection molding machines for more than 15 years. It has spent a long time and money on the development of guide-pillar-free machines. Fortunately, the research and development results have been very successful.
1. Sepcifications:
| |
UNIT |
TFC-55 |
| Injection Unit |
Screw stroke |
mm |
150 |
| Screw Diameter |
mm |
40 |
| Theoretical Injection Volume |
cm3 |
188 |
| Injection Weight(PS) |
g |
175 |
| oz |
6.18 |
| Max.Injection Pressure |
Mpa |
146 |
| kgf/cm2 |
1492 |
| Injection Rate |
cm3/s |
113 |
| Injection Speed |
mm/s |
90 |
| Nozzle center height |
mm |
150±25 |
| Distance from nozzle to mold center |
mm |
75 |
| Screw Speed Rotation |
r.p.m |
10~240 |
| Clamping Unit |
Clamping Force |
KN(ton) |
539(55) |
| Clamping Stroke |
mm |
200 |
| Min.Mold Thickness |
mm |
175 |
| Max.Opening |
mm |
375 |
| (L*W)Max.Mould Size |
mm |
480*330 |
| (L*W)Platen Size |
mm |
500*335 |
| Ejector Distance |
mm |
50 |
| Ejector Force |
KN(ton) |
45(4.6) |
| Others |
System Pressure |
Mpa(kgf/cm2) |
13.7(140) |
| Oil Tank Capacity |
L |
160 |
| Electric Power |
KW |
7.5 |
| Heater Power |
KW |
8.4 |
| Cooling water capacity |
L/min |
30 |
| Machine Dimensions |
L*W*H |
m |
2.6*1.0*2.1 |
| Machine Weight |
ton |
3 |
2. Features:
-
Vertical direct pressure clamping, horizontal injection, inorganic column design, open space on three sides
-
Dual proportional pressure, flow oil circuit control, strong structural structure, high pressure and fast speed
-
Direct pressure mold clamping, dual-cylinder injection system, good precision and long life
3. Machine Pictures:

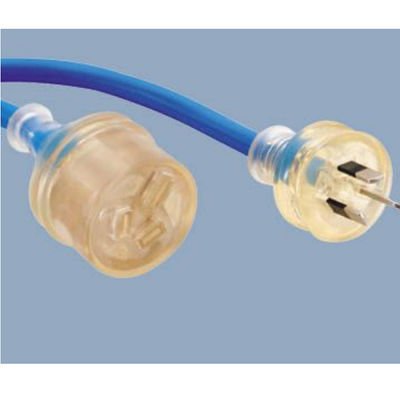

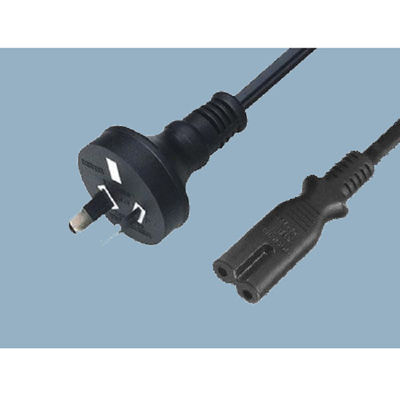

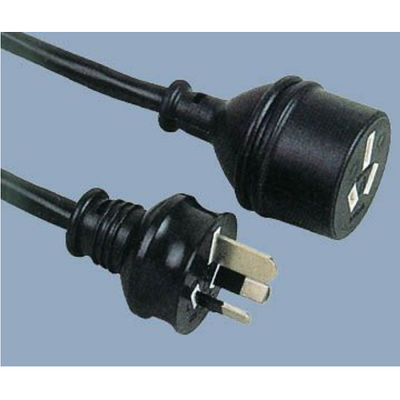

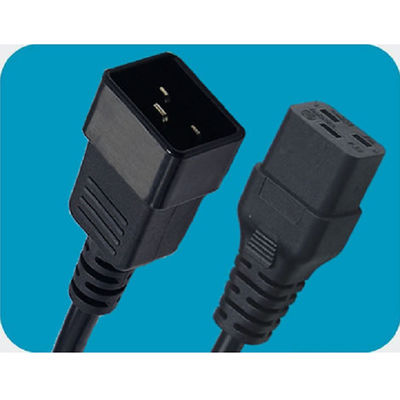

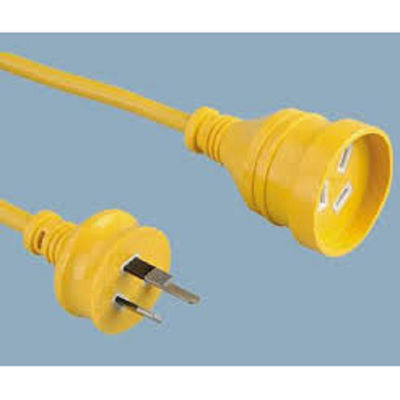

4. Applications:
5. FAQ:
Q: Do you conduct a quality check on all goods before delivery?
A: Absolutely, we ensure 100% testing of all products before delivery to guarantee their quality and reliability
Q: Are you a trading company or manufacturer?
A: We are a factory located in Dongguan city-the largest industrial manufacturing area in China. All the machines are manufactured by our own employees in our own factory.
Q: How long is your delivery time?
A: Small machines are in stock. Generally, the delivery time of standard machines is 7~35 working days. For customized machines, it will be 40~60 working days.
Q: How long is the warranty time?
A: 1 year warranty for all the machines. We provide free parts for any not man-made damages and quality problems. Our technical support will accompany with you during the machines' lifetime. If machines are operated properly, it can service more than 20 years.
