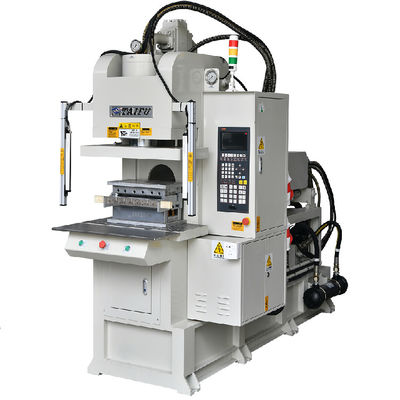

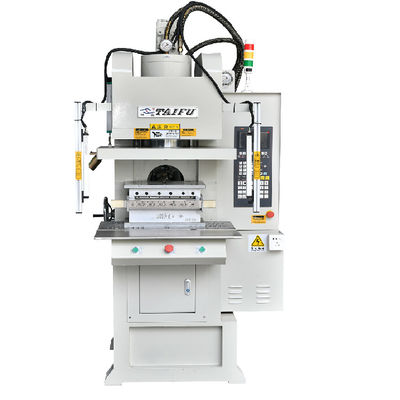

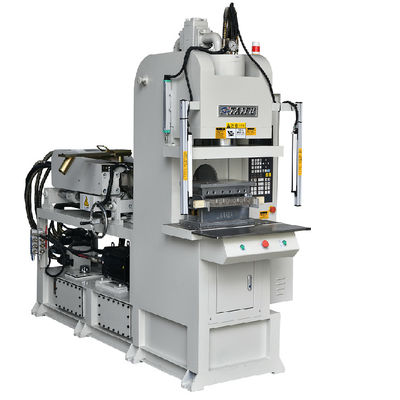

Electrical Plugs Manufacturing Machine 55Ton C Type Injection Molding Machine
This type of machine is commonly used for small to medium-sized plastic parts production, such as mobile phone casings, electronic components, and other precision parts. The 45ton capacity refers to the clamping force exerted by the machine to hold the mold together during the injection process. This clamping force ensures that the mold remains closed and properly sealed while the molten material is injected.
Machine Technical Parameters:
| ITEMS |
UNIT |
TFC-35 |
TFC-35S |
TFC-35SD |
TFC-35R2 |
| |
|
HZ3 |
| INJECTION UNIT |
| Screw stroke |
mm |
140 |
| Screw Diameter |
mm |
26 |
28 |
32 |
36 |
| Theoretical Injection Volume |
cm3 |
74 |
86 |
113 |
143 |
| Injection Weight(PS) |
g |
69 |
80 |
105 |
133 |
| oz |
2.44 |
2.83 |
3.69 |
4.67 |
| Max.Injection Pressure |
Mpa |
178 |
153 |
117 |
93 |
| kgf/cm2 |
1812 |
1563 |
1196 |
945 |
| Injection Rate |
cm3/s |
62 |
72 |
94 |
119 |
| Injection Speed |
mm/s |
117 |
| Nozzle center height |
mm |
140±25 |
| Distance from nozzle to mold center |
mm |
60 |
| Screw Speed Rotation |
r.p.m |
10~280 |
| CLAMPING UNIT |
| Clamping Force |
KN(ton) |
343(35)/(45) |
| Clamping Stroke |
mm |
200 |
| Min.Mold Thickness |
mm |
175 |
| Max.Opening |
mm |
375 |
| (L*W)Max.Mould Size |
mm |
400*240 |
330*360 |
340*340 |
250*250 |
| (L*W)Platen Size |
mm |
420*240 |
350*380 |
730*360 |
Ф680 |
| Ejector Distance |
mm |
50 |
100 |
| Ejector Force |
KN(ton) |
31.3(3.2) |
| OTHERS |
| System Pressure |
Mpa(kgf/cm2) |
13.7(140) |
| Oil Tank Capacity |
L |
140 |
| Electric Power |
KW |
5.5 |
7.5 |
| Heater Power |
KW |
5.5 |
| Cooling water capacity |
L/min |
25 |
| Machine Dimensions |
L*W |
m |
2.4*0.9 |
2.6*0.9 |
2.5*1.4 |
2.8*1.1 |
| H |
m |
2.1 |
2.2 |
2.2 |
2.2 |
| Machine Weight |
ton |
2.8 |
2.9 |
3.1 |
3.5 |
Sepcifications:
Features:
1.Vertical direct compression locking mold, horizontal injection, inorganic column design, three sided open space, suitable for injection molding of medium-sized embedded parts.
2.The shooting seat is lifted and lowered, with adjustable forward and backward movement, making it easy to adjust the horizontal center of the mold and quickly and conveniently mount the mold.

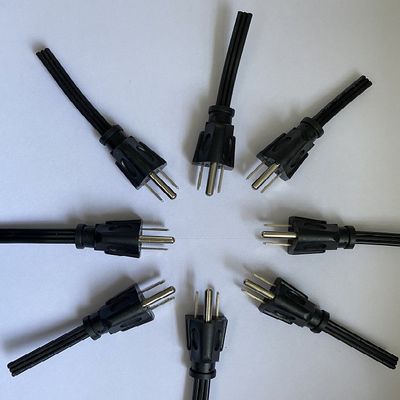

3.Horizontal shooting: suitable for making power cords, vertical shooting: automotive sealing strips;
4.The main customers include: Galanz, Gree, Minshi, and Great Wall Motors.
Applications:
Why choose us?
1. Best product quality and most competitive price.
2. Experienced technical personnel in production.
3. Customized design and production.
4. Excellent pre-sales and after-sales services.
FAQ
Q1: Do you test all goods before delivery?
Yes, we have 100% testing before delivery
Q2: What are your payment terms?
T/T 100% in advance
Q3: Can you provide OEM service?
We can provide OEM, ODM, services. It will depend on your requirements; your logo will be customized on our products.
Q4: Packaging and shipping?
The spool is plastic-covered inside and cartoned outside. Or according to your request.
Q5: How about your delivery time?
Generally speaking, it will take 20 to 45 days after receiving the advance payment. The specific delivery time depends on
Regarding your order and quantity.
